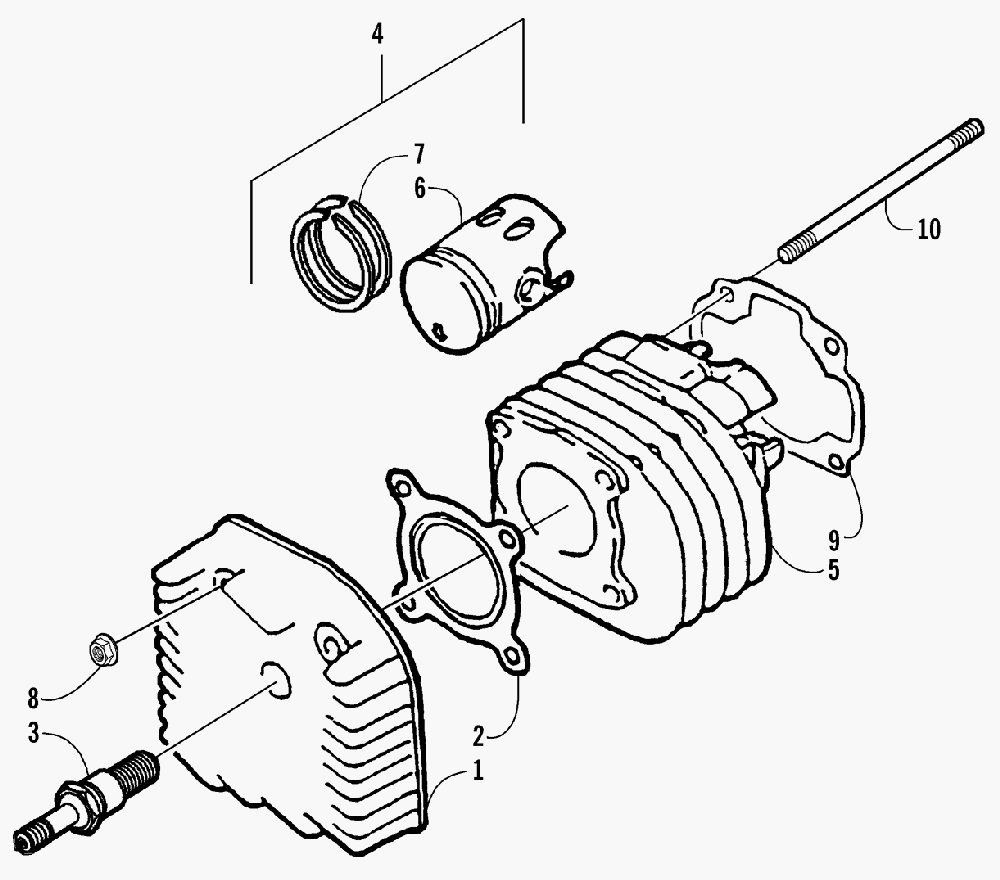

CYLINDER AND HEAD ASSEMBLY для Arctic Cat 90 Y-12 YOUTH (RED) [A2002ATB2BUSR] - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3301-017 CYLINDER HEAD
    CYLINDER HEAD
  • 2
    3301-018 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 3
    3301-446 PLUG, SPARK
    PLUG, SPARK
  • 4
    3301-019 CYLINDER AND PISTON ASSEMBLY (INC. 5-7)
    CYLINDER AND PISTON ASSEMBLY (INC. 5-7)
  • 5
    3301-015 ...CYLINDER
    ...CYLINDER
  • 6
    3301-022 ...PISTON
    ...PISTON
  • 7
    3301-021 ...RING, PISTON - SET
    ...RING, PISTON - SET
  • 8
    3301-329 NUT, FLANGE
    NUT, FLANGE
  • 9
    3301-016 GASKET, CYLINDER
    GASKET, CYLINDER
  • 10
    3301-294 BOLT, STUD
    BOLT, STUD
