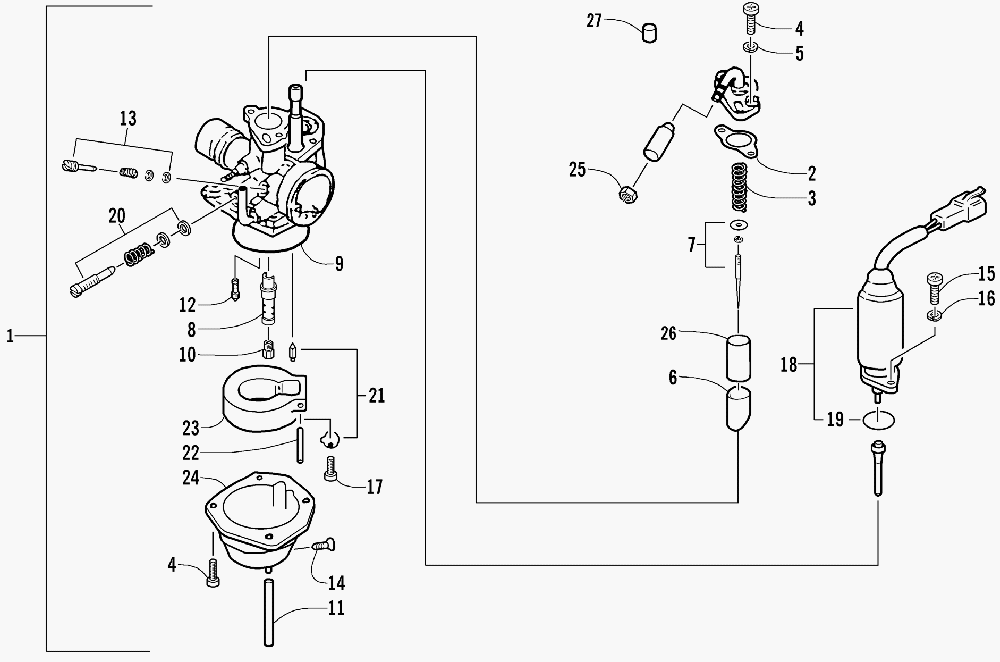

CARBURETOR ASSEMBLY для Arctic Cat 90 Y-12 YOUTH (RED) [A2002ATB2BUSR] - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3301-038 CARBURETOR ASSEMBLY (INC. 2-26)
    CARBURETOR ASSEMBLY (INC. 2-26)
  • 2
    3301-039 ...GASKET, CARBURETOR
    ...GASKET, CARBURETOR
  • 3
    3301-040 ...SPRING, THROTTLE VALVE
    ...SPRING, THROTTLE VALVE
  • 4
    3301-315 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 5
    3301-359 ...WASHER, SPRING
    ...WASHER, SPRING
  • 6
    3301-041 ...VALVE, THROTTLE
    ...VALVE, THROTTLE
  • 7
    3301-042 ...SET, JET NEEDLE
    ...SET, JET NEEDLE
  • 8
    3301-043 ...NEEDLE JET
    ...NEEDLE JET
  • 9
    3301-044 ...SEAL, FLOAT CHAMBER
    ...SEAL, FLOAT CHAMBER
  • 10
    3301-046 ...MAIN JET
    ...MAIN JET
  • 11
    3301-047 ...TUBE, OVERFLOW
    ...TUBE, OVERFLOW
  • 12
    3301-048 ...JET, PILOT
    ...JET, PILOT
  • 13
    3301-052 ...SCREW, AIR ADJUSTMENT
    ...SCREW, AIR ADJUSTMENT
  • 14
    3301-049 ...PLUG, DRAIN
    ...PLUG, DRAIN
  • 15
    3301-313 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 16
    3301-358 ...WASHER, SPRING
    ...WASHER, SPRING
  • 17
    3301-312 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 18
    3301-066 ...CHOKE ASSEMBLY - ELECTRIC (INC. 19)
    ...CHOKE ASSEMBLY - ELECTRIC (INC. 19)
  • 19
    3301-299 ......RING, OIL
    ......RING, OIL
  • 20
    3301-051 ...SCREW, THROTTLE
    ...SCREW, THROTTLE
  • 21
    3301-053 ...NEEDLE VALVE ASSEMBLY
    ...NEEDLE VALVE ASSEMBLY
  • 22
    3301-055 ...PIN, FLOAT
    ...PIN, FLOAT
  • 23
    3301-054 ...FLOAT
    ...FLOAT
  • 24
    3301-045 ...CHAMBER, FLOAT
    ...CHAMBER, FLOAT
  • 25
    3301-050 ...NUT, CABLE ADJUST
    ...NUT, CABLE ADJUST
  • 26
    3301-056 ...RPM LIMITER, CARBURETOR
    ...RPM LIMITER, CARBURETOR
  • 27
    3301-169 PLUG, PURGE HOLE
    PLUG, PURGE HOLE
