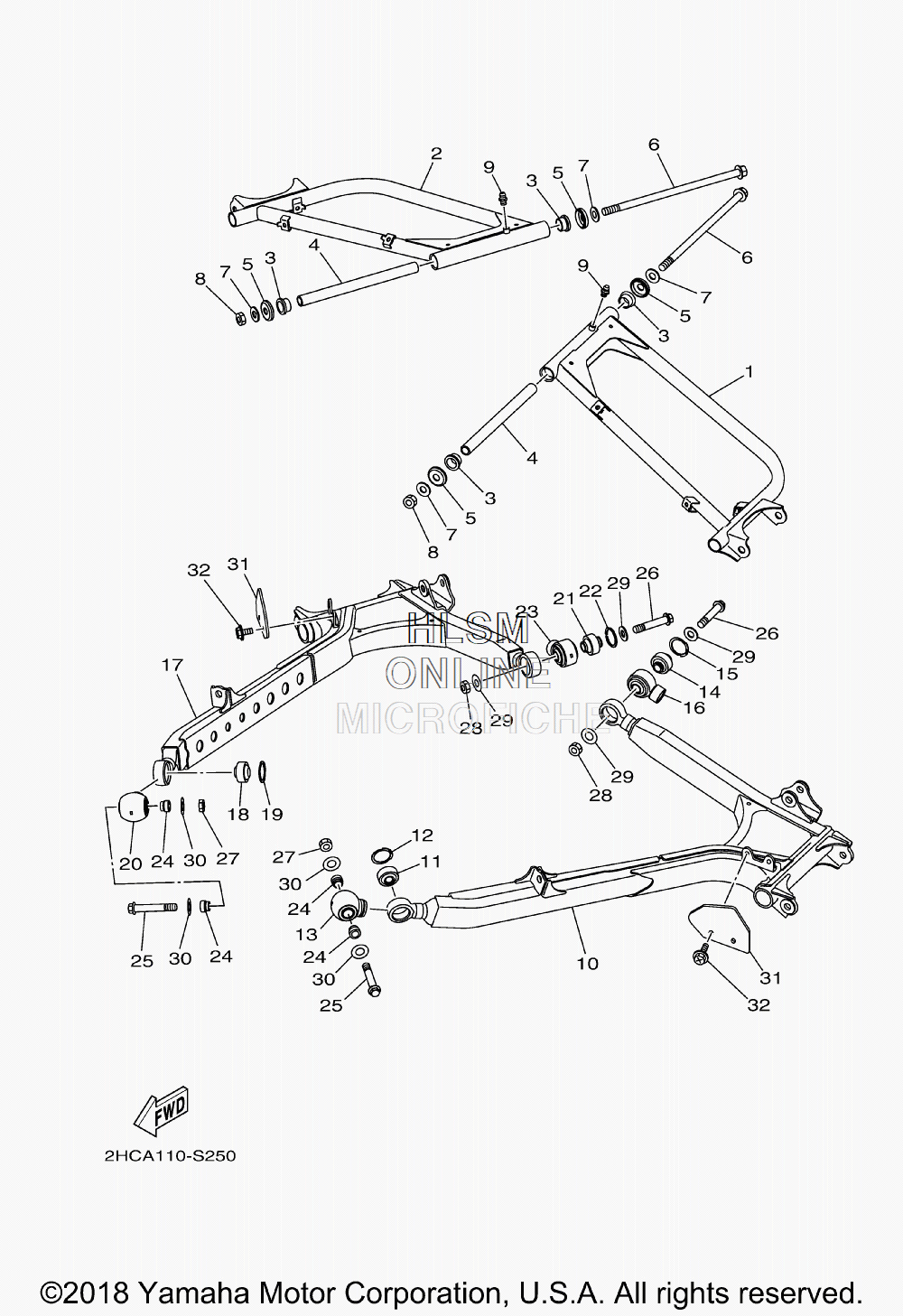

SUSPENSION - REAR ARM для Yamaha YXZ1000R EPS SS - 2019 года выпуска`
-
№АртикулНазвание
-
12HC-F2104-00-00 REAR UPPER ARM COMP. 1REAR UPPER ARM COMP. 1
-
22HC-F2105-00-00 REAR UPPER ARM COMP. 2REAR UPPER ARM COMP. 2
-
390381-18003-00 BUSH, SOLIDBUSH, SOLID
-
490387-12062-00 COLLARCOLLAR
-
51XD-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
690105-12098-00 BOLT, FLANGEBOLT, FLANGE
-
790201-12045-00 WASHER, PLATEWASHER, PLATE
-
890185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
993700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
102HC-F2106-50-00 REAR LOWER ARM COMP. 1REAR LOWER ARM COMP. 1
-
112HC-23549-00-00 BALL JOINT 1BALL JOINT 1
-
1299009-35500-00 CIRCLIPCIRCLIP
-
132HC-23527-01-00 SEAL, DUST 1SEAL, DUST 1
-
142HC-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
1599009-35500-00 CIRCLIPCIRCLIP
-
162HC-23528-00-00 SEAL, DUST 2SEAL, DUST 2
-
172HC-F2107-50-00 REAR LOWER ARM COMP. 2REAR LOWER ARM COMP. 2
-
182HC-23549-00-00 BALL JOINT 1BALL JOINT 1
-
1999009-35500-00 CIRCLIPCIRCLIP
-
202HC-23527-01-00 SEAL, DUST 1SEAL, DUST 1
-
212HC-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2299009-35500-00 CIRCLIPCIRCLIP
-
232HC-23528-00-00 SEAL, DUST 2SEAL, DUST 2
-
242HC-23754-00-00 COLLAR 1COLLAR 1
-
2590105-12095-00 BOLT, FLANGEBOLT, FLANGE
-
2690105-12100-00 BOLT, FLANGEBOLT, FLANGE
-
2790185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2990201-12045-00 WASHER, PLATEWASHER, PLATE
-
3090201-12045-00 WASHER, PLATEWASHER, PLATE
-
312HC-F2128-00-00 COVER, THRUST 1COVER, THRUST 1
-
3290119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
