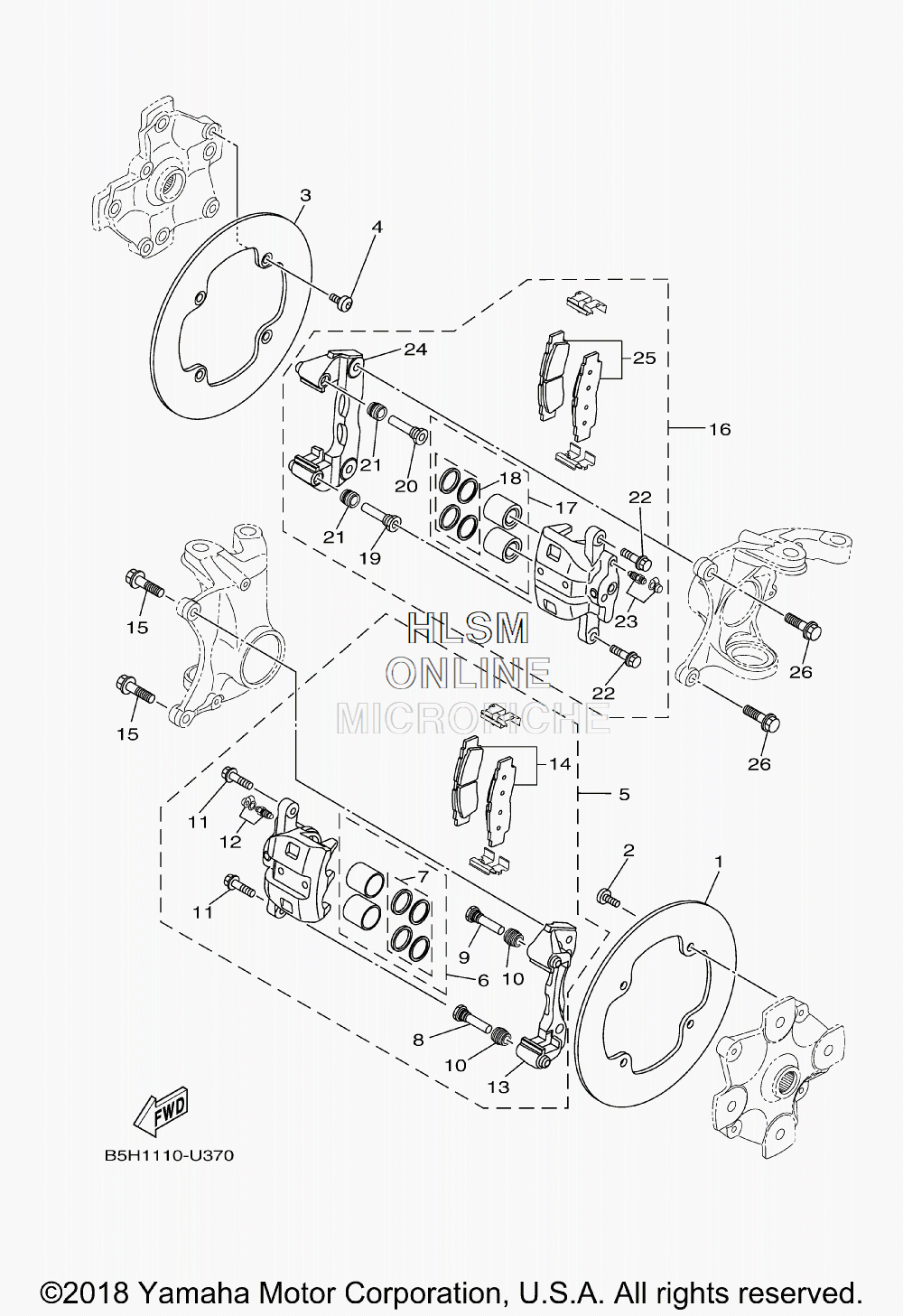

BRAKE - FRONT CALIPER для Yamaha YXZ1000R EPS SS - 2019 года выпуска`
-
№АртикулНазвание
-
1B5H-F582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08253-00 BOLTBOLT
-
3B5H-F582T-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
490109-08253-00 BOLTBOLT
-
5B5H-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
6B5H-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
7B5H-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
82HC-25926-00-00 ...BOLT...BOLT
-
92HC-25926-10-00 ...BOLT...BOLT
-
102HC-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
112HC-25833-00-00 ...BOLT, FITTING...BOLT, FITTING
-
121UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
132HC-25819-00-00 ...BRACKET, CALIPER...BRACKET, CALIPER
-
14B5H-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
1590105-10405-00 BOLT, FLANGEBOLT, FLANGE
-
16B5H-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
17B5H-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
18B5H-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
192HC-25926-00-00 ...BOLT...BOLT
-
202HC-25926-10-00 ...BOLT...BOLT
-
212HC-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
222HC-25833-00-00 ...BOLT, FITTING...BOLT, FITTING
-
231UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
242HC-25819-00-00 ...BRACKET, CALIPER...BRACKET, CALIPER
-
25B5H-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
2690105-10405-00 BOLT, FLANGEBOLT, FLANGE
