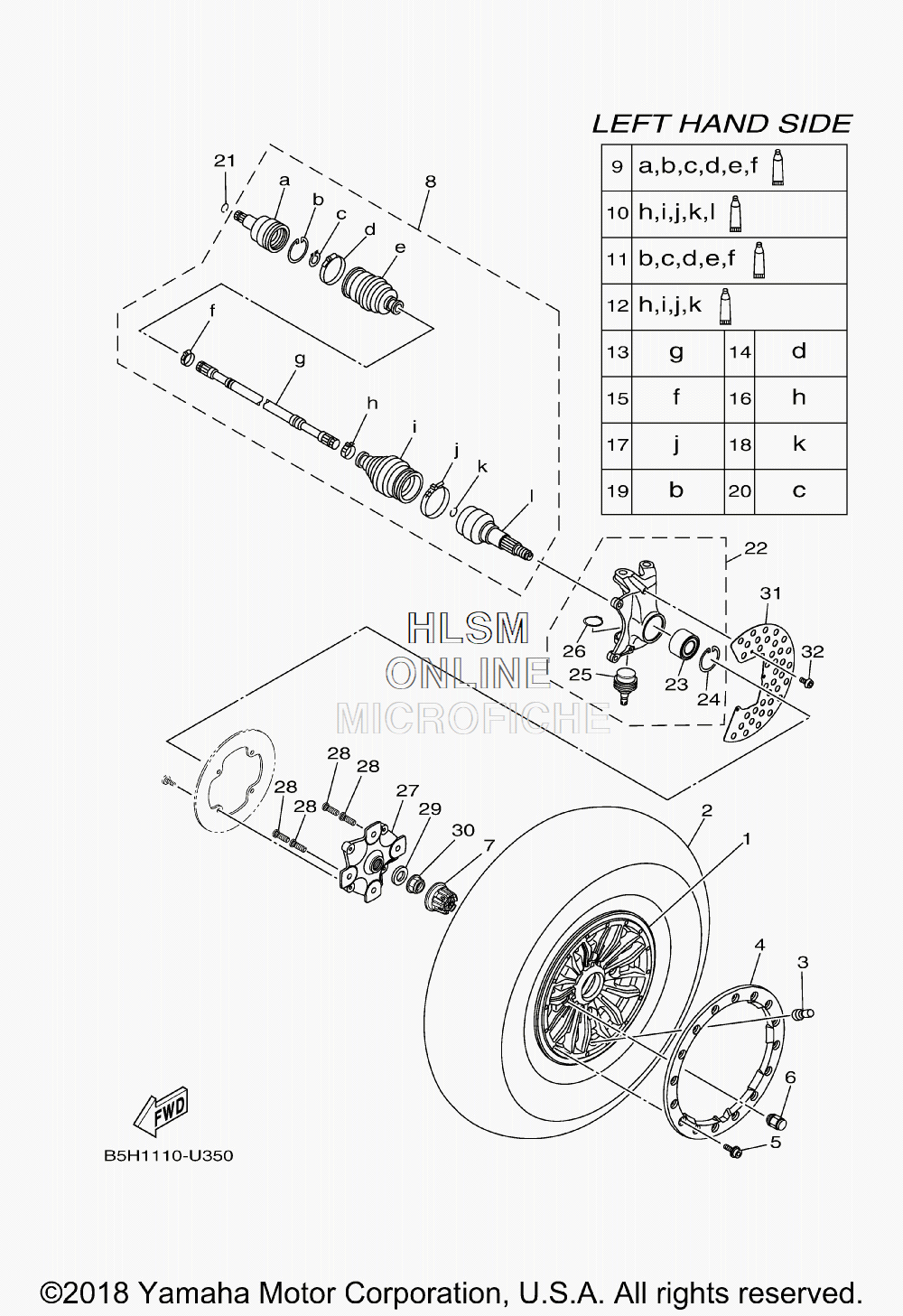

WHEEL - FRONT LEFT W/ AXLE ASSY для Yamaha YXZ1000R EPS SPECIAL EDITION - 2019 года выпуска`
-
№АртикулНазвание
-
1B5H-F5168-10-00 CAST WHEEL, FRONTCAST WHEEL, FRONT
-
294109-14814-00 TIRE (29X9.00R14 M917 8PR TL)TIRE (29X9.00R14 M917 8PR TL)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
4B5H-F5185-01-00 RING 1RING 1
-
590105-088H6-00 BOLT, FLANGEBOLT, FLANGE
-
690176-12800-00 NUT, CROWNNUT, CROWN
-
72HC-F512A-00-00 CAP, WHEELCAP, WHEEL
-
82HC-2518F-00-00 DRIVE SHAFT ASSYDRIVE SHAFT ASSY
-
92HC-2510J-00-00 ...DOUBLE OFF SET JOINT...DOUBLE OFF SET JOINT
-
102HC-2510F-00-00 ...BALL JOINT SET...BALL JOINT SET
-
112HC-2510H-00-00 ...BOOT SET (DOUBLE OFFSET JOINT)...BOOT SET (DOUBLE OFFSET JOINT)
-
122HC-2510G-00-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
132HC-2518E-00-00 ...SHAFT...SHAFT
-
142HC-2511H-00-00 ...BOOT BAND (DOUBLE OFFSET JOINT)...BOOT BAND (DOUBLE OFFSET JOINT)
-
152HC-2511G-00-00 ...BOOT BAND (DOUBLE OFFSET JOINT)...BOOT BAND (DOUBLE OFFSET JOINT)
-
162HC-2510U-00-00 ...BOOT BAND (BALL JOINT)...BOOT BAND (BALL JOINT)
-
172HC-2512G-00-00 ...BOOT BAND (BALL JOINT)...BOOT BAND (BALL JOINT)
-
182HC-2512H-00-00 ...CIRCLIP...CIRCLIP
-
193B4-25182-00-00 ...CIRCLIP...CIRCLIP
-
203B4-2512J-00-00 ...SNAP RING...SNAP RING
-
2193450-22119-00 CIRCLIPCIRCLIP
-
22B5H-F3501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2393305-00604-00 ...BEARING...BEARING
-
2499009-62500-00 ...CIRCLIP...CIRCLIP
-
252HC-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2693410-42096-00 ...CIRCLIP...CIRCLIP
-
27B5H-F5111-00-00 HUB, FRONTHUB, FRONT
-
2890114-12005-00 BOLT, SERRATIONBOLT, SERRATION
-
2990201-25023-00 WASHER, PLATEWASHER, PLATE
-
3090179-24006-00 NUTNUT
-
312HC-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
3290111-06096-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
