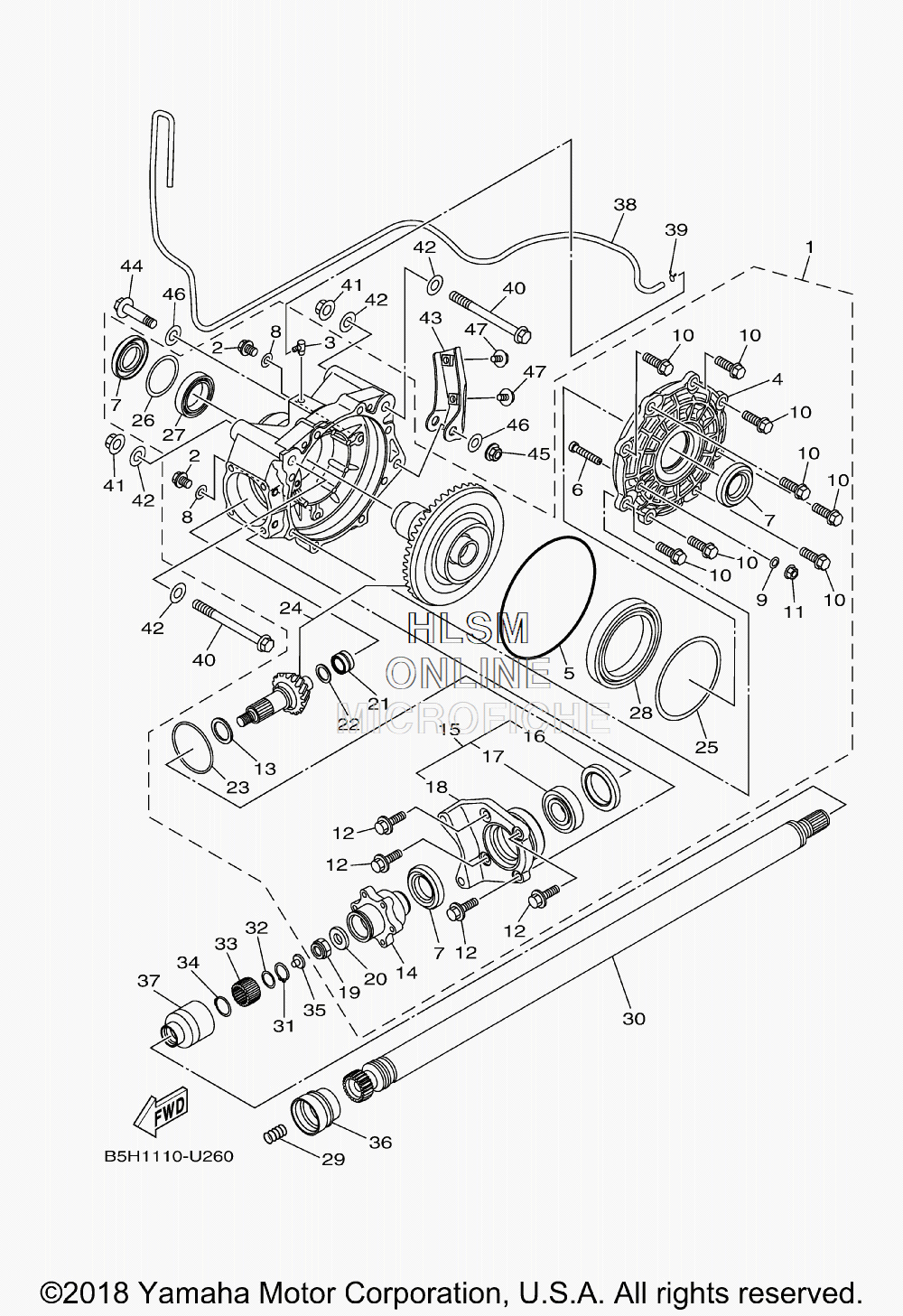

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha YXZ1000R EPS SPECIAL EDITION - 2019 года выпуска`
-
№АртикулНазвание
-
1B5H-G6101-00-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
21XD-E2228-00-00 ...BOLT...BOLT
-
31CT-E5371-00-00 ...BREATHER...BREATHER
-
42HC-G6152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
52HC-G613A-00-00 ...O-RING...O-RING
-
62HC-G6156-00-00 ...STOPPER, RING GEAR...STOPPER, RING GEAR
-
71XD-E511B-00-00 ...OIL SEAL...OIL SEAL
-
81CT-E1195-00-00 ...GASKET...GASKET
-
91CT-G6819-00-00 ...GASKET...GASKET
-
102HC-E2157-00-00 ...BOLT...BOLT
-
111CT-E3275-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
121XD-G2478-00-00 ...BOLT, LOCK PLATE...BOLT, LOCK PLATE
-
131XD-G7531-00-00 ...WHEEL, SPROCKET 1...WHEEL, SPROCKET 1
-
142HC-G6126-00-00 ...COUPLING...COUPLING
-
15B5H-G6331-00-00 ...HOUSING ASSY...HOUSING ASSY
-
162HC-G4583-00-00 ......NUT......NUT
-
1793306-30574-00 ......BEARING......BEARING
-
18B5H-G2134-00-00 ......COVER......COVER
-
192HC-G7579-00-00 ...NUT...NUT
-
202HC-G5677-00-00 ...WASHER...WASHER
-
21B5H-E1428-00-00 ...BEARING 1...BEARING 1
-
22B5H-F2149-00-00 ...WASHER...WASHER
-
231XD-E1614-00-00 ...OIL RING, PISTON...OIL RING, PISTON
-
24B5H-G61A0-00-00 ...RING GEAR SET...RING GEAR SET
-
252HC-G5567-00-00 ...SHIM...SHIM
-
261XD-G5577-00-00 ...SHIM...SHIM
-
271XD-E142B-00-00 ...BEARING 4...BEARING 4
-
28B5H-E1429-00-00 ...BEARING 2...BEARING 2
-
2990501-20361-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
30B5H-46172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3199009-22400-00 CIRCLIPCIRCLIP
-
3290201-23016-00 WASHER, PLATEWASHER, PLATE
-
332HC-46126-00-00 COUPLINGCOUPLING
-
3493410-26067-00 CIRCLIPCIRCLIP
-
355KM-46559-00-00 DAMPERDAMPER
-
362HC-46137-00-00 SEAL 2SEAL 2
-
37B5H-46136-00-00 SEAL 1SEAL 1
-
3890445-074F6-00 HOSE (L1300)HOSE (L1300)
-
3990467-07029-00 CLIPCLIP
-
4095812-12130-00 BOLT, FLANGEBOLT, FLANGE
-
4190185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4292902-12200-00 WASHERWASHER
-
432HC-F1981-02-00 BRKT., REAR AXLEBRKT., REAR AXLE
-
4490105-12082-00 BOLT, FLANGEBOLT, FLANGE
-
4590185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4692902-12200-00 WASHERWASHER
-
4795812-10016-00 BOLT, FLANGEBOLT, FLANGE
