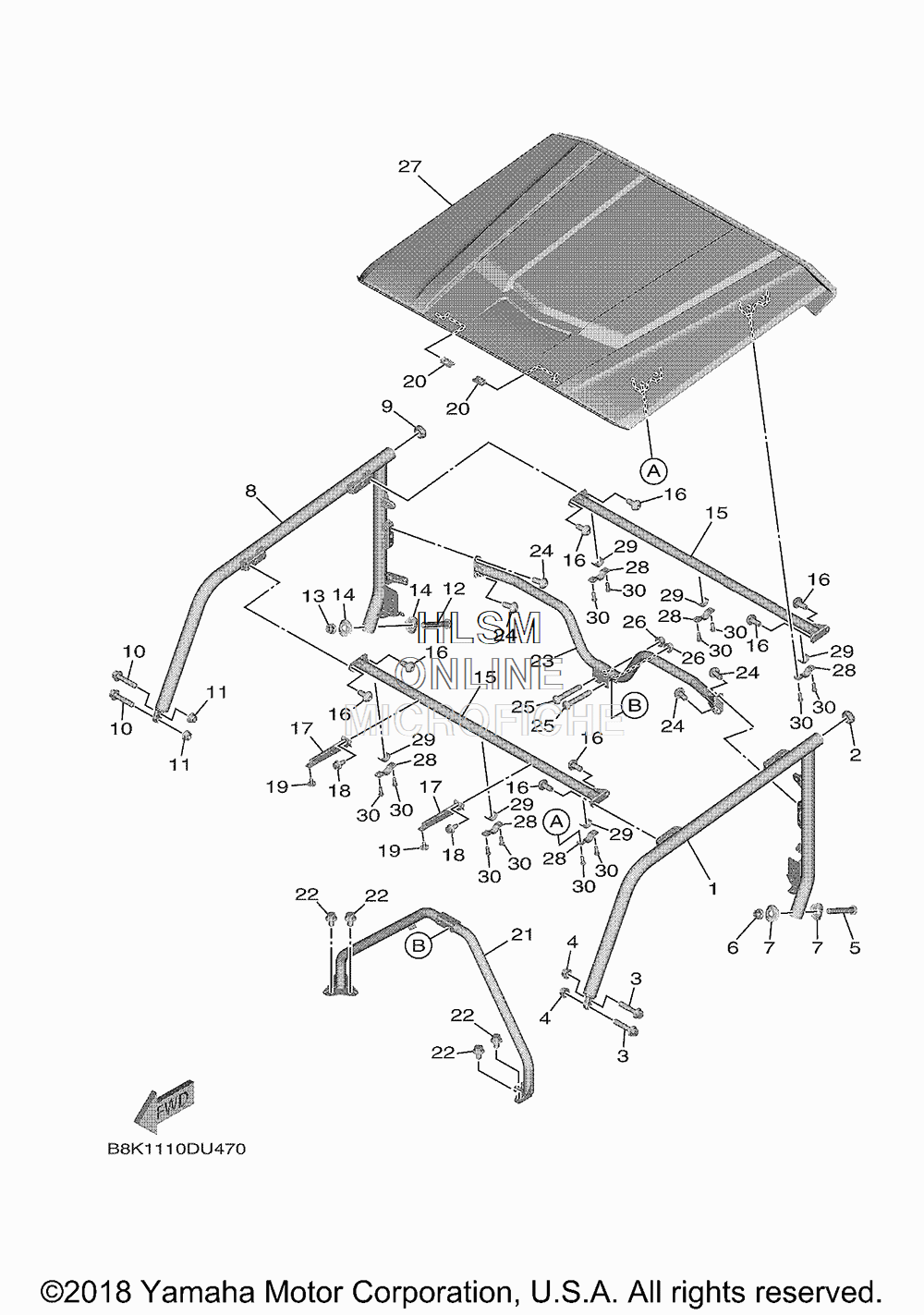

GUARD - ROOF для Yamaha WOLVERINE X2 R-SPEC EPS - 2019 года выпуска
-
№АртикулНазвание
-
1B8K-K831A-00-00 SUPPORT, ROOF 3SUPPORT, ROOF 3
-
2B8K-F2417-00-00 PLUGPLUG
-
395812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
490185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
592012-10070-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
690185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
71XD-K7526-00-00 WASHER 2WASHER 2
-
8B8K-K831E-00-00 SUPPORT, ROOF 4SUPPORT, ROOF 4
-
9B8K-F2417-00-00 PLUGPLUG
-
1095812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
1190185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1292012-10070-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1390185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
141XD-K7526-00-00 WASHER 2WASHER 2
-
15BG4-K8392-01-00 MEMBER, ROOF FRAMEMEMBER, ROOF FRAME
-
1690111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
17B8K-F2567-00-00 SUPPORT 1SUPPORT 1
-
1890105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
1990111-06083-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2090183-060A6-00 NUT, SPRINGNUT, SPRING
-
21B8K-K830B-00-00 ROOF SUPPORT ASSY 2ROOF SUPPORT ASSY 2
-
2295812-10016-00 BOLT, FLANGEBOLT, FLANGE
-
23B8K-K831M-00-00 REINFORCEMENT, ROOF SUPPORT 2REINFORCEMENT, ROOF SUPPORT 2
-
2490111-10802-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2592012-10060-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2690185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
27B8K-K8314-00-00 COVER, SUN ROOFCOVER, SUN ROOF
-
282HC-K8366-01-00 CLAMP, SUPPORTCLAMP, SUPPORT
-
2990520-02842-00 DAMPER, PLATEDAMPER, PLATE
-
3090169-06801-00 TAPPING SCREWTAPPING SCREW
