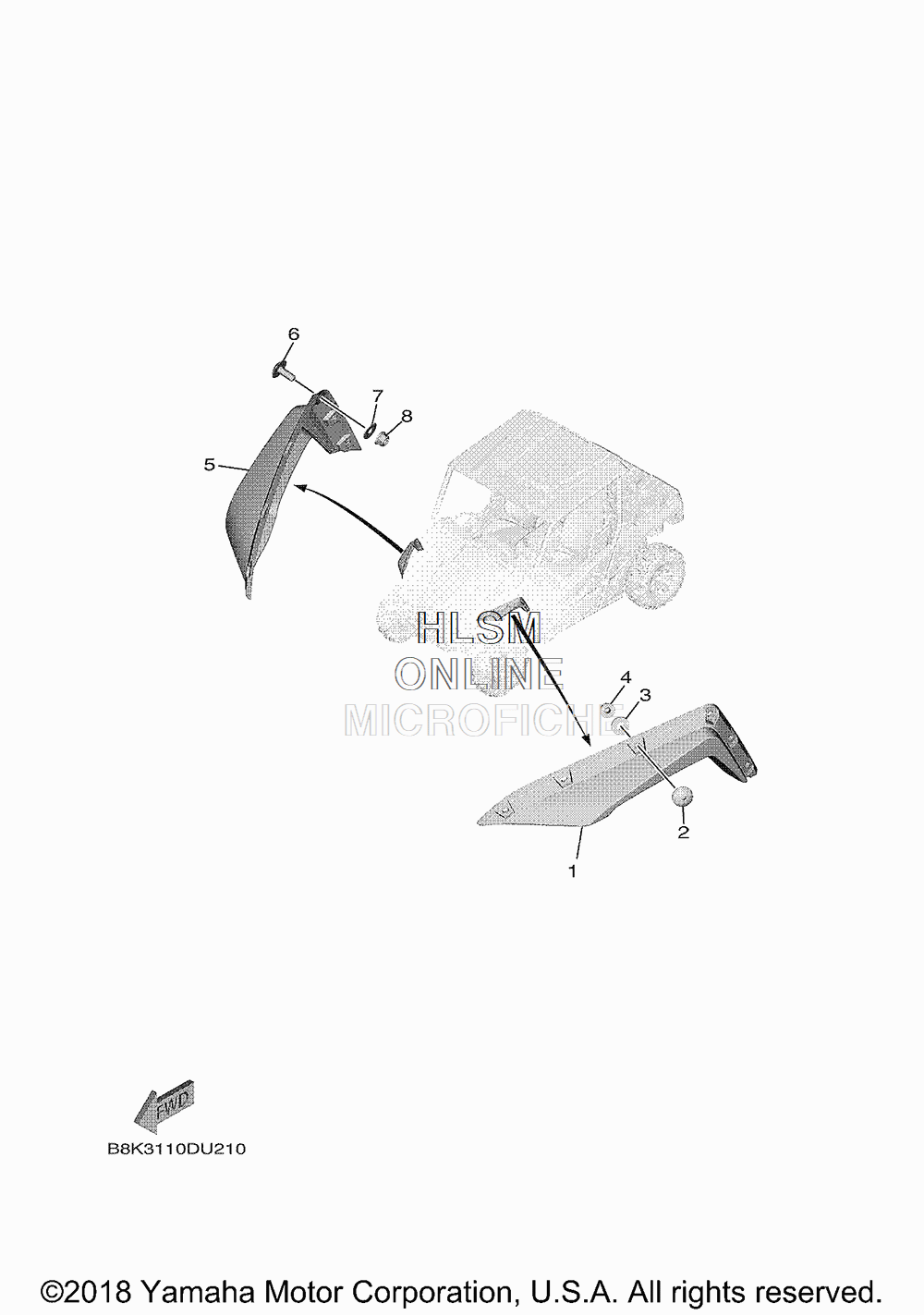

FENDERS - FRONT AND REAR для Yamaha WOLVERINE X2 R-SPEC EPS - 2019 года выпуска`
-
№АртикулНазвание
-
1BG4-F1551-00-00 FENDER, OVERFENDER, OVER
-
290110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
390201-06801-00 WASHER, PLATEWASHER, PLATE
-
495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5BG4-F1555-00-00 FENDER, OVER 2FENDER, OVER 2
-
690110-06090-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
790201-06801-00 WASHER, PLATEWASHER, PLATE
-
895602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
