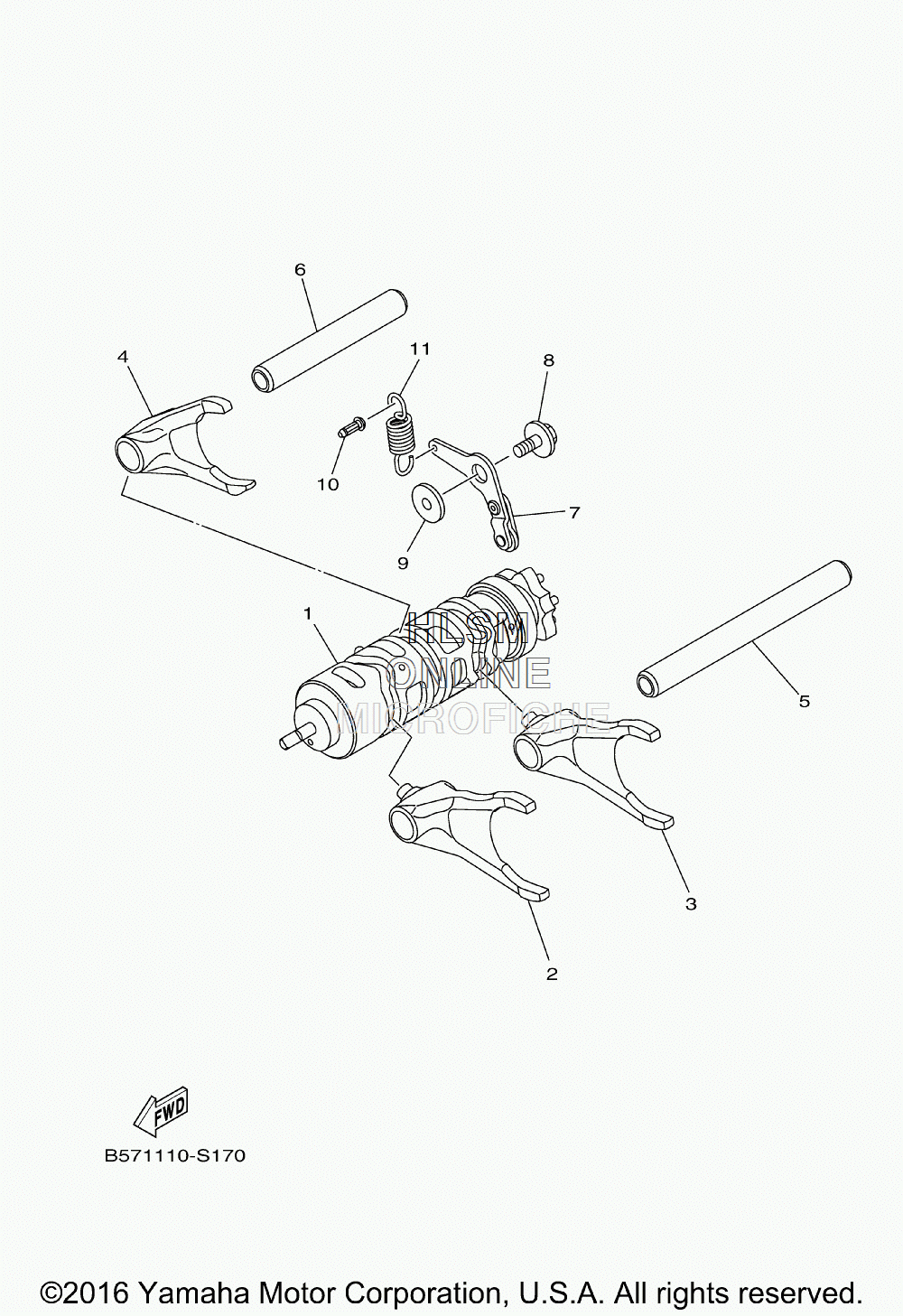

SHIFT CAM W/ FORK для Yamaha YXZ1000R EPS SS - 2017 года выпуска`
-
№АртикулНазвание
-
1B57-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
2B57-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
32HC-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
42HC-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
53D8-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
63D8-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
72HC-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
890159-06027-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
94NX-18175-00-00 SPACERSPACER
-
10132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
112HC-18144-00-00 HANGER, SPRINGHANGER, SPRING
