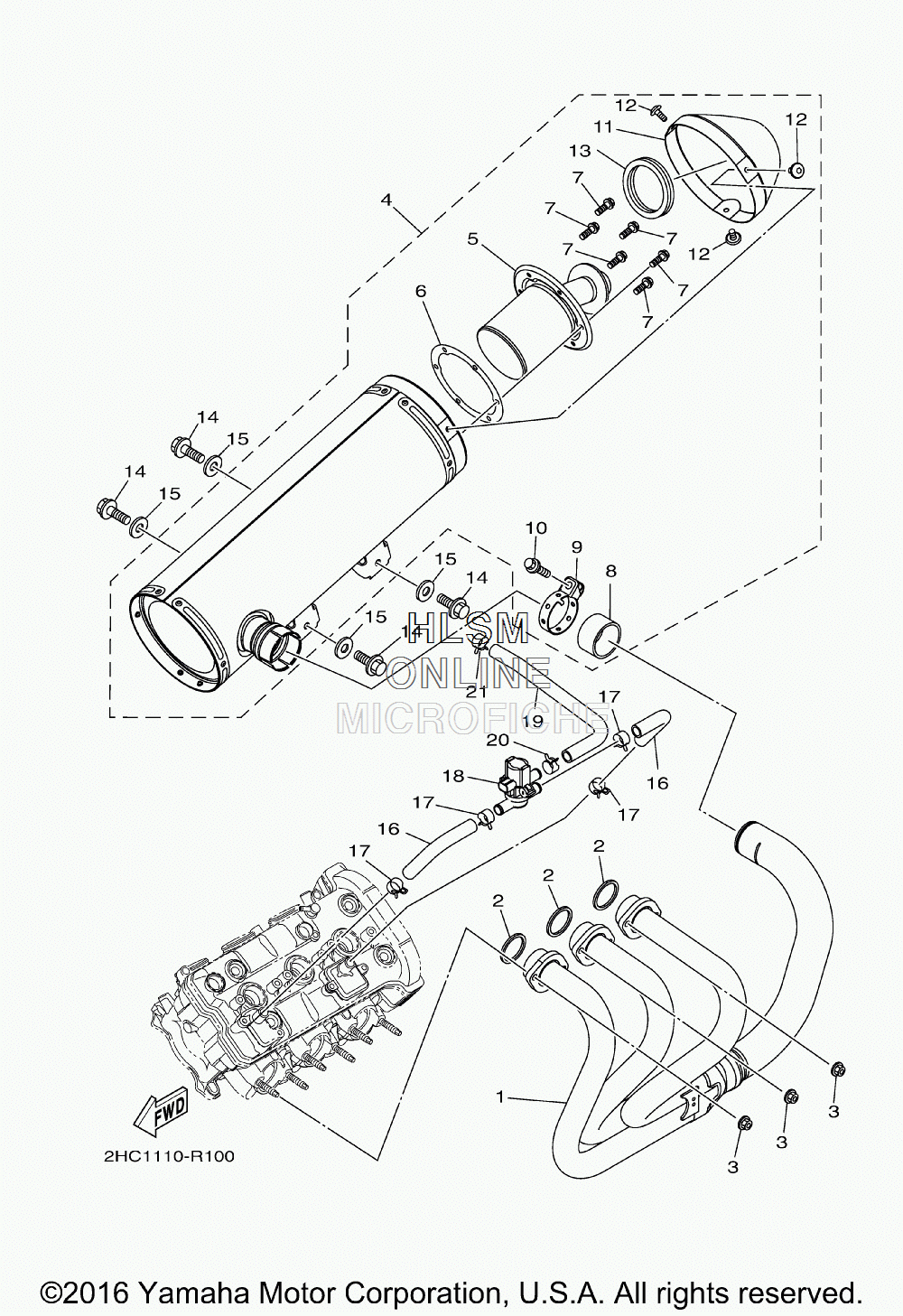

EXHAUST для Yamaha YXZ1000R EPS SS - 2017 года выпуска`
-
№АртикулНазвание
-
12HC-14602-00-00 EXHAUST PIPE COMP.EXHAUST PIPE COMP.
-
24FM-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
390179-08410-00 NUTNUT
-
42HC-14710-00-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
52HC-14780-09-00 ...SPARK ARRESTER ASSY...SPARK ARRESTER ASSY
-
62HC-14755-00-00 ...GASKET, SILENCER...GASKET, SILENCER
-
795022-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
81SL-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
91SL-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
1095022-08035-00 ...BOLT, FLANGE...BOLT, FLANGE
-
112HC-14799-00-00 ...CAP...CAP
-
1290149-06298-00 ...SCREW...SCREW
-
132HC-1475P-00-00 ...SEAT...SEAT
-
1490101-10038-00 BOLTBOLT
-
1590201-10034-00 WASHER, PLATEWASHER, PLATE
-
162HC-E4881-00-00 HOSE, BEND 1HOSE, BEND 1
-
1790467-17089-00 CLIPCLIP
-
182HC-14840-00-00 AIR CUT VALVE ASSYAIR CUT VALVE ASSY
-
192HC-E4882-00-00 HOSE, BEND 2HOSE, BEND 2
-
2090467-17089-00 CLIPCLIP
-
2190467-20086-00 CLIPCLIP
