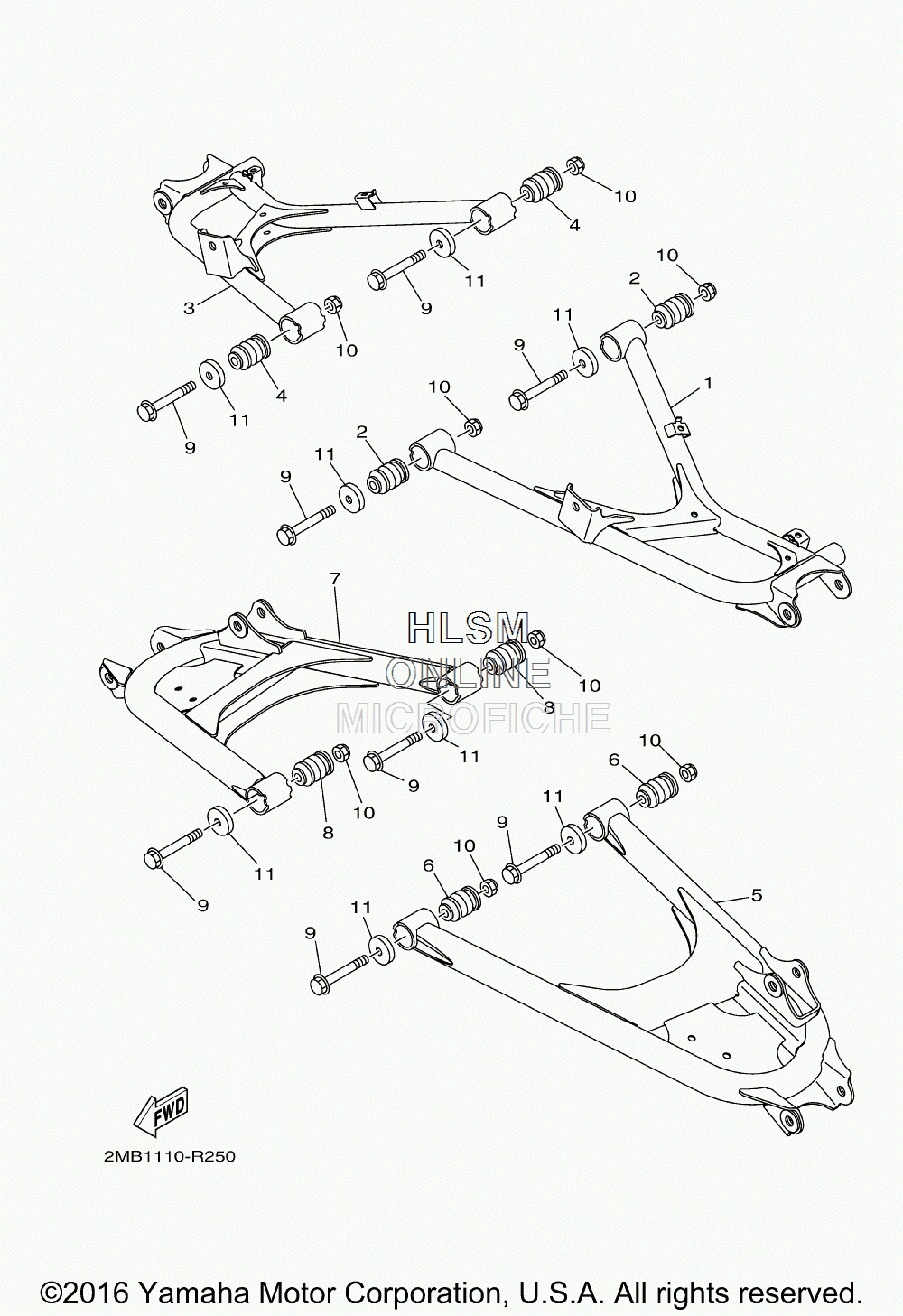

SUSPENSION - REAR ARM для Yamaha WOLVERINE - 2017 года выпуска`
-
№АртикулНазвание
-
12MB-F2171-00-00 ARM, REAR 1ARM, REAR 1
-
21HP-F3526-00-00 BUSHBUSH
-
32MB-F2172-00-00 ARM, REAR 2ARM, REAR 2
-
41HP-F3526-00-00 BUSHBUSH
-
52MB-F217M-00-00 ARM 1ARM 1
-
61HP-F3526-00-00 BUSHBUSH
-
72MB-F217N-00-00 ARM 2ARM 2
-
81HP-F3526-00-00 BUSHBUSH
-
990105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
1090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
115KM-22149-10-00 WASHERWASHER
