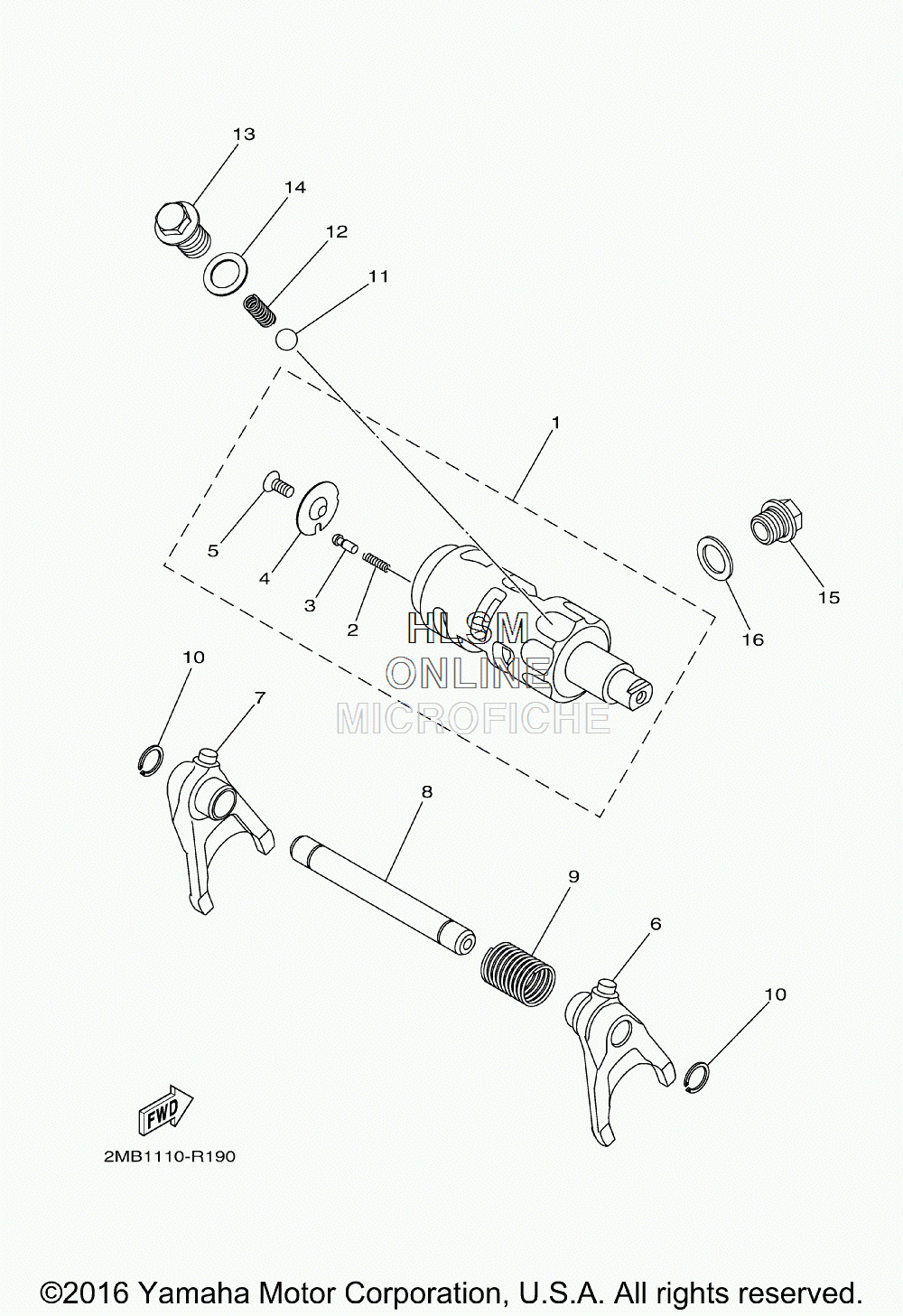

SHIFT CAM W/ FORK для Yamaha WOLVERINE - 2017 года выпуска`
-
№АртикулНазвание
-
12MB-E8540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
22MB-E8222-00-00 ...SPRING 2...SPRING 2
-
32MB-E8542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
42MB-E8566-00-00 ...PLATE, SIDE 2...PLATE, SIDE 2
-
52MB-E8563-00-00 ...SCREW, STOPPER PLATE...SCREW, STOPPER PLATE
-
62MB-E8511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
72MB-E8512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
82MB-E8531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
92MB-E8123-00-00 SPRINGSPRING
-
102MB-E5597-00-00 CIRCLIP 2CIRCLIP 2
-
112MB-E8218-00-00 BALLBALL
-
122MB-E8143-00-00 SPRINGSPRING
-
132MB-E8119-00-00 BOLT, SHIFTBOLT, SHIFT
-
142MB-E8363-00-00 GASKETGASKET
-
152MB-E8149-00-00 PLUG, BLINDPLUG, BLIND
-
162MB-E1198-00-00 GASKETGASKET
