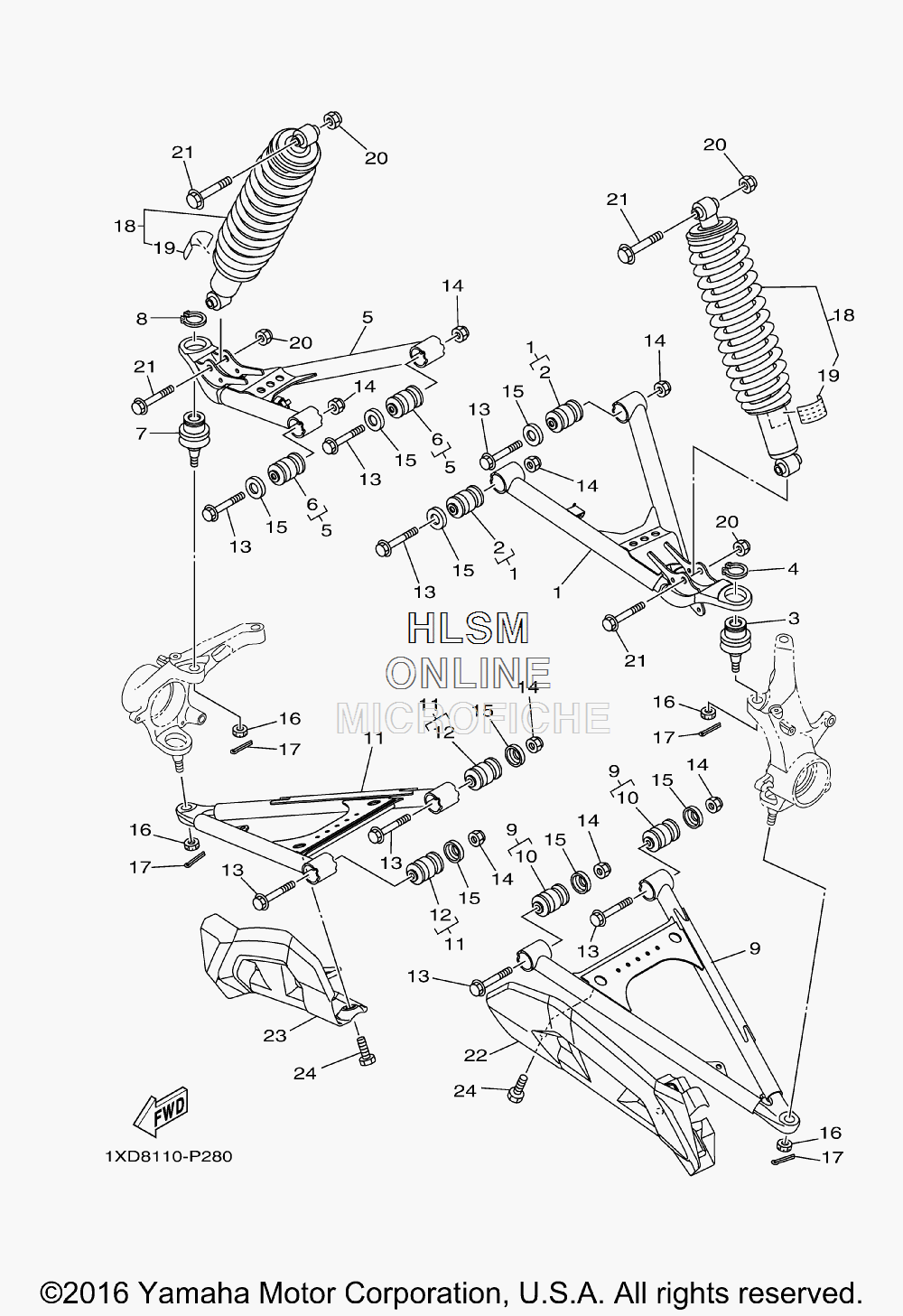

SUSPENSION - FRONT WHEEL для Yamaha VIKING - 2017 года выпуска`
-
№АртикулНазвание
-
11XD-F3540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
21HP-F3526-00-00 ...BUSH...BUSH
-
31XD-23579-00-00 BALL JOINT 2BALL JOINT 2
-
499009-32400-00 CIRCLIPCIRCLIP
-
51XD-F3550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
61HP-F3526-00-00 ...BUSH...BUSH
-
71XD-23579-00-00 BALL JOINT 2BALL JOINT 2
-
899009-32400-00 CIRCLIPCIRCLIP
-
92PG-F3570-00-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
101HP-F3526-00-00 ...BUSH...BUSH
-
112PG-F3580-00-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
121HP-F3526-00-00 ...BUSH...BUSH
-
1390105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
1490185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
155KM-22149-10-00 WASHERWASHER
-
1690171-12001-00 NUT, CASTLENUT, CASTLE
-
1791402-25020-00 PIN, COTTERPIN, COTTER
-
181XD-F3390-00-00 SHOCK ABSORBER ASSY 2SHOCK ABSORBER ASSY 2
-
191HP-F2259-01-00 ...LABEL, WARNING...LABEL, WARNING
-
2090185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190105-10283-00 BOLT, FLANGEBOLT, FLANGE
-
221XD-F3123-00-00 COVER, UNDER 1COVER, UNDER 1
-
231XD-F3133-00-00 COVER, LOWER 2COVER, LOWER 2
-
2490109-06220-00 BOLTBOLT
