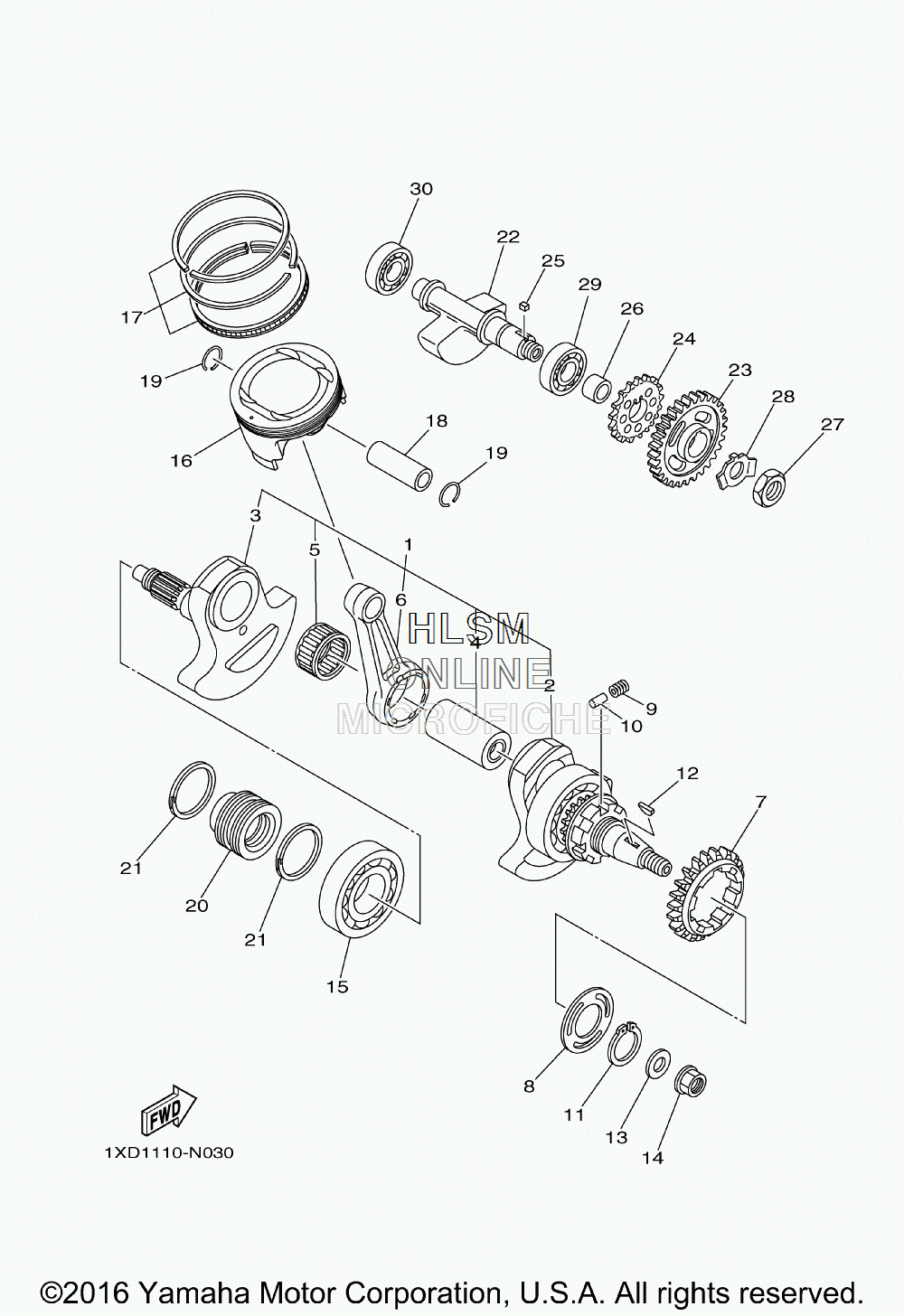

CRANKSHAFT - PISTON для Yamaha VIKING - 2017 года выпуска`
-
№АртикулНазвание
-
12BG-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
23B4-11401-09-00 ...CRANK SUB ASSY 1...CRANK SUB ASSY 1
-
33B4-11402-09-00 ...CRANK SUB ASSY 2...CRANK SUB ASSY 2
-
45VK-11681-01-00 ...PIN, CRANK 1...PIN, CRANK 1
-
593310-84037-00 ...BEARING...BEARING
-
62BG-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
71HP-11536-00-00 GEAR, DRIVE (44T)GEAR, DRIVE (44T)
-
85KM-11565-00-00 WASHER, BEARING COVERWASHER, BEARING COVER
-
990501-220A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1093606-09002-00 PIN, DOWELPIN, DOWEL
-
1199009-35400-00 CIRCLIPCIRCLIP
-
1290280-05001-00 KEY, WOODRUFFKEY, WOODRUFF
-
1390201-16013-00 WASHER, PLATEWASHER, PLATE
-
1490179-16004-00 NUTNUT
-
1593306-30810-00 BEARINGBEARING
-
162BG-11631-00-00 PISTON (STD)PISTON (STD)
-
171S3-11603-10-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
185VK-11633-00-00 PIN, PISTONPIN, PISTON
-
1993450-24154-00 CIRCLIPCIRCLIP
-
203B4-16181-00-00 SPACER 1SPACER 1
-
212BG-11447-00-00 SEAL, CRANKSEAL, CRANK
-
222BG-11454-00-00 WEIGHT 1WEIGHT 1
-
231HP-11531-10-00 GEAR, BALANCE WEIGHTGEAR, BALANCE WEIGHT
-
241HP-13354-00-00 SPROCKET, DRIVESPROCKET, DRIVE
-
2590282-05013-00 KEY, STRAIGHTKEY, STRAIGHT
-
2690387-24001-00 COLLARCOLLAR
-
2790170-18003-00 NUTNUT
-
2890215-18001-00 WASHER, LOCKWASHER, LOCK
-
2993306-30534-00 BEARINGBEARING
-
3093306-30438-00 BEARINGBEARING
