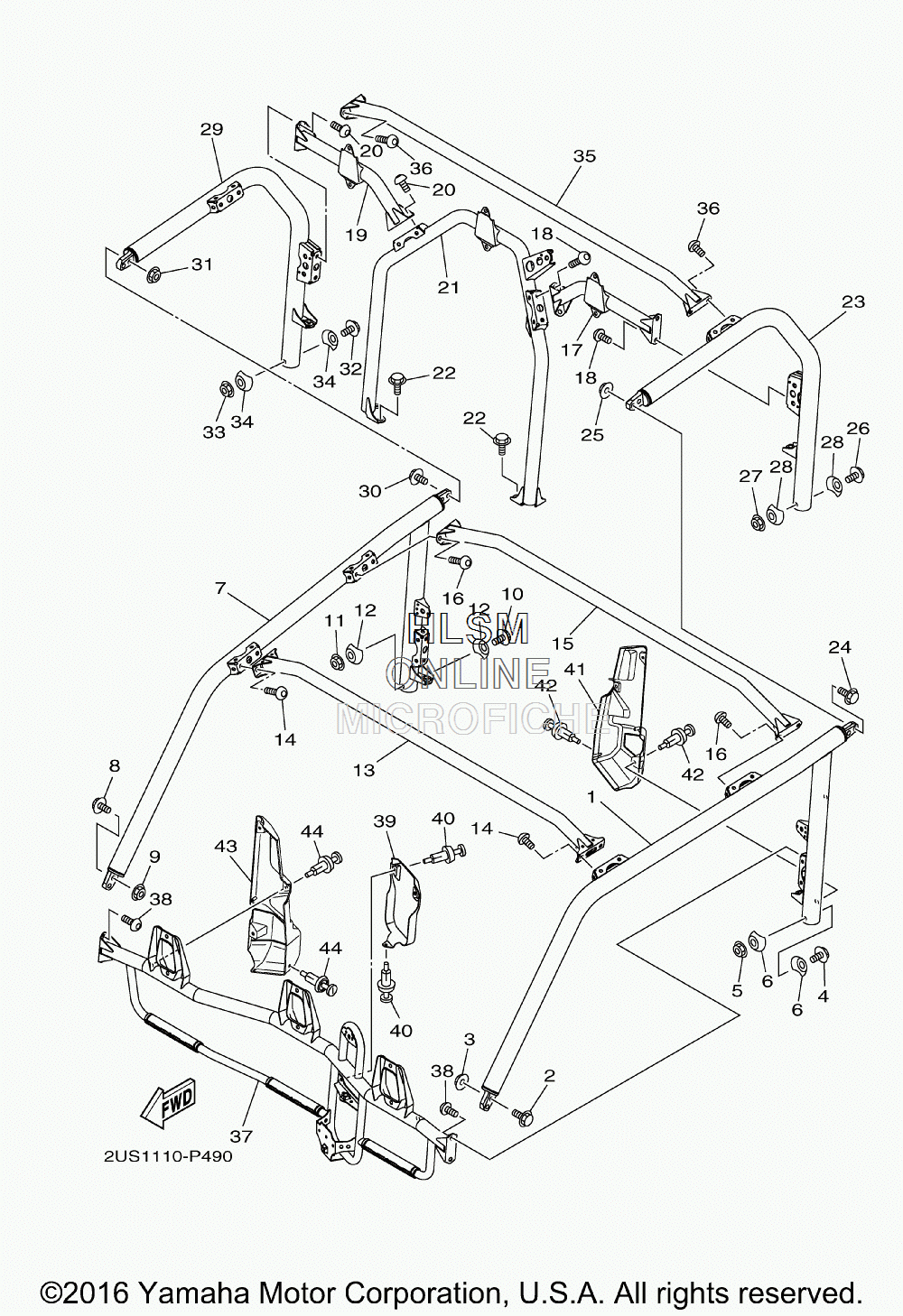

GUARD - ROOF для Yamaha VIKING VI EPS HUNTER - 2017 года выпуска`
-
№АртикулНазвание
-
12PG-K831A-01-00 SUPPORT, ROOF 3SUPPORT, ROOF 3
-
295812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
390185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
492012-10070-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
590185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
61XD-K7526-00-00 WASHER 2WASHER 2
-
72PG-K831E-01-00 SUPPORT, ROOF 4SUPPORT, ROOF 4
-
895812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
990185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1092012-10070-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1190185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
121XD-K7526-00-00 WASHER 2WASHER 2
-
132PG-K8392-00-00 MEMBER, ROOF FRAMEMEMBER, ROOF FRAME
-
1490111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
152PG-K8393-00-00 MEMBER, ROOF FRAME 2MEMBER, ROOF FRAME 2
-
1690111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
172PG-K830E-00-00 SUNROOF PIPE ASSY 1SUNROOF PIPE ASSY 1
-
1890111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
192PG-K830F-00-00 SUNROOF PIPE ASSY 2SUNROOF PIPE ASSY 2
-
2090111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
212PG-K830A-00-00 ROOF SUPPORT ASSY 1ROOF SUPPORT ASSY 1
-
2295812-10016-00 BOLT, FLANGEBOLT, FLANGE
-
232PG-K833M-00-00 RRAME, SUNROOF 1RRAME, SUNROOF 1
-
2495812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
2590185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2692012-10070-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2790185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
281XD-K7526-00-00 WASHER 2WASHER 2
-
292PG-K833R-00-00 FRAME, SUNROOF 2FRAME, SUNROOF 2
-
3095812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
3190185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3292012-10070-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3390185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
341XD-K7526-00-00 WASHER 2WASHER 2
-
352PG-K8394-00-00 MEMBER, ROOF FRAME 3MEMBER, ROOF FRAME 3
-
3690111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
372PG-K830C-00-00 ROOF SUPPORT ASSY 3ROOF SUPPORT ASSY 3
-
3890111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
392PG-K8284-01-00 COVER, 4COVER, 4
-
4090269-07803-00 RIVETRIVET
-
412PG-K813F-01-00 COVER, SIDE PILLAR (LEFT HAND)COVER, SIDE PILLAR (LEFT HAND)
-
4290269-07803-00 RIVETRIVET
-
432PG-K813G-01-00 COVER, SIDE PILLAR (RIGHT HAND)COVER, SIDE PILLAR (RIGHT HAND)
-
4490269-07803-00 RIVETRIVET
