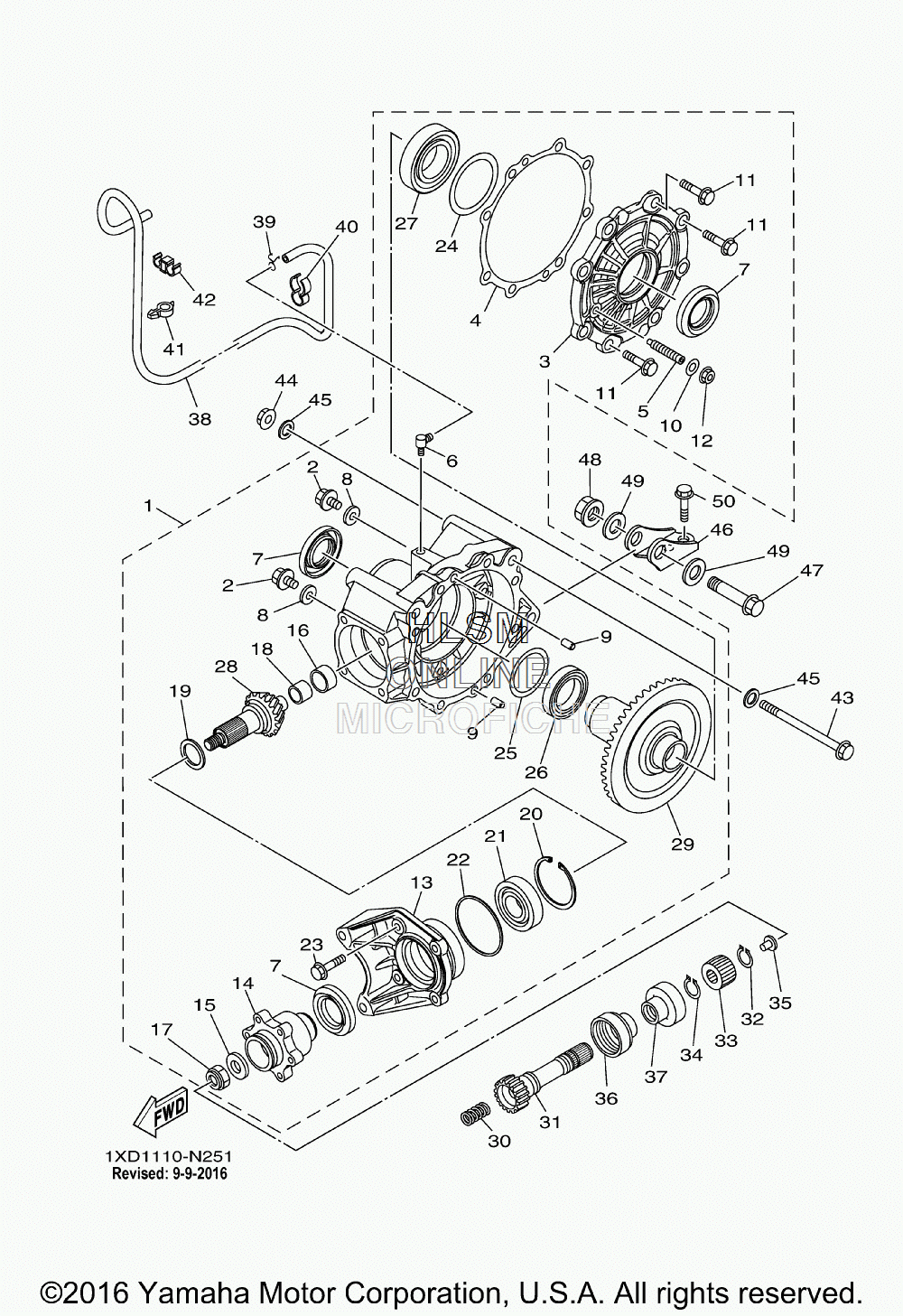

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha VIKING VI EPS HUNTER - 2017 года выпуска`
-
№АртикулНазвание
-
11XD-G6101-10-00 REAR AXLE GEAR CASE ASSYREAR AXLE GEAR CASE ASSY
-
21XD-E2228-00-00 ...BOLT...BOLT
-
31XD-G6152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
41XD-G631A-00-00 ...GSKT., CASE...GSKT., CASE
-
51CT-G6156-00-00 ...STOPPER, RING GEAR...STOPPER, RING GEAR
-
61CT-E5371-00-00 ...BREATHER...BREATHER
-
71XD-E511B-00-00 ...OIL SEAL...OIL SEAL
-
81CT-E1195-00-00 ...GASKET...GASKET
-
91CT-E3362-00-00 ...PIN, DOWEL 1...PIN, DOWEL 1
-
101CT-G6819-00-00 ...GASKET...GASKET
-
111XD-E2157-10-00 ...BOLT...BOLT
-
121CT-E3275-00-00 ...NUT, ADJUSTING...NUT, ADJUSTING
-
131XD-G2134-00-00 ...COVER...COVER
-
141XD-G6126-00-00 ...COUPLING...COUPLING
-
151CT-E1557-00-00 ...WASHER 1...WASHER 1
-
161XD-E1428-00-00 ...BEARING 1...BEARING 1
-
171CT-E6377-00-00 ...NUT, LOCK...NUT, LOCK
-
181XD-G5319-00-00 ...CLIP...CLIP
-
191XD-G7531-00-00 ...WHEEL, SPROCKET 1...WHEEL, SPROCKET 1
-
201XD-E1486-00-00 ...CLIP...CLIP
-
211XD-E142A-00-00 ...BEARING...BEARING
-
221XD-E1614-00-00 ...OIL RING, PISTON...OIL RING, PISTON
-
231XD-G2478-00-00 ...BOLT, LOCK PLATE...BOLT, LOCK PLATE
-
241XD-G5567-00-00 ...SHIM...SHIM
-
251XD-G5577-00-00 ...SHIM...SHIM
-
261XD-E142B-00-00 ...BEARING 4...BEARING 4
-
271XD-E1429-00-00 ...BEARING 2...BEARING 2
-
281XD-G6121-00-00 ...GEAR, DRIVE PINION...GEAR, DRIVE PINION
-
291XD-G6110-00-00 ...RING GEAR COMP....RING GEAR COMP.
-
3090501-20361-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
311XD-G6172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3299009-19400-00 CIRCLIPCIRCLIP
-
335KM-46126-00-00 COUPLINGCOUPLING
-
3493410-22039-00 CIRCLIPCIRCLIP
-
355KM-46559-00-00 DAMPERDAMPER
-
365KM-46137-00-00 SEAL 2SEAL 2
-
375KM-46136-00-00 SEAL 1SEAL 1
-
3890445-07032-00 HOSE (L1920)HOSE (L1920)
-
3990467-07029-00 CLIPCLIP
-
4090464-15065-00 CLAMPCLAMP
-
4190464-10833-00 CLAMPCLAMP
-
4290464-09013-00 CLAMPCLAMP
-
4395812-12130-00 BOLT, FLANGEBOLT, FLANGE
-
4490185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4592902-12200-00 WASHERWASHER
-
461XD-F1981-00-00 BRKT., RR. AXLEBRKT., RR. AXLE
-
4790105-12082-00 BOLT, FLANGEBOLT, FLANGE
-
4890185-12002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4992902-12200-00 WASHERWASHER
-
5095812-08016-00 BOLT, FLANGEBOLT, FLANGE
