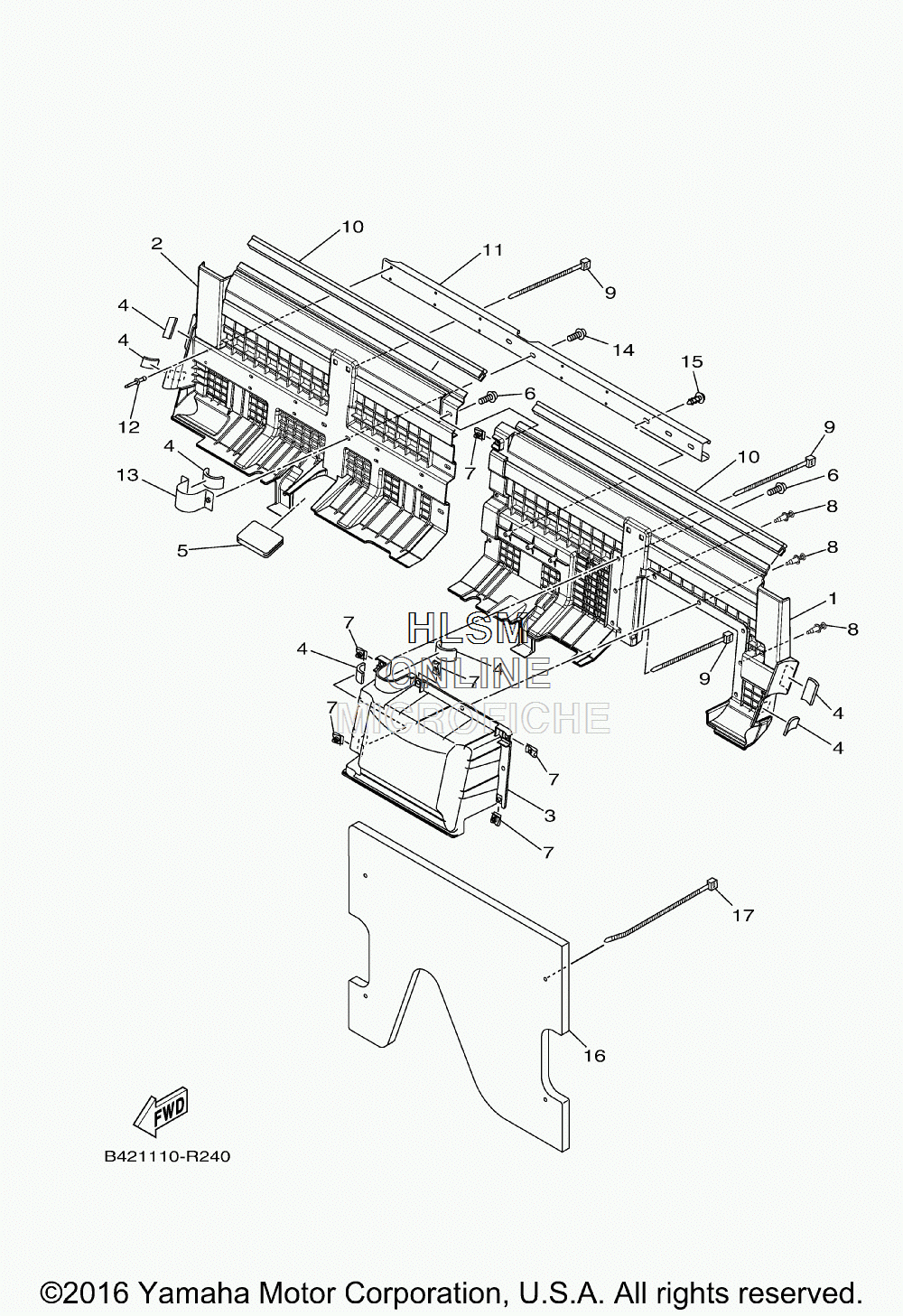

SIDE COVER 3 для Yamaha VIKING HUNTER - 2017 года выпуска`
-
№АртикулНазвание
-
1B42-F191B-00-00 PLATE 1PLATE 1
-
2B42-F191C-00-00 PLATE 2PLATE 2
-
3B42-F198F-00-00 COVER 1COVER 1
-
45UG-K7588-00-00 DAMPERDAMPER
-
5B42-F1719-00-00 GROMMETGROMMET
-
690119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790183-060A6-00 NUT, SPRINGNUT, SPRING
-
890269-07803-00 RIVETRIVET
-
990464-48800-00 CLAMPCLAMP
-
10B42-F1732-00-00 SEAL 1SEAL 1
-
11B42-F175G-00-00 REINF.REINF.
-
1290267-409U3-00 RIVET, BLINDRIVET, BLIND
-
13B42-F172K-00-00 BRACKET 1BRACKET 1
-
1490119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1590167-06800-00 SCREW, TAPPINGSCREW, TAPPING
-
16B42-2174A-01-00 INSULATOR, SIDE COVERINSULATOR, SIDE COVER
-
1790464-76800-00 CLAMPCLAMP
