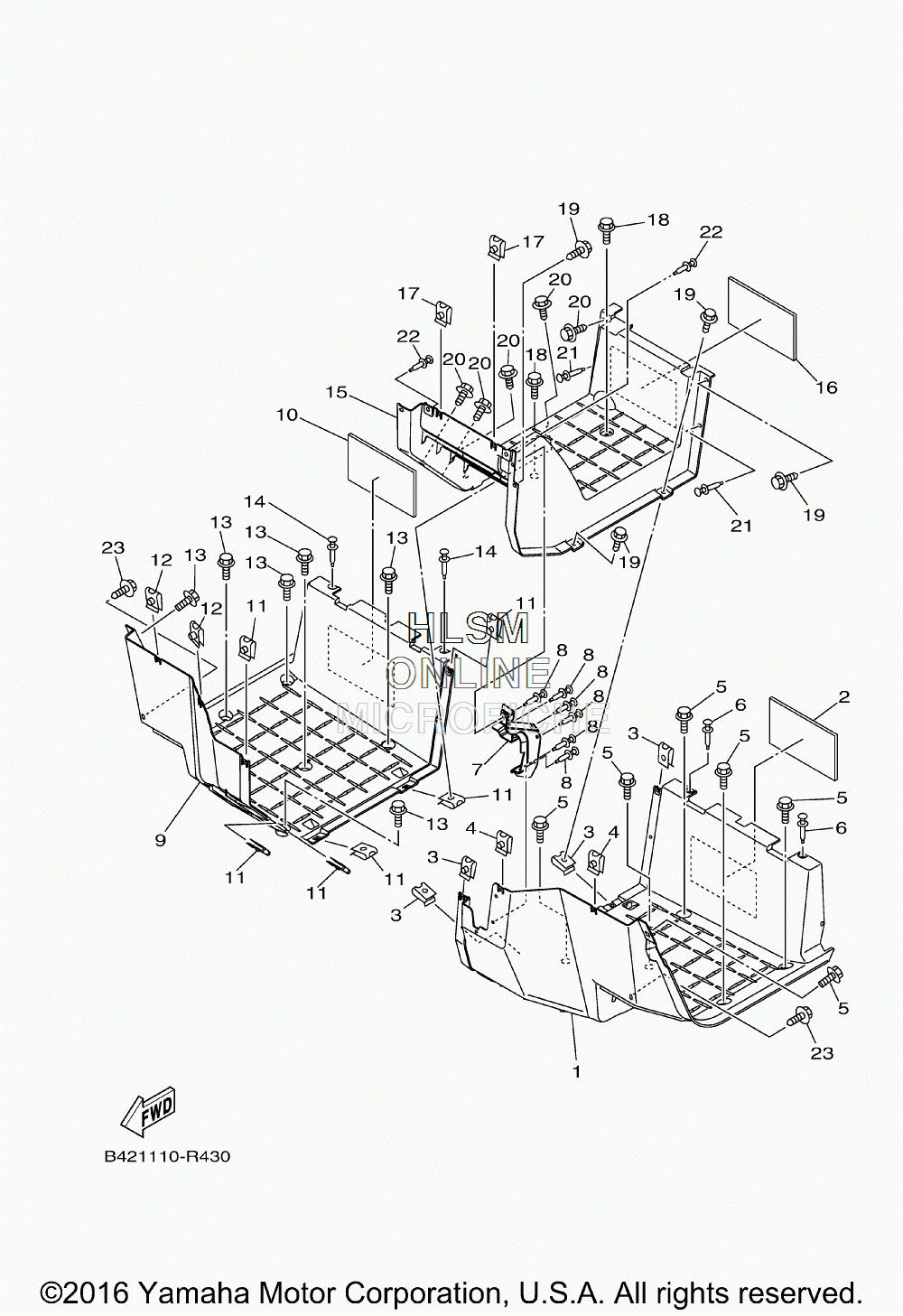

FOOTREST W/ BRAKE PEDAL для Yamaha VIKING HUNTER - 2017 года выпуска`
-
№АртикулНазвание
-
11XD-F7411-00-00 FOOTREST 1FOOTREST 1
-
2B42-2174X-00-00 DAMPERDAMPER
-
390183-060A6-00 NUT, SPRINGNUT, SPRING
-
490183-060A6-00 NUT, SPRINGNUT, SPRING
-
5JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
690269-07803-00 RIVETRIVET
-
71XD-F7286-00-00 COVER, DUSTCOVER, DUST
-
890269-07803-00 RIVETRIVET
-
91XD-F7421-00-00 FOOTREST 2FOOTREST 2
-
10B42-2174X-00-00 DAMPERDAMPER
-
1190183-060A6-00 NUT, SPRINGNUT, SPRING
-
1290183-060A6-00 NUT, SPRINGNUT, SPRING
-
13JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
1490269-07803-00 RIVETRIVET
-
151XD-F7413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
16B42-2174X-00-00 DAMPERDAMPER
-
1790183-060A6-00 NUT, SPRINGNUT, SPRING
-
18JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
1990119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2090119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2190269-07803-00 RIVETRIVET
-
2290269-07803-00 RIVETRIVET
-
2390119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
