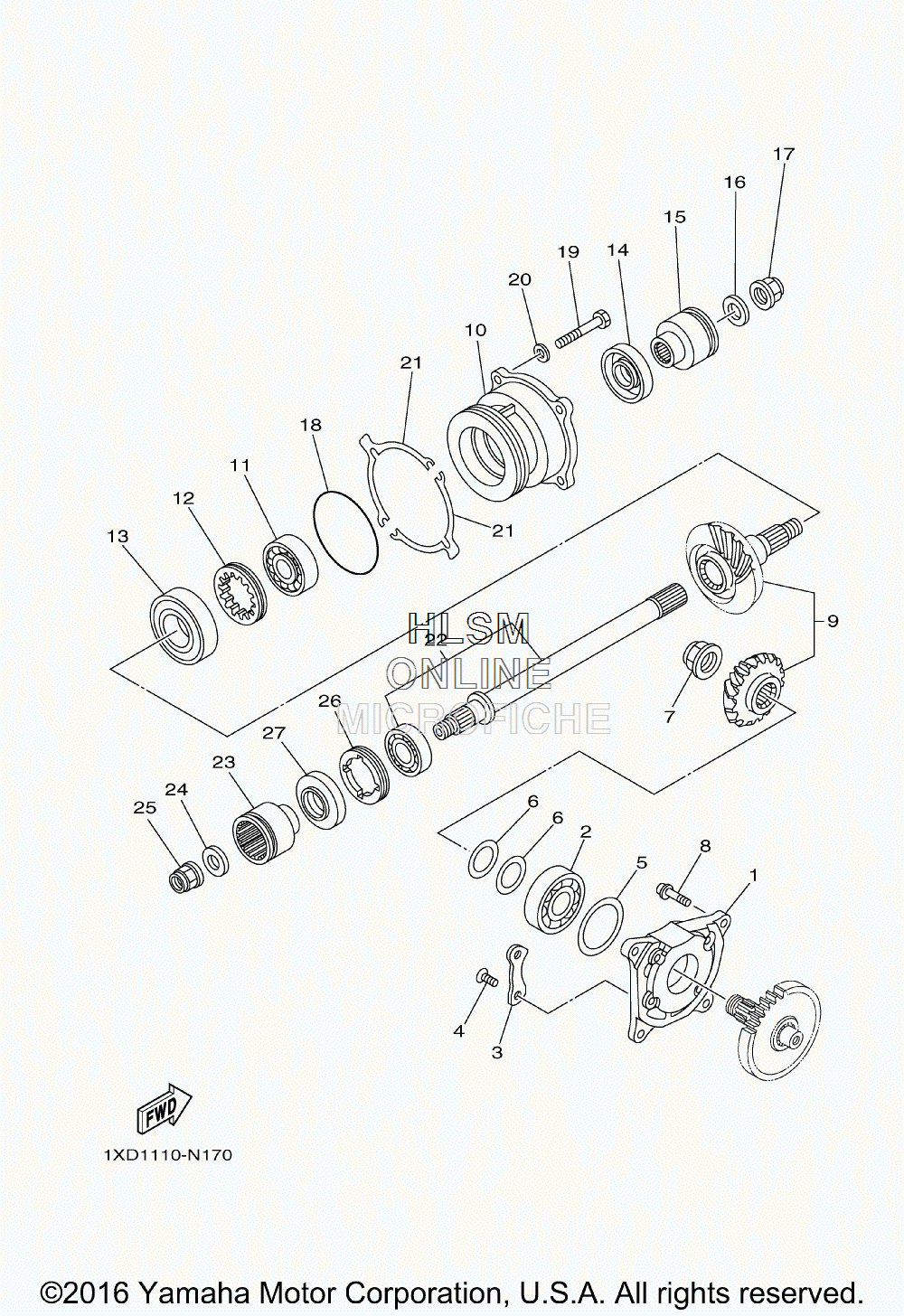

MIDDLE DRIVE GEAR для Yamaha VIKING EPS HUNTER - 2017 года выпуска`
-
№АртикулНазвание
-
15B4-17521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
293306-30584-00 BEARINGBEARING
-
311H-15383-02-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
490149-08013-00 SCREWSCREW
-
590201-46M28-00 WASHER, PLATEWASHER, PLATE
-
65KM-17531-50-00 SHIM, PINION (0.5T) (OPT)SHIM, PINION (0.5T) (OPT)
-
65KM-17531-60-00 SHIM, PINION (0.55T) (OPT)SHIM, PINION (0.55T) (OPT)
-
65KM-17531-70-00 SHIM, PINION (0.6T) (OPT)SHIM, PINION (0.6T) (OPT)
-
65KM-17531-90-00 SHIM, PINION (0.8T) (OPT)SHIM, PINION (0.8T) (OPT)
-
65KM-17531-A0-00 SHIM, PINION (0.9T) (OPT)SHIM, PINION (0.9T) (OPT)
-
65KM-17531-B0-00 SHIM, PINION (1.0T) (OPT)SHIM, PINION (1.0T) (OPT)
-
65KM-17531-80-00 SHIM, PINION (0.7T) (OPT)SHIM, PINION (0.7T) (OPT)
-
790179-22013-00 NUTNUT
-
890110-08091-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
91XD-17530-00-00 PINION SETPINION SET
-
103B4-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1193306-37206-00 BEARINGBEARING
-
1290179-60001-00 NUTNUT
-
1393306-20654-00 BEARINGBEARING
-
1493102-30010-00 OIL SEALOIL SEAL
-
153B4-17832-10-00 COUPLINGCOUPLING
-
1690201-166R5-00 WASHER, PLATEWASHER, PLATE
-
1790179-16006-00 NUTNUT
-
1893210-78544-00 O-RINGO-RING
-
1997022-08030-00 BOLT, HEXAGONBOLT, HEXAGON
-
2092902-08600-00 WASHER, PLATEWASHER, PLATE
-
213B4-17531-00-00 SHIM, PINION (0.1T) (OPT)SHIM, PINION (0.1T) (OPT)
-
213B4-17531-10-00 SHIM, PINION (0.15T) (OPT)SHIM, PINION (0.15T) (OPT)
-
213B4-17531-60-00 SHIM, PINION (0.6T) (OPT)SHIM, PINION (0.6T) (OPT)
-
213B4-17531-50-00 SHIM, PINION (0.5T) (OPT)SHIM, PINION (0.5T) (OPT)
-
213B4-17531-20-00 SHIM, PINION (0.2T) (OPT)SHIM, PINION (0.2T) (OPT)
-
213B4-17531-30-00 SHIM, PINION (0.3T) (OPT)SHIM, PINION (0.3T) (OPT)
-
213B4-17531-40-00 SHIM, PINION (0.4T) (OPT)SHIM, PINION (0.4T) (OPT)
-
221XD-1755A-00-00 MIDDLE DRIVEN SHAFT ASSYMIDDLE DRIVEN SHAFT ASSY
-
233B4-17832-10-00 COUPLINGCOUPLING
-
2490201-166R5-00 WASHER, PLATEWASHER, PLATE
-
2590179-16006-00 NUTNUT
-
2690179-55660-00 NUTNUT
-
2793102-30010-00 OIL SEALOIL SEAL
