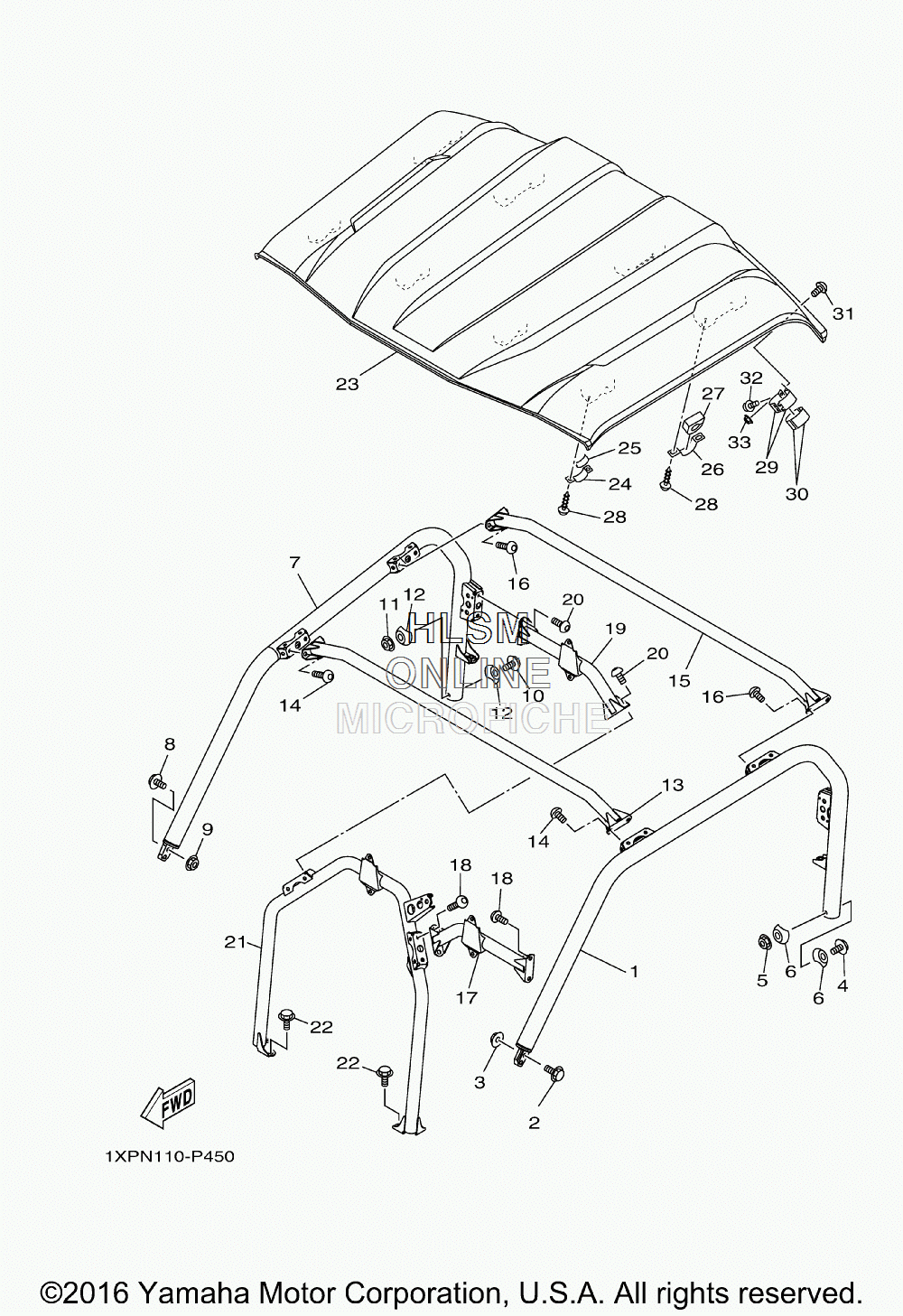

GUARD - ROOF для Yamaha VIKING EPS HUNTER - 2017 года выпуска`
-
№АртикулНазвание
-
11XD-K831A-00-00 SUPPORT, ROOF 3SUPPORT, ROOF 3
-
295812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
390185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
492012-10070-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
590185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
61XD-K7526-00-00 WASHER 2WASHER 2
-
71XD-K831E-00-00 SUPPORT, ROOF 4SUPPORT, ROOF 4
-
895812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
990185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1092012-10070-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1190185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
121XD-K7526-00-00 WASHER 2WASHER 2
-
131XD-K8392-00-00 MEMBER, ROOF FRAMEMEMBER, ROOF FRAME
-
1490111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
151XD-K8393-00-00 MEMBER, ROOF FRAME 2MEMBER, ROOF FRAME 2
-
1690111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
172PG-K830E-00-00 SUNROOF PIPE ASSY 1SUNROOF PIPE ASSY 1
-
1890111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
192PG-K830F-00-00 SUNROOF PIPE ASSY 2SUNROOF PIPE ASSY 2
-
2090111-10802-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
212PG-K830A-00-00 ROOF SUPPORT ASSY 1ROOF SUPPORT ASSY 1
-
2295812-10016-00 BOLT, FLANGEBOLT, FLANGE
-
231XP-K8314-00-00 COVER, SUN ROOFCOVER, SUN ROOF
-
245UG-K8366-00-00 CLAMP, SUPPORTCLAMP, SUPPORT
-
255UG-K7588-00-00 DAMPERDAMPER
-
261XP-K8366-00-00 CLAMP, SUPPORTCLAMP, SUPPORT
-
271XP-K7588-00-00 DAMPERDAMPER
-
2890167-06800-00 SCREW, TAPPINGSCREW, TAPPING
-
291XP-F481H-00-00 CLAMPCLAMP
-
305UG-K7588-00-00 DAMPERDAMPER
-
3190111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
329582P-06012-00 BOLT, FLANGEBOLT, FLANGE
-
339560P-06200-00 NUT, FLANGENUT, FLANGE
