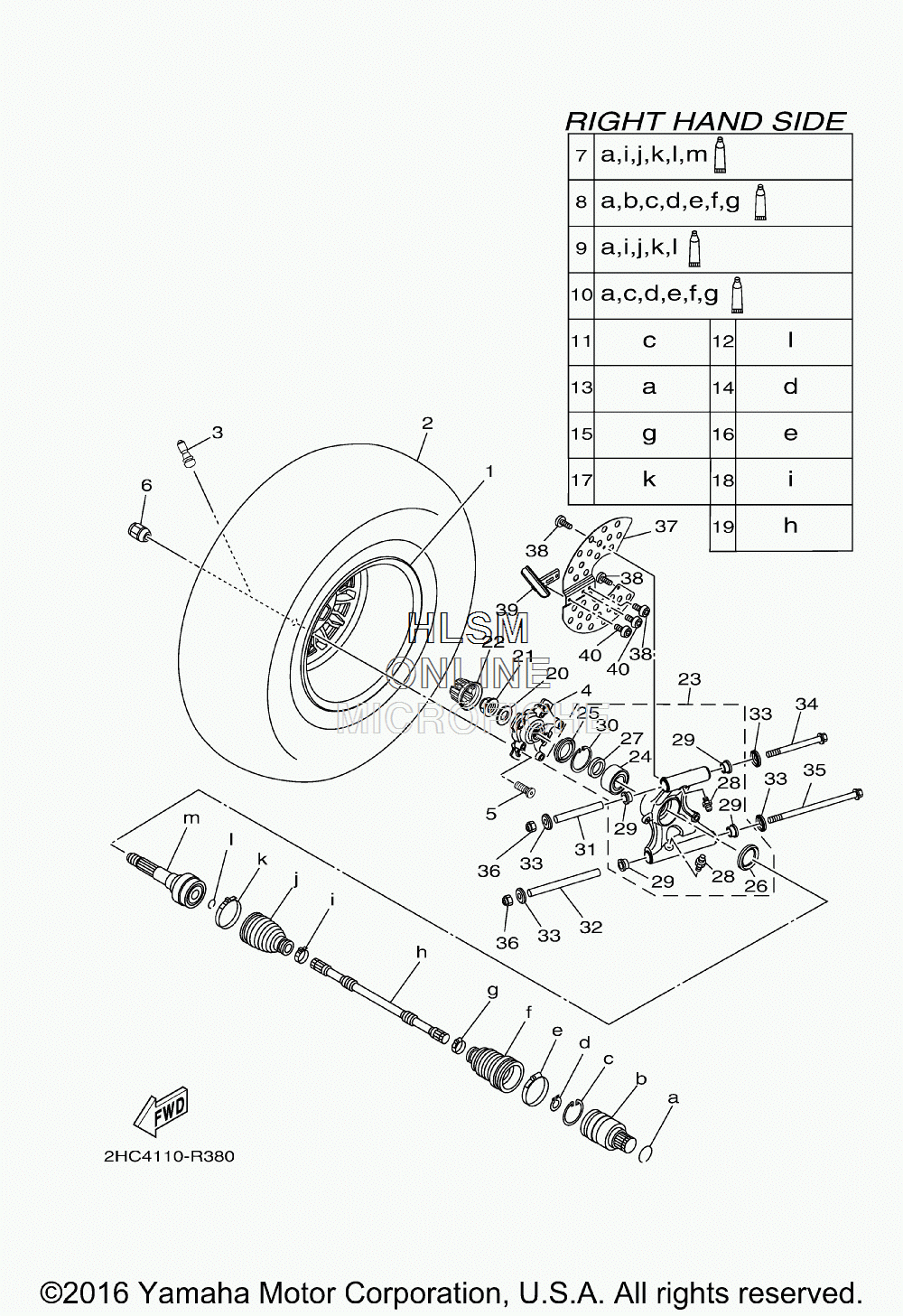

WHEEL - REAR RIGHT SIDE W/ AXLE ASSY для Yamaha YXZ1000 EPS [YXZ10YPXGL] - 2016 года выпуска`
-
№АртикулНазвание
-
12HC-F533P-00-00 WHEEL, CAST 2WHEEL, CAST 2
-
294111-14802-00 TIRE (27X11.00R14 MU10 6PR TL) MAXXISTIRE (27X11.00R14 MU10 6PR TL) MAXXIS
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
42HC-F5111-00-00 HUB, FRONTHUB, FRONT
-
590114-12005-00 BOLT, SERRATIONBOLT, SERRATION
-
690176-12800-00 NUT, CROWNNUT, CROWN
-
72HC-2530T-00-00 BALL JOINT SETBALL JOINT SET
-
82HC-2530V-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
92HC-2530X-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
102HC-2530Y-00-00 BOOT SET(DOUBLE OFFSET JOINT)BOOT SET(DOUBLE OFFSET JOINT)
-
112HC-2536E-00-00 CLIP, SPRINGCLIP, SPRING
-
1216B-25185-00-00 RING 1RING 1
-
1316B-2536E-00-00 CLIP, SPRINGCLIP, SPRING
-
142HC-2512J-00-00 SNAP RINGSNAP RING
-
152HC-25719-00-00 BANDBAND
-
162HC-26293-00-00 BANDBAND
-
172HC-2512G-00-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
182HC-26397-00-00 BANDBAND
-
192HC-259A2-00-00 SHAFTSHAFT
-
2090201-25023-00 WASHER, PLATEWASHER, PLATE
-
2190179-24006-00 NUTNUT
-
222HC-F512A-00-00 CAP, WHEELCAP, WHEEL
-
232HC-F532F-02-00 REAR KNUCKLE ASSY.,2REAR KNUCKLE ASSY.,2
-
2493305-00603-00 ...BEARING...BEARING
-
2593106-42801-00 ...OIL SEAL...OIL SEAL
-
2693106-38800-00 ...OIL SEAL...OIL SEAL
-
2790387-30013-00 ...COLLAR...COLLAR
-
2893700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2990381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
3099009-72500-00 ...CIRCLIP...CIRCLIP
-
3190387-12060-00 COLLARCOLLAR
-
3290387-12061-00 COLLARCOLLAR
-
331XD-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3490105-12066-00 BOLT, FLANGEBOLT, FLANGE
-
3590105-12097-00 BOLT, FLANGEBOLT, FLANGE
-
3690185-12007-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
372HC-F535C-00-00 RING, WHEEL RR. 2RING, WHEEL RR. 2
-
3890111-06096-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
392HC-F2342-00-00 PLATE, GUIDE 2PLATE, GUIDE 2
-
4092012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
