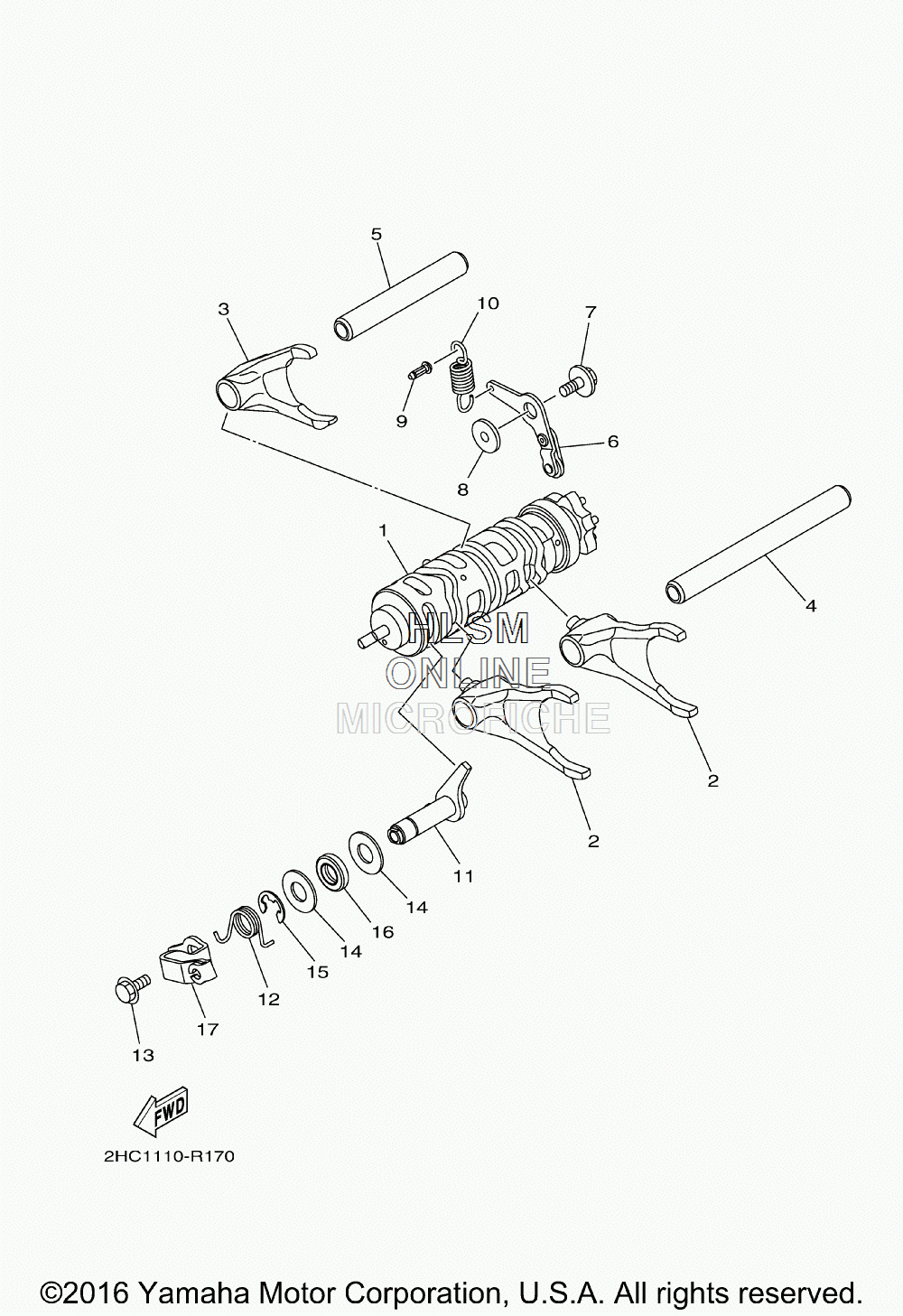

SHIFT CAM W/ FORK для Yamaha YXZ1000 EPS [YXZ10YPXGL] - 2016 года выпуска`
-
№АртикулНазвание
-
12HC-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
22HC-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
32HC-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
43D8-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
53D8-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
62HC-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
790159-06027-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
84NX-18175-00-00 SPACERSPACER
-
9132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
102HC-18144-00-00 HANGER, SPRINGHANGER, SPRING
-
112HC-18380-00-00 SHIFTER BRKT. ASSYSHIFTER BRKT. ASSY
-
122HC-18337-00-00 SPRINGSPRING
-
1395812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1490201-12575-00 WASHER, PLATEWASHER, PLATE
-
1599002-10600-00 CIRCLIPCIRCLIP
-
1693102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
172HC-18431-00-00 BRACKET, SHIFTERBRACKET, SHIFTER
