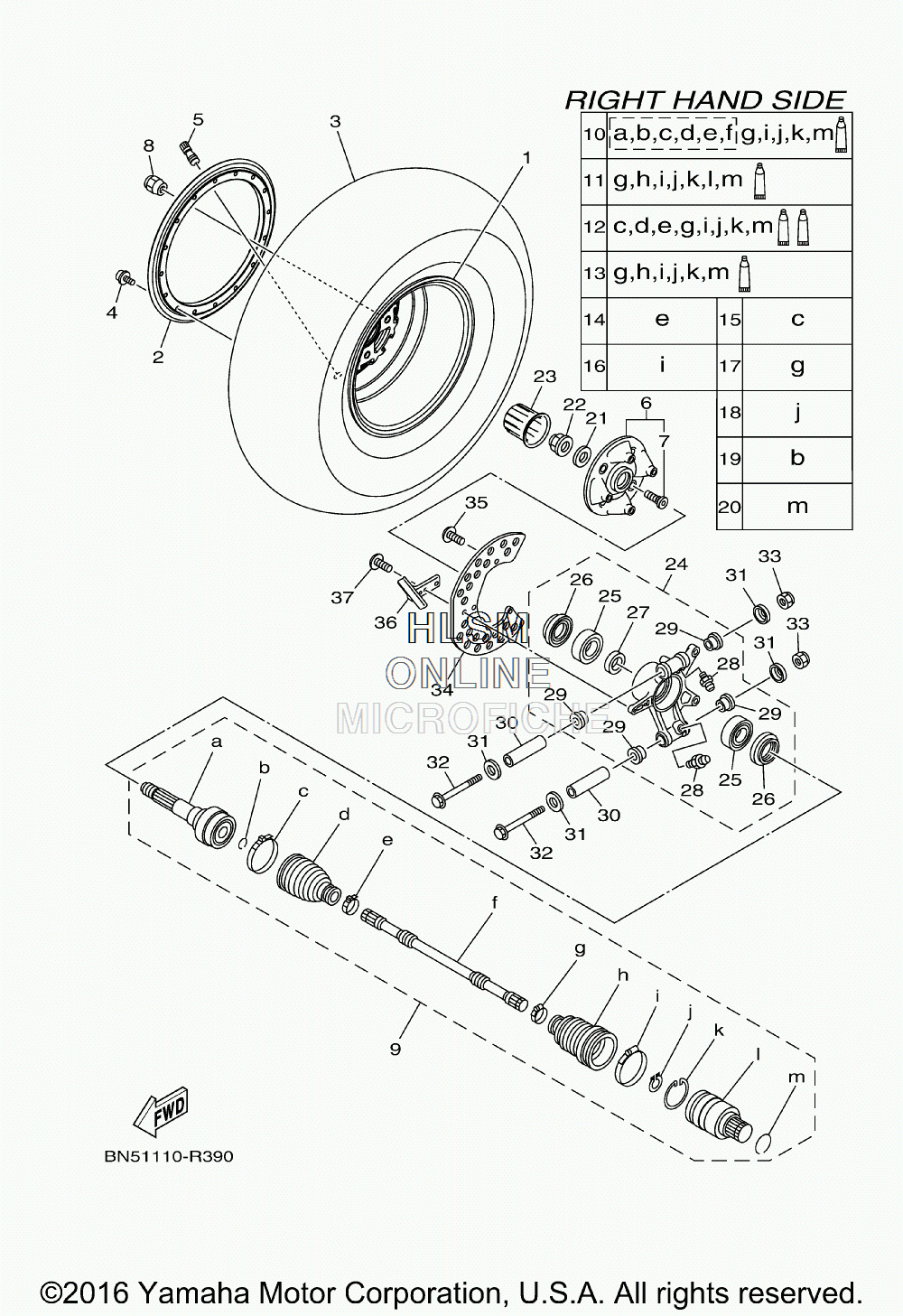

WHEEL - REAR RIGHT SIDE W/ AXLE ASSY для Yamaha WOLVERINE R-SPEC EPS SPCL EDITION [XE70WPSGS] - 2016 года выпуска`
-
№АртикулНазвание
-
1BN5-F5307-00-00 CAST WHEEL, REARCAST WHEEL, REAR
-
2BN5-F4658-01-00 NUT, CAPNUT, CAP
-
394110-12818-00 TIRE (26X10.00-12 MU10 4PR TL)TIRE (26X10.00-12 MU10 4PR TL)
-
490105-068C3-00 BOLT, FLANGEBOLT, FLANGE
-
593900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
62MB-F510D-00-00 HUB ASSY 2HUB ASSY 2
-
790114-12002-00 ...BOLT, SERRATION...BOLT, SERRATION
-
890176-12800-00 NUT, CROWNNUT, CROWN
-
91XD-F531H-00-00 REAR DRIVE SHAFT ASSYREAR DRIVE SHAFT ASSY
-
101XD-F530T-00-00 ...BALL JOINT SET...BALL JOINT SET
-
111XD-F530V-00-00 ...DOUBLE OFF SET JOINT...DOUBLE OFF SET JOINT
-
121XD-F530X-00-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
131XD-F530Y-00-00 ...BOOT SET(DOUBLE OFFSET JOINT...BOOT SET(DOUBLE OFFSET JOINT
-
141XD-F511H-00-00 ...BOOT BAND(DOUBLE OFFSET JOIN...BOOT BAND(DOUBLE OFFSET JOIN
-
151XD-F511G-00-00 ...BOOT BAND (BALL JOINT)...BOOT BAND (BALL JOINT)
-
161XD-F512G-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
171XD-F510U-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
181XD-F512J-00-00 ...SNAP RING...SNAP RING
-
195UG-F512H-00-00 ...CIRCLIP...CIRCLIP
-
201XD-F536E-00-00 ...CLIP, SPRING...CLIP, SPRING
-
2190201-25023-00 WASHER, PLATEWASHER, PLATE
-
2290179-24006-00 NUTNUT
-
232MB-F512A-00-00 CAP, WHEELCAP, WHEEL
-
241XD-F532F-00-00 REAR KNUCKLE ASSY.,2REAR KNUCKLE ASSY.,2
-
2593306-20725-00 ...BEARING...BEARING
-
2693106-50002-00 ...OIL SEAL...OIL SEAL
-
2790387-35007-00 ...COLLAR...COLLAR
-
2893700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2990381-18003-00 ...BUSH, SOLID...BUSH, SOLID
-
3090387-12N54-00 COLLARCOLLAR
-
311XD-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3290105-12089-00 BOLT, FLANGEBOLT, FLANGE
-
3390185-12010-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
341XD-F514A-01-00 RING, WHEEL 1RING, WHEEL 1
-
3592012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
361XD-F2342-00-00 PLATE, GUIDE 2PLATE, GUIDE 2
-
3792012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
