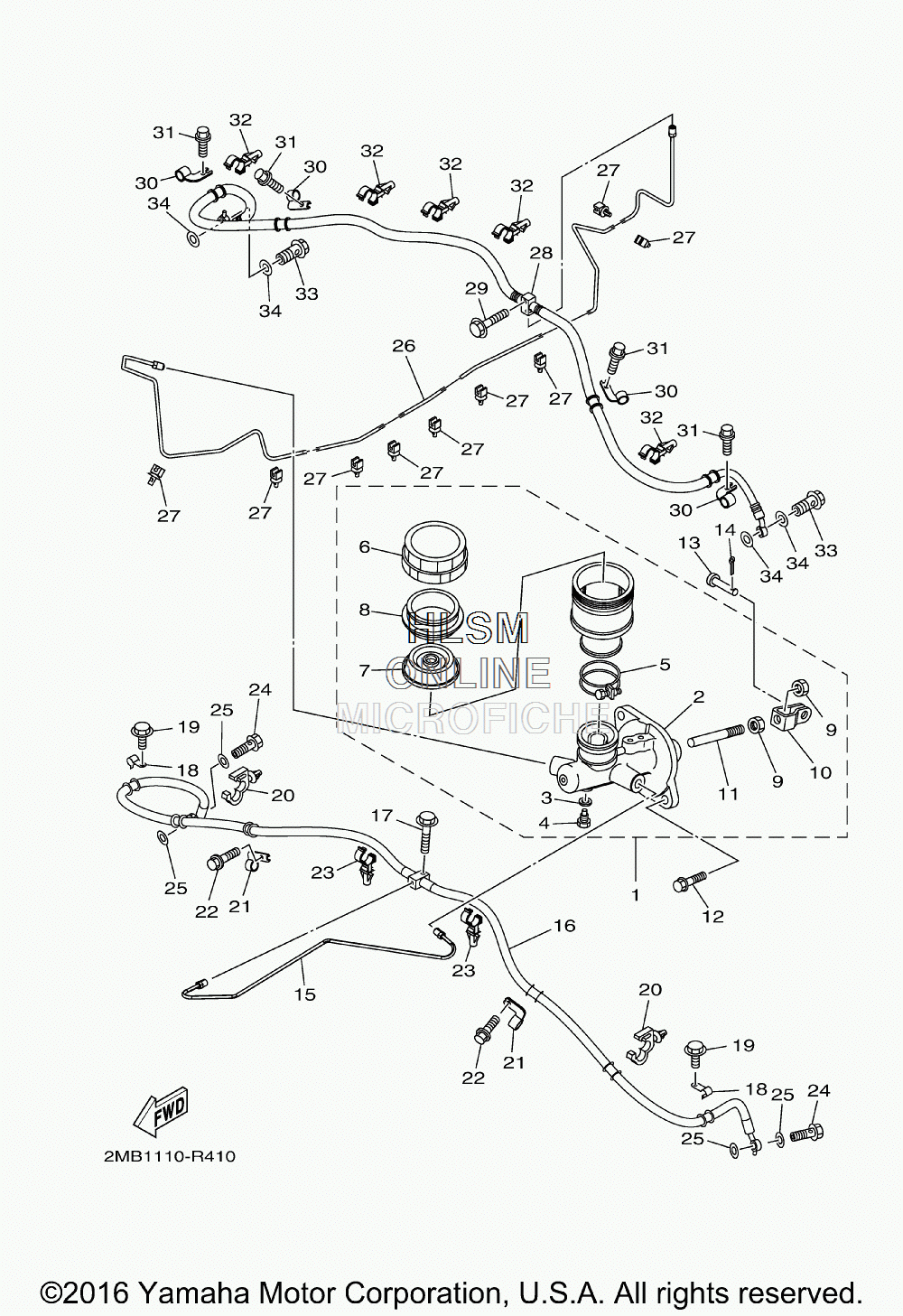

BRAKE - MASTER CYLINDER для Yamaha WOLVERINE R-SPEC EPS SPCL EDITION [XE70WPSGS] - 2016 года выпуска`
-
№АртикулНазвание
-
12PG-2583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25UG-25808-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35UG-25878-00-00 ...WASHER, OIL BOLT...WASHER, OIL BOLT
-
45UG-25877-00-00 ...BOLT, OIL 1...BOLT, OIL 1
-
55UG-25719-00-00 ...BAND...BAND
-
65UG-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
75UG-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
85UG-25855-00-00 ...BUSH,DIAPHRAGM...BUSH,DIAPHRAGM
-
94SS-27218-00-00 ...NUT...NUT
-
102YK-27222-00-00 ...JOINT...JOINT
-
115UG-25880-00-00 ...PUSH ROD COMP....PUSH ROD COMP.
-
1290105-08129-00 BOLT, FLANGEBOLT, FLANGE
-
1390240-08005-00 PIN, CLEVISPIN, CLEVIS
-
1491402-20020-00 PIN, COTTERPIN, COTTER
-
151XD-F5882-00-00 PIPE, BRAKE 2PIPE, BRAKE 2
-
161XD-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1795812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
185KM-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
1995812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2090464-18002-00 CLAMPCLAMP
-
212PG-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2295812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2390464-16012-00 CLAMPCLAMP
-
2490401-10015-00 BOLT, UNIONBOLT, UNION
-
2590201-10118-00 WASHER, PLATEWASHER, PLATE
-
262MB-F5871-00-00 PIPE, BRAKEPIPE, BRAKE
-
275KM-81677-00-00 CLAMP 1CLAMP 1
-
282MB-F5873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
2990105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
302PG-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
3195812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3290464-16012-00 CLAMPCLAMP
-
3390401-10015-00 BOLT, UNIONBOLT, UNION
-
3490201-10118-00 WASHER, PLATEWASHER, PLATE
