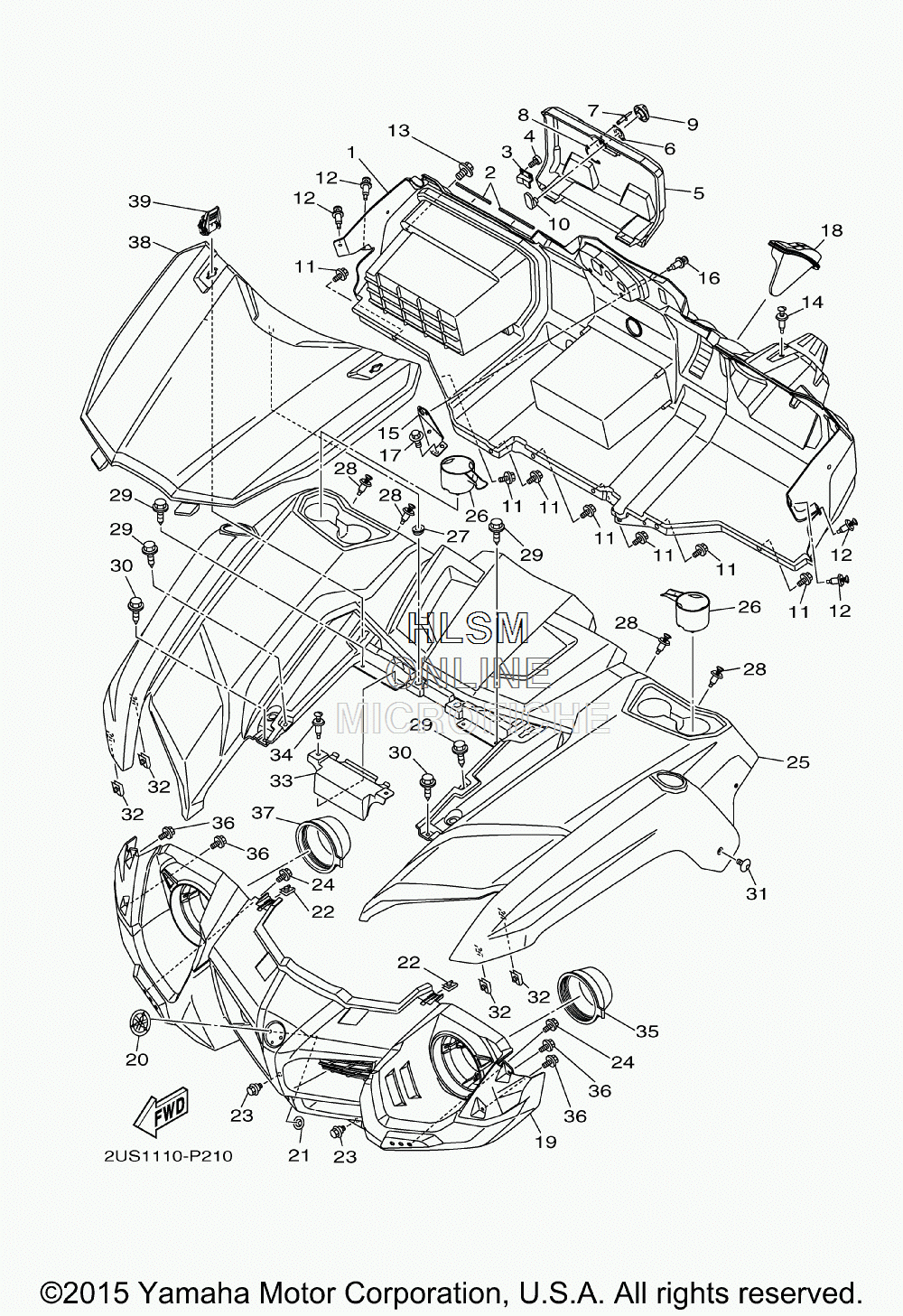

FENDER - FRONT для Yamaha VIKING 700 - 2015 года выпуска`
-
№АртикулНазвание
-
11XD-K7711-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
21XD-F1541-00-00 DAMPER 1DAMPER 1
-
31XD-F139T-00-00 BRACKET, COVERBRACKET, COVER
-
490164-04800-00 SCREW, TAPPINGSCREW, TAPPING
-
51XD-F160F-00-00 LIDLID
-
61XD-F1515-00-00 WASHER, SPECIALWASHER, SPECIAL
-
790267-24143-00 RIVET, BLINDRIVET, BLIND
-
81XD-F1516-00-00 WASHER, SPECIAL 2WASHER, SPECIAL 2
-
91XD-2837G-00-00 LOCK 1LOCK 1
-
101XD-2837H-00-00 LOCK 2LOCK 2
-
1190119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290269-07803-00 RIVETRIVET
-
1390119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490269-07803-00 RIVETRIVET
-
151XD-F258G-00-00 BRACKET, DASH UPPER 1BRACKET, DASH UPPER 1
-
1690269-07803-00 RIVETRIVET
-
1795822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
181XD-F6372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
191XD-F8309-00-00 GRILLE, FRONTGRILLE, FRONT
-
201XD-F175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
2190183-06071-00 NUT, SPRINGNUT, SPRING
-
2290183-060A6-00 NUT, SPRINGNUT, SPRING
-
2390109-06202-00 BOLTBOLT
-
2490119-06215-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
251XD-F1511-20-00 FENDER, FRONT FOR RTRFENDER, FRONT FOR RTR
-
251XD-F1511-00-00 FENDER, FRONT FOR PDGFENDER, FRONT FOR PDG
-
262PG-F1596-00-00 HOLDERHOLDER
-
2790480-01558-00 GROMMETGROMMET
-
2890269-07803-00 RIVETRIVET
-
2990119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3190149-06280-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
3290183-060A6-00 NUT, SPRINGNUT, SPRING
-
331XD-F163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
3490269-07803-00 RIVETRIVET
-
353B4-28349-00-00 CAPCAP
-
3690119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
373B4-28349-00-00 CAPCAP
-
381XD-F1982-20-00 HOOD 1 FOR RTRHOOD 1 FOR RTR
-
381XD-F1982-00-00 HOOD 1 FOR PDGHOOD 1 FOR PDG
-
391XD-2175K-00-00 LEVER, LOCKLEVER, LOCK
