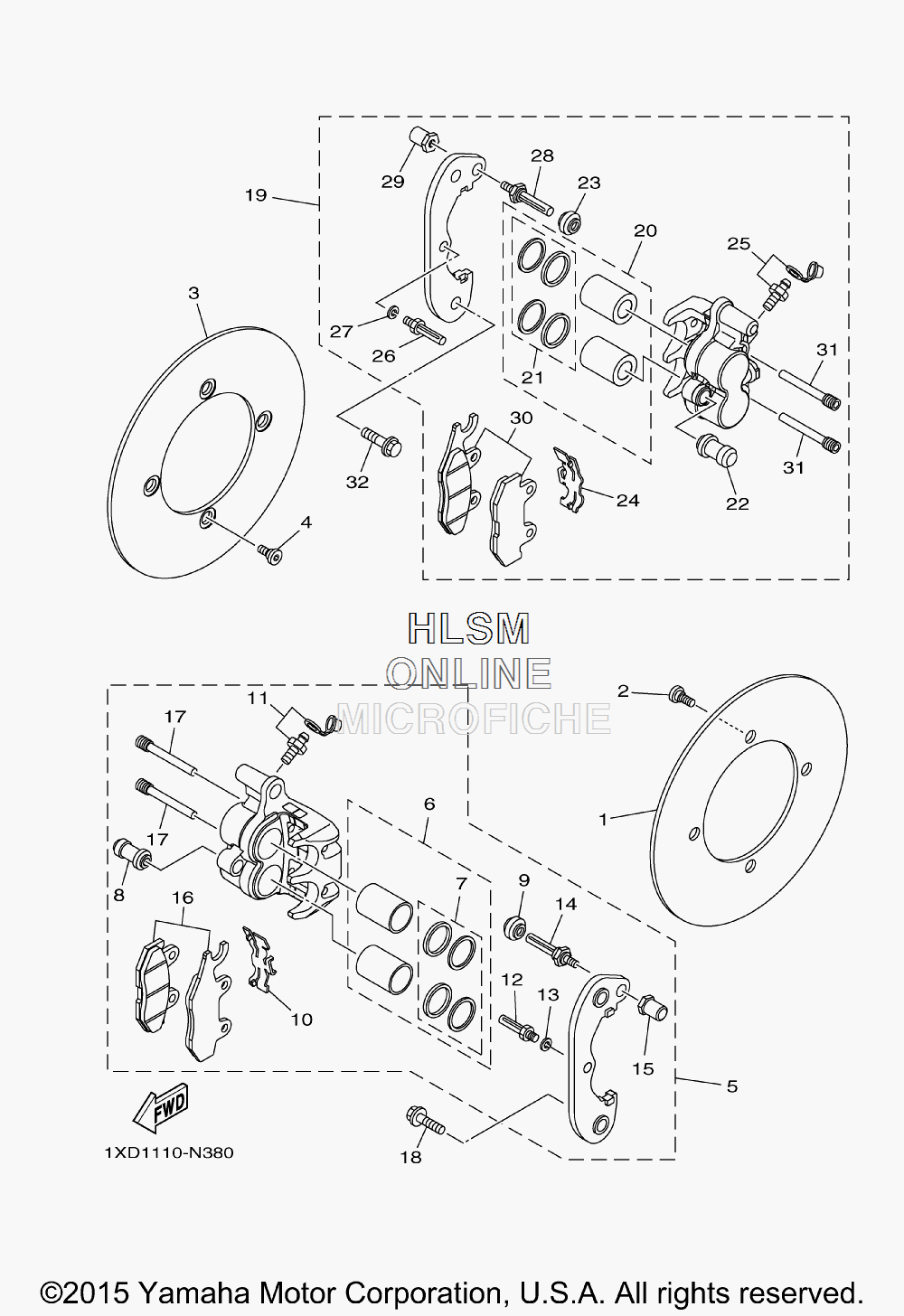

BRAKE - REAR CALIPER для Yamaha VIKING 700 - 2015 года выпуска`
-
№АртикулНазвание
-
11XD-F582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08082-00 BOLTBOLT
-
31XD-F582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
490109-08082-00 BOLTBOLT
-
51XD-2580V-00-00 CALIPER ASSY, REAR 1CALIPER ASSY, REAR 1
-
63LD-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
73JD-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
81UY-25937-51-00 ...BOOT 2...BOOT 2
-
93JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
103LD-25934-01-00 ...SPRING, PAD...SPRING, PAD
-
111UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
121UY-25926-51-00 ...BOLT...BOLT
-
131UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
143JD-25926-00-00 ...BOLT...BOLT
-
153JD-25961-00-00 ...NUT...NUT
-
161XD-25806-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
173LD-25924-00-00 ...PIN, PAD...PIN, PAD
-
1890105-10265-00 BOLT, FLANGEBOLT, FLANGE
-
191XD-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
203LD-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
213JD-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
221UY-25937-51-00 ...BOOT 2...BOOT 2
-
233JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
243LD-25934-01-00 ...SPRING, PAD...SPRING, PAD
-
251UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
261UY-25926-51-00 ...BOLT...BOLT
-
271UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
283JD-25926-00-00 ...BOLT...BOLT
-
293JD-25961-00-00 ...NUT...NUT
-
301XD-25806-10-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
313LD-25924-00-00 ...PIN, PAD...PIN, PAD
-
3290105-10265-00 BOLT, FLANGEBOLT, FLANGE
