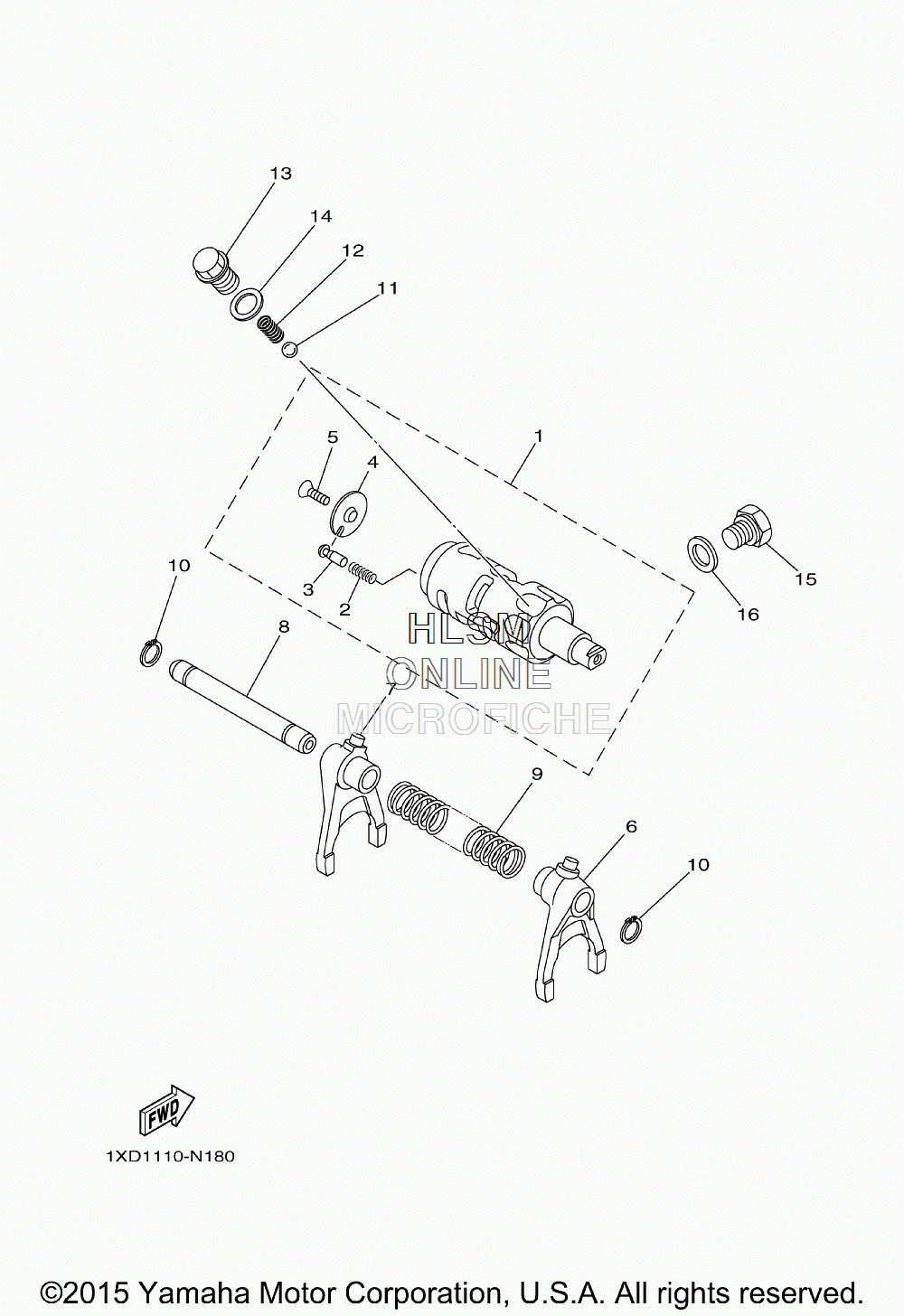

SHIFT CAM W/ FORK для Yamaha VIKING HUNTER - 2014 года выпуска`
-
№АртикулНазвание
-
11XD-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
290501-06022-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
35KM-18542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
44UN-18566-00-00 ...PLATE, SIDE 2...PLATE, SIDE 2
-
590149-05016-00 ...SCREW...SCREW
-
63B4-18511-11-00 FORK, SHIFT 1FORK, SHIFT 1
-
71XD-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
85B4-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
990501-140A2-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1099009-12400-00 CIRCLIPCIRCLIP
-
1193503-08007-00 BALL 3/8BALL 3/8
-
1290501-100A8-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1390105-14003-00 BOLT, FLANGEBOLT, FLANGE
-
1490430-14194-00 GASKETGASKET
-
1590340-14036-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1690430-14194-00 GASKETGASKET
