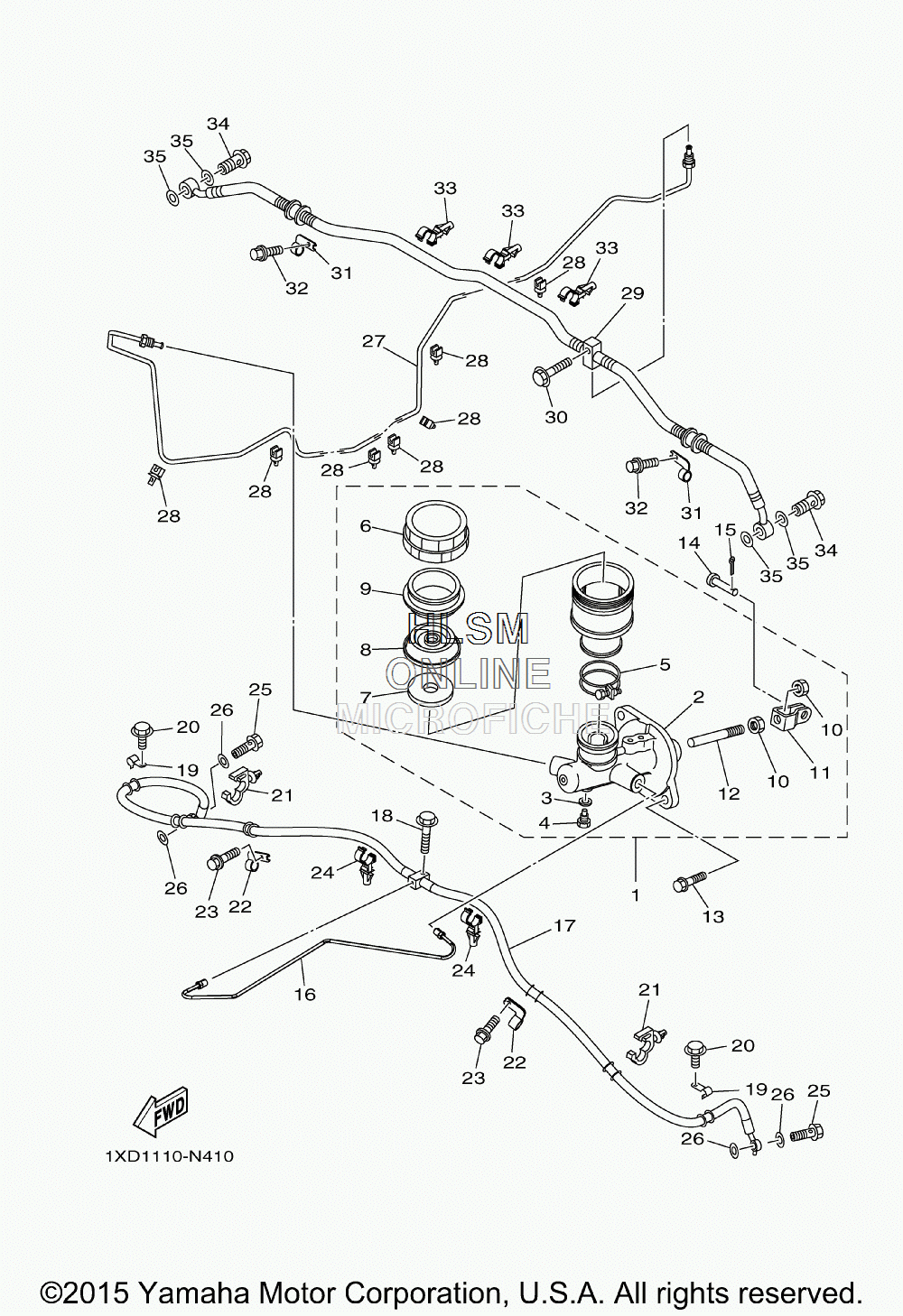

BRAKE - MASTER CYLINDER для Yamaha VIKING HUNTER - 2014 года выпуска`
-
№АртикулНазвание
-
15B4-2583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25UG-W0042-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35UG-25878-00-00 ...WASHER, OIL BOLT...WASHER, OIL BOLT
-
45UG-25877-00-00 ...BOLT, OIL 1...BOLT, OIL 1
-
55UG-25719-00-00 ...BAND...BAND
-
65UG-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
75UG-25853-00-00 ...FLOAT, RESERVOIR...FLOAT, RESERVOIR
-
85UG-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
95UG-25855-00-00 ...BUSH,DIAPHRAGM...BUSH,DIAPHRAGM
-
104SS-27218-00-00 ...NUT...NUT
-
112YK-27222-00-00 ...JOINT...JOINT
-
125UG-25880-00-00 ...PUSH ROD COMP....PUSH ROD COMP.
-
1390105-08129-00 BOLT, FLANGEBOLT, FLANGE
-
1490240-08005-00 PIN, CLEVISPIN, CLEVIS
-
1591402-20020-00 PIN, COTTERPIN, COTTER
-
161XD-F5882-00-00 PIPE, BRAKE 2PIPE, BRAKE 2
-
171XD-F5872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1895812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
195KM-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
2095812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2190464-18002-00 CLAMPCLAMP
-
223B4-25876-10-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
2395812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2490464-16012-00 CLAMPCLAMP
-
2590401-10015-00 BOLT, UNIONBOLT, UNION
-
2690201-10118-00 WASHER, PLATEWASHER, PLATE
-
271XD-F5871-00-00 PIPE, BRAKEPIPE, BRAKE
-
285KM-81677-00-00 CLAMP 1CLAMP 1
-
291XD-F5873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
3090105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
313B4-25876-10-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
3295812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3390464-16012-00 CLAMPCLAMP
-
3490401-10015-00 BOLT, UNIONBOLT, UNION
-
3590201-10118-00 WASHER, PLATEWASHER, PLATE
