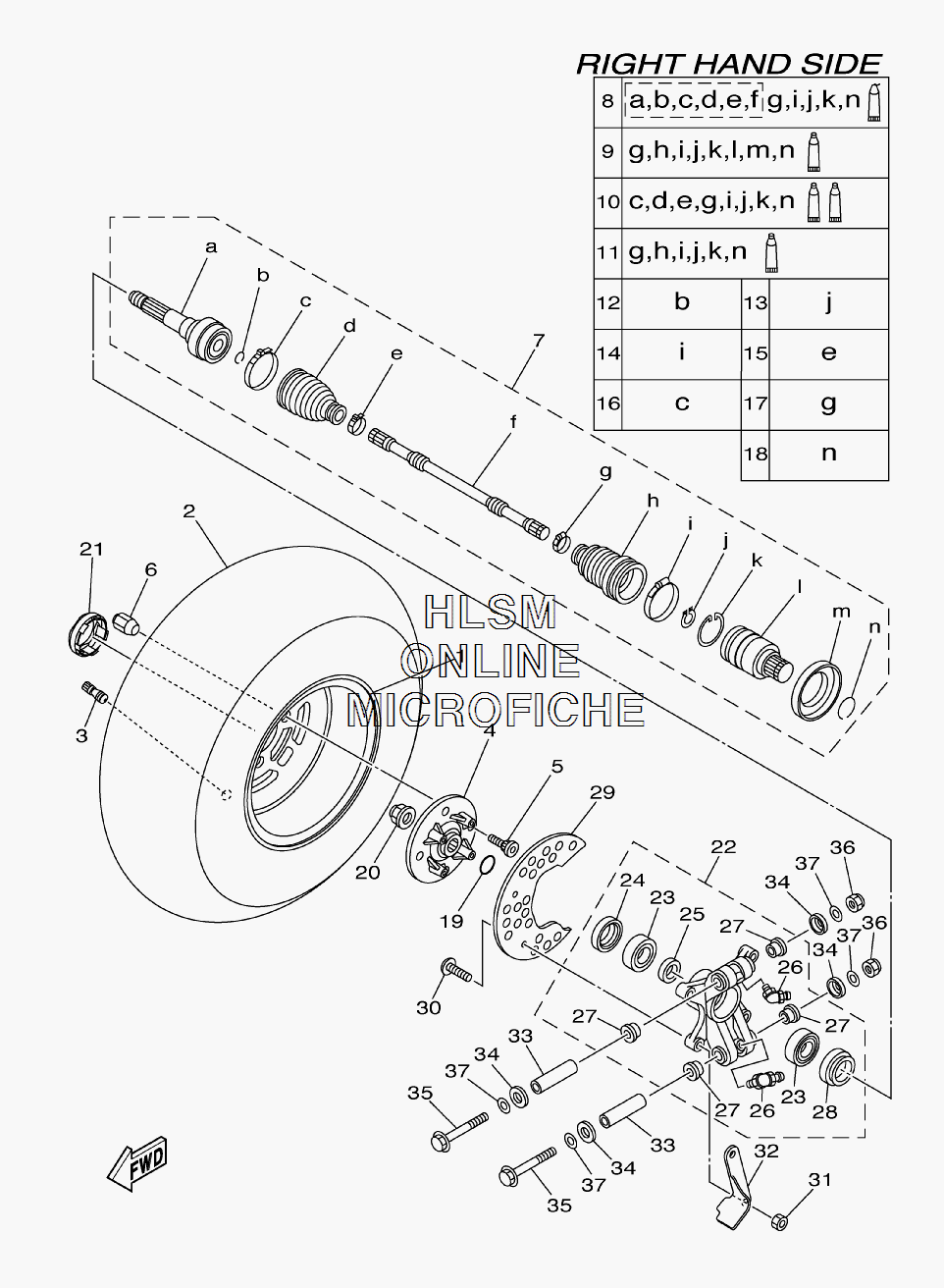

WHEEL - REAR RIGHT SIDE W/ AXLE ASSY для Yamaha RHINO 700 FI SPORT EDITION - 2008 года выпуска`
-
№АртикулНазвание
-
15UG-F5307-00-00 REAR RIM (12 X 7.5)REAR RIM (12 X 7.5)
-
294110-12805-00 TIRE (25X10.00-12 M952Y TL) CHENG SHINTIRE (25X10.00-12 M952Y TL) CHENG SHIN
-
393900-00813-00 VALVE, RIMVALVE, RIM
-
45B4-F5311-00-00 HUB, REARHUB, REAR
-
590114-10016-00 BOLT, SERRATIONBOLT, SERRATION
-
690176-10803-00 NUT, CROWNNUT, CROWN
-
75B4-F53B0-00-00 SHAFT, REAR DRIVE (RH)SHAFT, REAR DRIVE (RH)
-
85B4-F530U-00-00 ...BALL JOINT SET (RH)...BALL JOINT SET (RH)
-
95UG-F530W-02-00 ...DOUBLE OFF SET JOINT (RH)...DOUBLE OFF SET JOINT (RH)
-
105B4-F530X-00-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
115UG-F530Y-01-00 ...BOOT SET (DOUBLE OFFSET JOINT...BOOT SET (DOUBLE OFFSET JOINT
-
125UG-F512H-00-00 ...CIRCLIP...CIRCLIP
-
135UG-F512J-00-00 ...SNAP RING...SNAP RING
-
145UG-F511H-00-00 ...BOOT BAND (DOUBLE OFFSETJOINT...BOOT BAND (DOUBLE OFFSETJOINT
-
155B4-F512G-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
165B4-F511G-00-00 ...BOOT BAND (BALL JOINT)...BOOT BAND (BALL JOINT)
-
175UG-F510U-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
185KM-2536E-10-00 ...CLIP, SPRING...CLIP, SPRING
-
1993210-27666-00 O-RINGO-RING
-
2090179-24003-00 NUTNUT
-
215UG-F530B-00-00 WHEEL CAP ASSY.WHEEL CAP ASSY.
-
225B4-F532F-00-00 REAR KNUCKLE ASSY, 2REAR KNUCKLE ASSY, 2
-
2393306-206Y2-00 ...BEARING...BEARING
-
2493106-42800-00 ...OIL SEAL...OIL SEAL
-
2590387-30008-00 ...COLLAR...COLLAR
-
265B4-R169A-00-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2790381-17067-00 ...BUSH, SOLID...BUSH, SOLID
-
2893106-38800-00 ...OIL SEAL...OIL SEAL
-
295B4-F5718-10-00 PROTECTOR, DISC BRAKEPROTECTOR, DISC BRAKE
-
3090150-06037-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
3195602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
325B4-F2362-00-00 GUARD 2GUARD 2
-
335KM-23448-00-00 SPACERSPACER
-
345UG-23517-10-00 COVER, THRUST 1COVER, THRUST 1
-
3590105-10277-00 BOLT, FLANGEBOLT, FLANGE
-
3690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3790201-10035-00 WASHER, PLATEWASHER, PLATE
