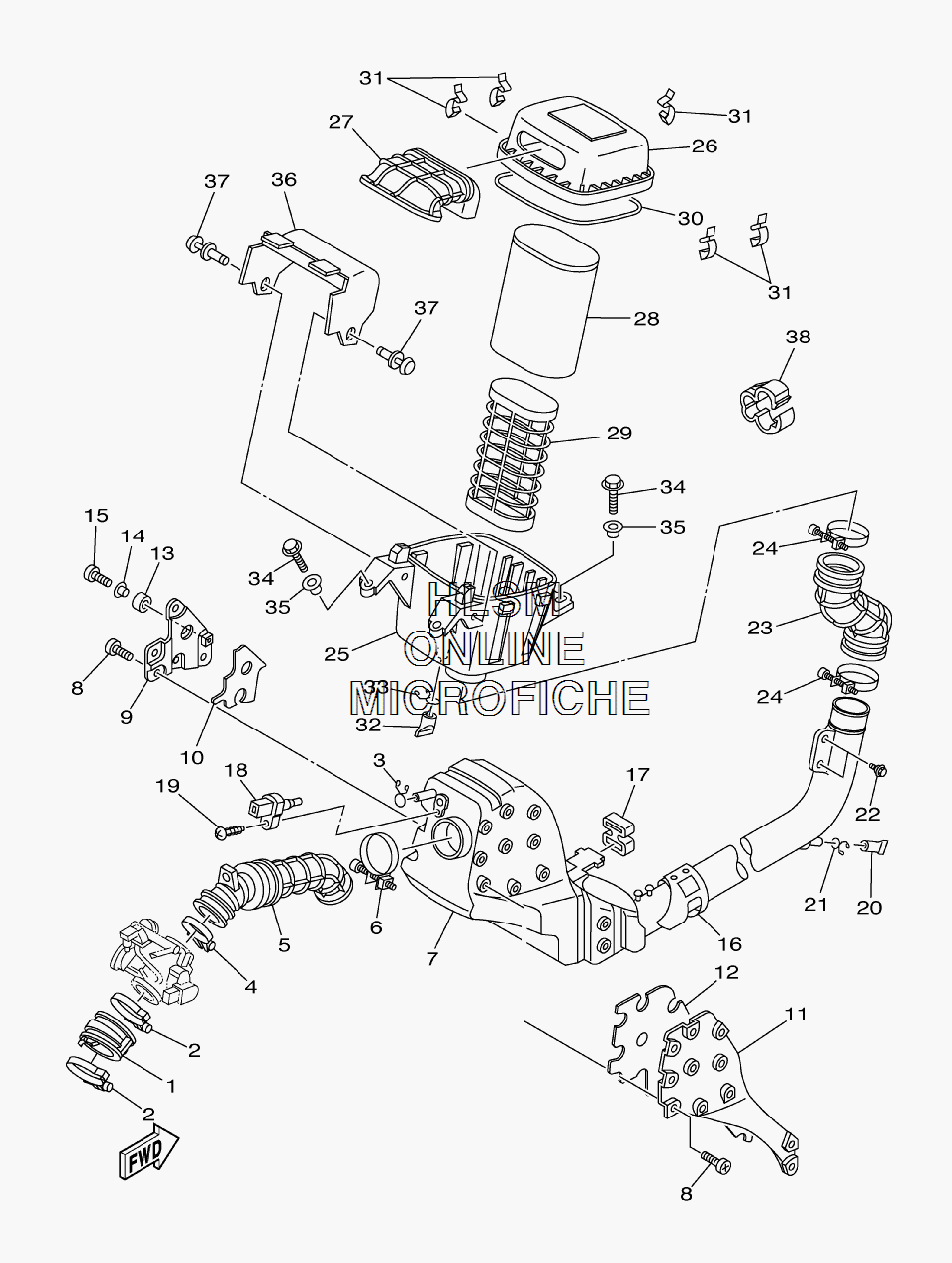

AIR CLEANER W/ INTAKE для Yamaha RHINO 700 FI SPORT EDITION - 2008 года выпуска`
-
№АртикулНазвание
-
15B4-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
290450-72004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
390467-15012-00 CLIP, SCISSORCLIP, SCISSOR
-
490450-59009-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
55B4-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
65B4-E4455-00-00 BANDBAND
-
75B4-E443A-00-00 DUCTDUCT
-
85B4-E4325-00-00 SCREW, PAN HEADSCREW, PAN HEAD
-
95B4-E4247-00-00 PLATE 1PLATE 1
-
105B4-E4163-00-00 SPACERSPACER
-
115B4-E4248-00-00 PLATE 2PLATE 2
-
125B4-E4442-00-00 SPACERSPACER
-
135B4-E4426-00-00 DAMPER 2DAMPER 2
-
145B4-E4449-00-00 COLLARCOLLAR
-
155B4-E4429-00-00 SCREWSCREW
-
165B4-E442F-00-00 PROTECTORPROTECTOR
-
175B4-E4409-00-00 DAMPERDAMPER
-
188FP-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
1997702-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
205BF-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2190467-160A4-00 CLIPCLIP
-
2290109-06172-00 BOLTBOLT
-
235B4-E4454-00-00 JOINTJOINT
-
245B4-E4455-00-00 BANDBAND
-
255B4-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
265B4-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
275B4-E4437-00-00 DUCTDUCT
-
285B4-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
295B4-E4472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
305B4-E4457-00-00 SEALSEAL
-
313B4-14424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
3259V-14457-00-00 SEALSEAL
-
3390467-220A1-00 CLIPCLIP
-
3490105-06833-00 BOLT, FLANGEBOLT, FLANGE
-
3590387-08023-00 COLLARCOLLAR
-
365B4-E246E-00-00 COVER 2COVER 2
-
375UG-F3483-00-00 RIVETRIVET
-
3890464-10233-00 CLAMPCLAMP
