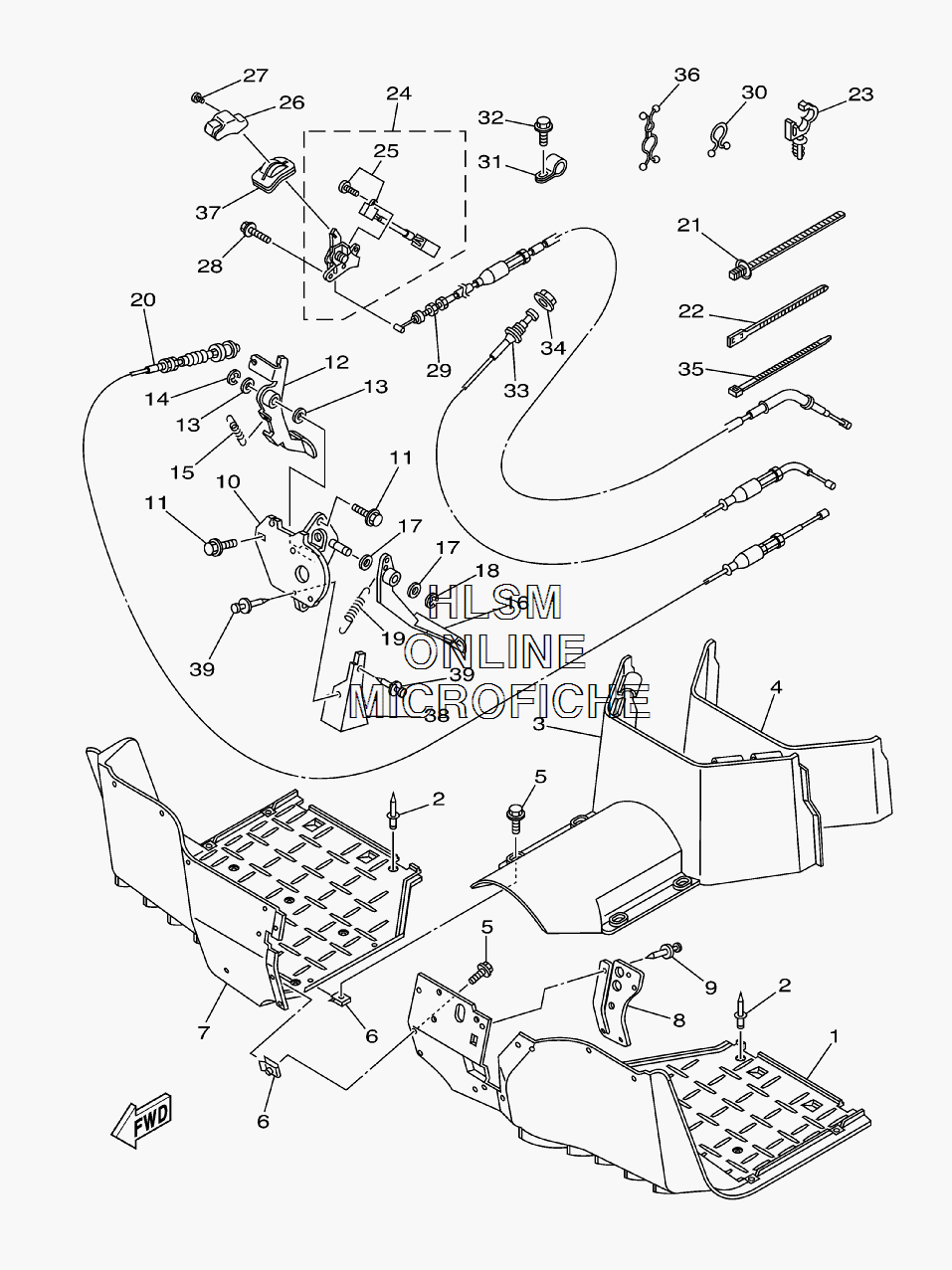

FOOTREST W/ BRAKE PEDAL для Yamaha RHINO 450 SPECIAL EDITION - 2008 года выпуска`
-
№АртикулНазвание
-
15UG-F7411-10-00 FOOTREST 1FOOTREST 1
-
290267-48820-00 RIVET, BLINDRIVET, BLIND
-
35UG-F7413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
45UG-F8228-01-00 SEAL 2SEAL 2
-
590119-05023-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690183-051A1-00 NUT, SPRINGNUT, SPRING
-
75UG-F7421-10-00 FOOTREST 2FOOTREST 2
-
85UG-F7286-00-00 COVER, DUSTCOVER, DUST
-
990269-06800-00 RIVETRIVET
-
105UG-F2548-01-00 BRACKET, PEDAL SUPPORTBRACKET, PEDAL SUPPORT
-
1195812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
125UG-F7801-00-00 ACCEL PEDAL ASSYACCEL PEDAL ASSY
-
1390201-15018-00 WASHER, PLATEWASHER, PLATE
-
1493430-12008-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
1590506-20192-00 SPRING, TENSIONSPRING, TENSION
-
165UG-F7200-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
1790201-15018-00 WASHER, PLATEWASHER, PLATE
-
1893430-12008-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
1990506-20192-00 SPRING, TENSIONSPRING, TENSION
-
205UG-26311-10-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
2190464-20005-00 CLAMPCLAMP
-
2290464-40825-00 CLAMPCLAMP
-
2390464-12830-00 CLAMPCLAMP
-
245UG-F5970-00-00 PARKING BRAKE COMP.PARKING BRAKE COMP.
-
255UG-H251S-00-00 ...SWITCH COMP....SWITCH COMP.
-
265UG-F5664-00-00 KNOB, PARKING LEVERKNOB, PARKING LEVER
-
275UG-F589H-00-00 SCREWSCREW
-
2895812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
292P5-26341-00-00 WIRE, BRAKE 1WIRE, BRAKE 1
-
3090464-16039-00 CLAMPCLAMP
-
3190461-08802-00 CLAMPCLAMP
-
3290105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
332P5-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
34JN6-F6333-10-00 NUTNUT
-
3590464-16115-00 CLAMPCLAMP
-
3690464-31827-00 CLAMPCLAMP
-
375UG-F6372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
385UG-G5158-10-00 PLATE, SPLASHPLATE, SPLASH
-
3990269-06800-00 RIVETRIVET
