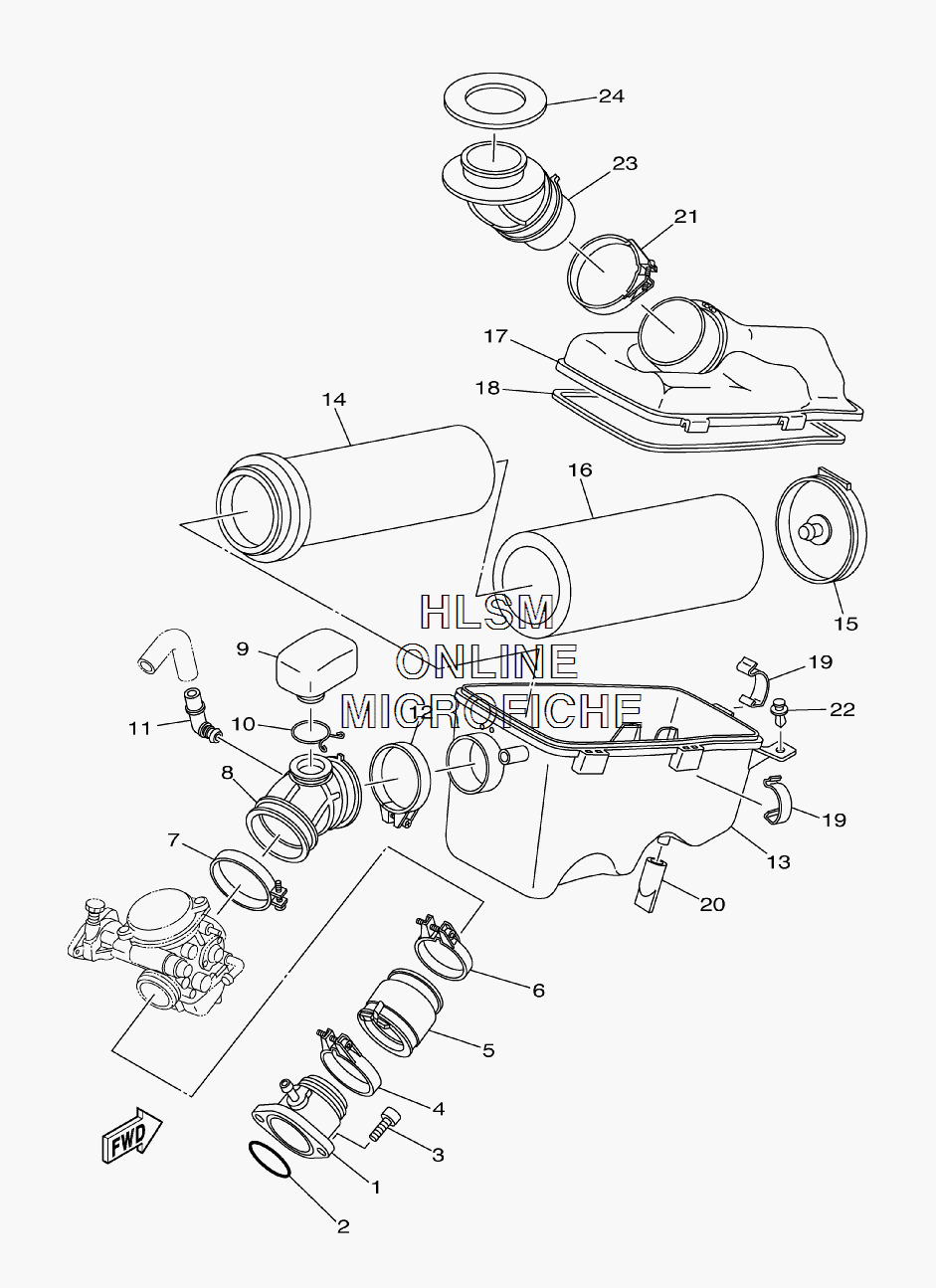

AIR CLEANER W/ INTAKE для Yamaha RHINO 450 SPECIAL EDITION - 2008 года выпуска`
-
№АртикулНазвание
-
12P5-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
293210-44545-00 O-RINGO-RING
-
391312-08025-00 BOLTBOLT
-
490450-54005-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
52P5-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
690450-47002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
790450-56008-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
82P5-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
95UG-E3591-00-00 CHAMBER, AIR 2CHAMBER, AIR 2
-
105UG-E4137-00-00 CLIPCLIP
-
115KM-14419-00-00 PIPEPIPE
-
1290450-58002-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
132P5-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
145UG-E4458-00-00 GUIDEGUIDE
-
155UH-E4468-00-00 PLATE, ELEMENT FITTINGPLATE, ELEMENT FITTING
-
165UG-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
172P5-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
182P5-E4462-00-00 SEALSEAL
-
195UH-E4424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
205UG-E4769-00-00 PIPE, DRAINPIPE, DRAIN
-
2190450-67003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2290269-08813-00 RIVET, PLASTIC MATRIVET, PLASTIC MAT
-
232P5-E4437-00-00 DUCTDUCT
-
245UG-E4476-00-00 SEALSEAL
