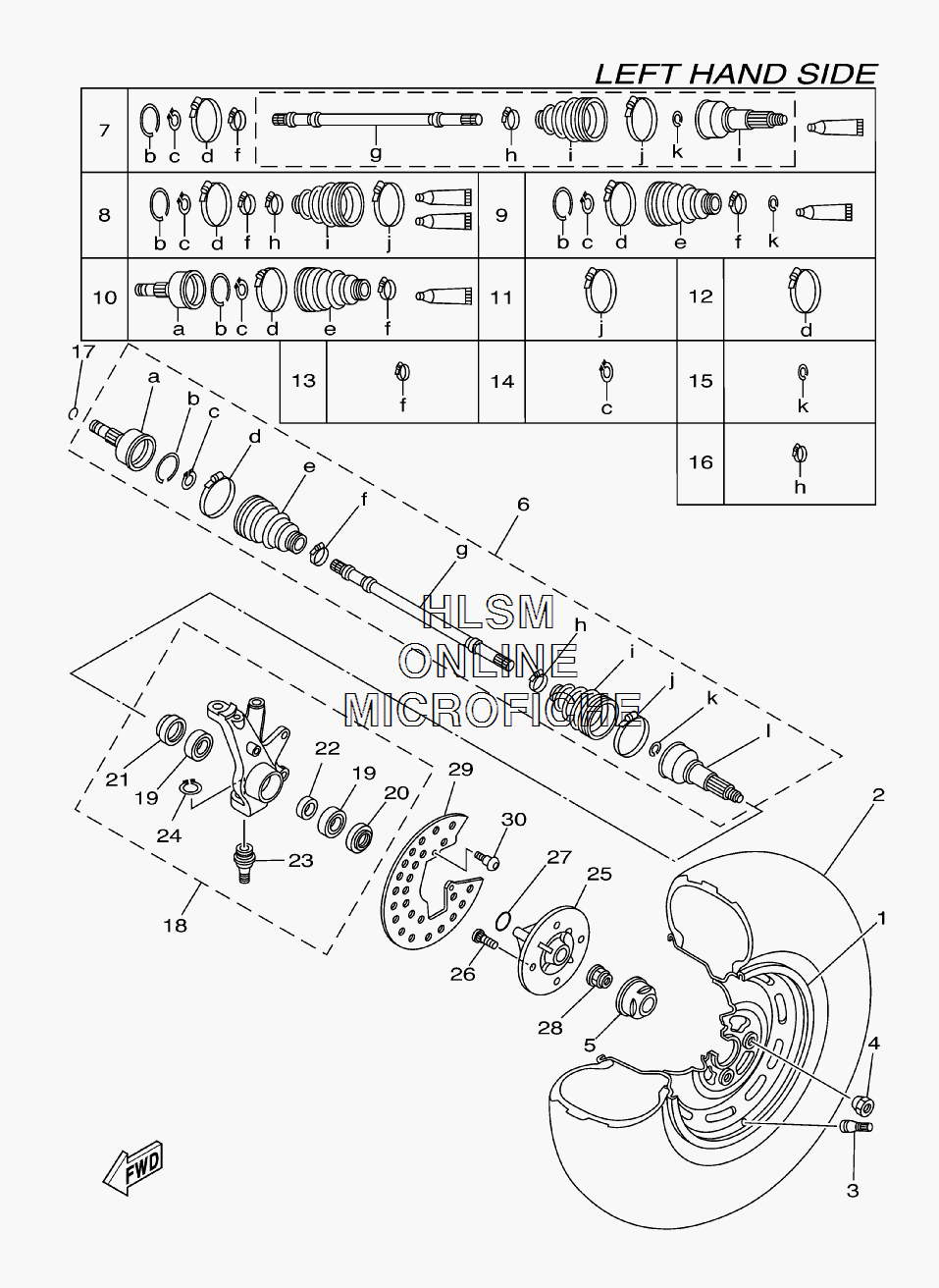

WHEEL - FRONT LEFT SIDE W/ AXLE ASSY для Yamaha RHINO 660 HUNTER - 2007 года выпуска`
-
№АртикулНазвание
-
15UG-F5180-00-00 FRONT RIM (12 X 6.0)FRONT RIM (12 X 6.0)
-
294108-12809-00 TIRE (25X8.00-12 M951Y TL) CHENG SHINTIRE (25X8.00-12 M951Y TL) CHENG SHIN
-
393900-00813-00 VALVE, RIMVALVE, RIM
-
490179-10540-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
52P5-F512A-00-00 CAP, WHEELCAP, WHEEL
-
65UG-F518F-20-00 DRIVE SHAFT ASSY (LH)DRIVE SHAFT ASSY (LH)
-
75UG-F510F-20-00 ...BALL JOINT SET...BALL JOINT SET
-
85UG-F510G-10-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
95KM-2510H-10-00 ...BOOT SET (DOUBLE OFFSET JOINT...BOOT SET (DOUBLE OFFSET JOINT
-
105KM-2510J-20-00 ...DOUBLE OFF SET JOINT (LH)...DOUBLE OFF SET JOINT (LH)
-
115UG-F511G-00-00 ...BOOT BAND (BALL JOINT)...BOOT BAND (BALL JOINT)
-
125UG-F511H-00-00 ...BOOT BAND (DOUBLE OFFSETJOINT...BOOT BAND (DOUBLE OFFSETJOINT
-
133HN-2512G-01-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
142HR-2512J-00-00 ...SNAP RING...SNAP RING
-
155UG-F512H-00-00 ...CIRCLIP...CIRCLIP
-
165UG-F512G-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
175KM-45531-10-00 CLIP, DRIVE SHAFTCLIP, DRIVE SHAFT
-
185UG-F3501-11-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1993306-006Y4-00 ...BEARING...BEARING
-
2093106-38046-00 ...OIL SEAL...OIL SEAL
-
2193106-38047-00 ...OIL SEAL...OIL SEAL
-
2290387-30008-00 ...COLLAR...COLLAR
-
235FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
2493410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
255UG-F5111-10-00 HUB, FRONTHUB, FRONT
-
2690114-10012-00 BOLT, SERRATIONBOLT, SERRATION
-
2793210-27666-00 O-RINGO-RING
-
2890179-24003-00 NUTNUT
-
295UG-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
3090149-06280-00 SCREWSCREW
