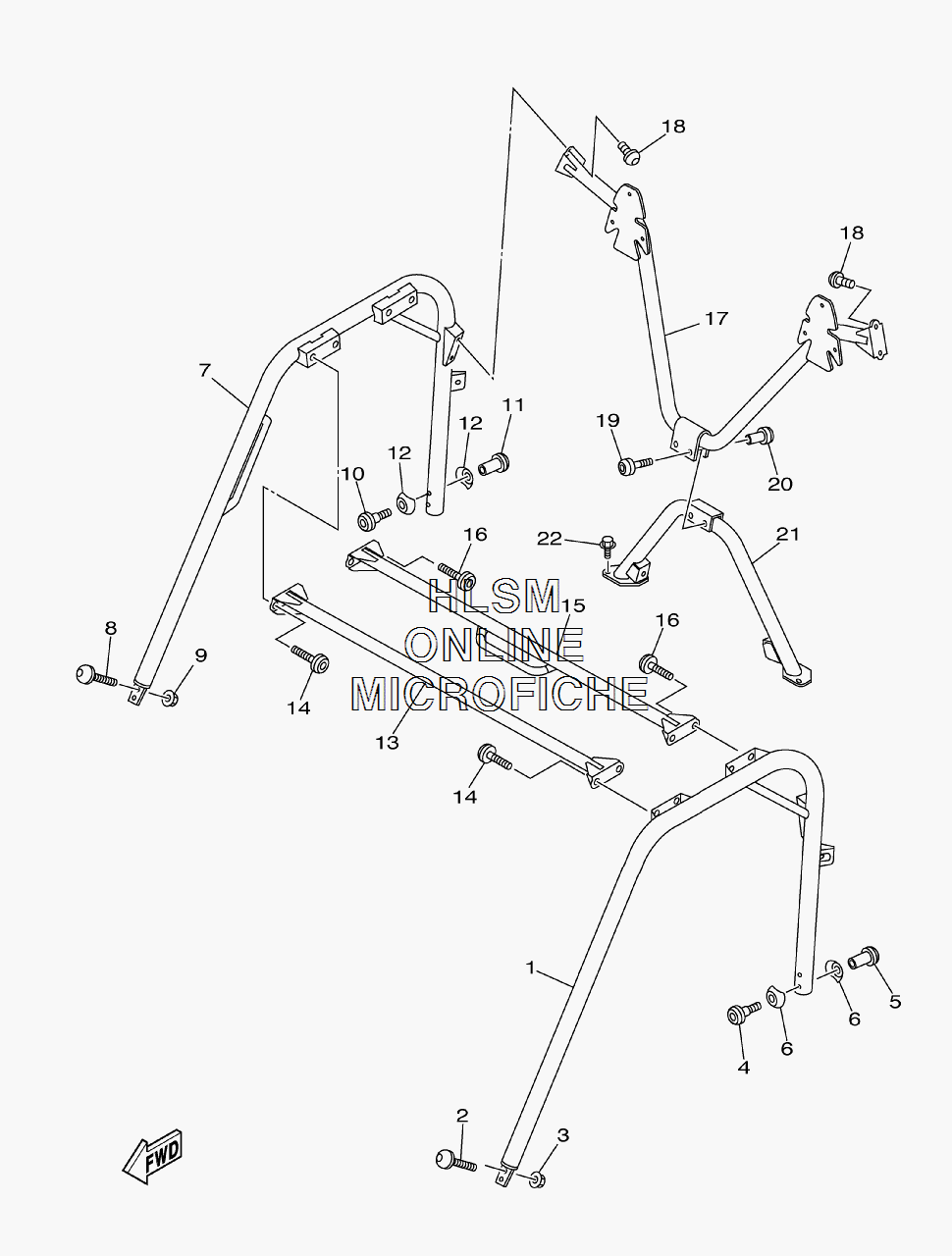

GUARD 2 для Yamaha RHINO 660 HUNTER - 2007 года выпуска
-
№АртикулНазвание
-
15UG-K831A-51-00 SUPPORT, ROOF 3SUPPORT, ROOF 3
-
290111-10803-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
39560P-10200-00 NUT, FLANGENUT, FLANGE
-
45UG-K7519-00-00 BOLTBOLT
-
55UG-K7573-00-00 NUT, SPECIALNUT, SPECIAL
-
65UG-K7526-00-00 WASHER 2WASHER 2
-
75UG-K831E-51-00 SUPPORT, ROOF 4SUPPORT, ROOF 4
-
890111-10803-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
99560P-10200-00 NUT, FLANGENUT, FLANGE
-
105UG-K7519-00-00 BOLTBOLT
-
115UG-K7573-00-00 NUT, SPECIALNUT, SPECIAL
-
125UG-K7526-00-00 WASHER 2WASHER 2
-
135UG-K8392-20-00 MEMBER, ROOF FRAMEMEMBER, ROOF FRAME
-
1490111-10802-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
155UG-K8336-20-00 MEMBER, CROSS ROOFMEMBER, CROSS ROOF
-
1690111-10802-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
175UG-K830A-50-00 ROOF SUPPORT ASSY 1ROOF SUPPORT ASSY 1
-
1890111-10802-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
195UG-K7519-00-00 BOLTBOLT
-
205UG-K7573-00-00 NUT, SPECIALNUT, SPECIAL
-
215UG-K830B-50-00 ROOF SUPPORT ASSY 2ROOF SUPPORT ASSY 2
-
2295817-10016-00 BOLT, FLANGEBOLT, FLANGE
