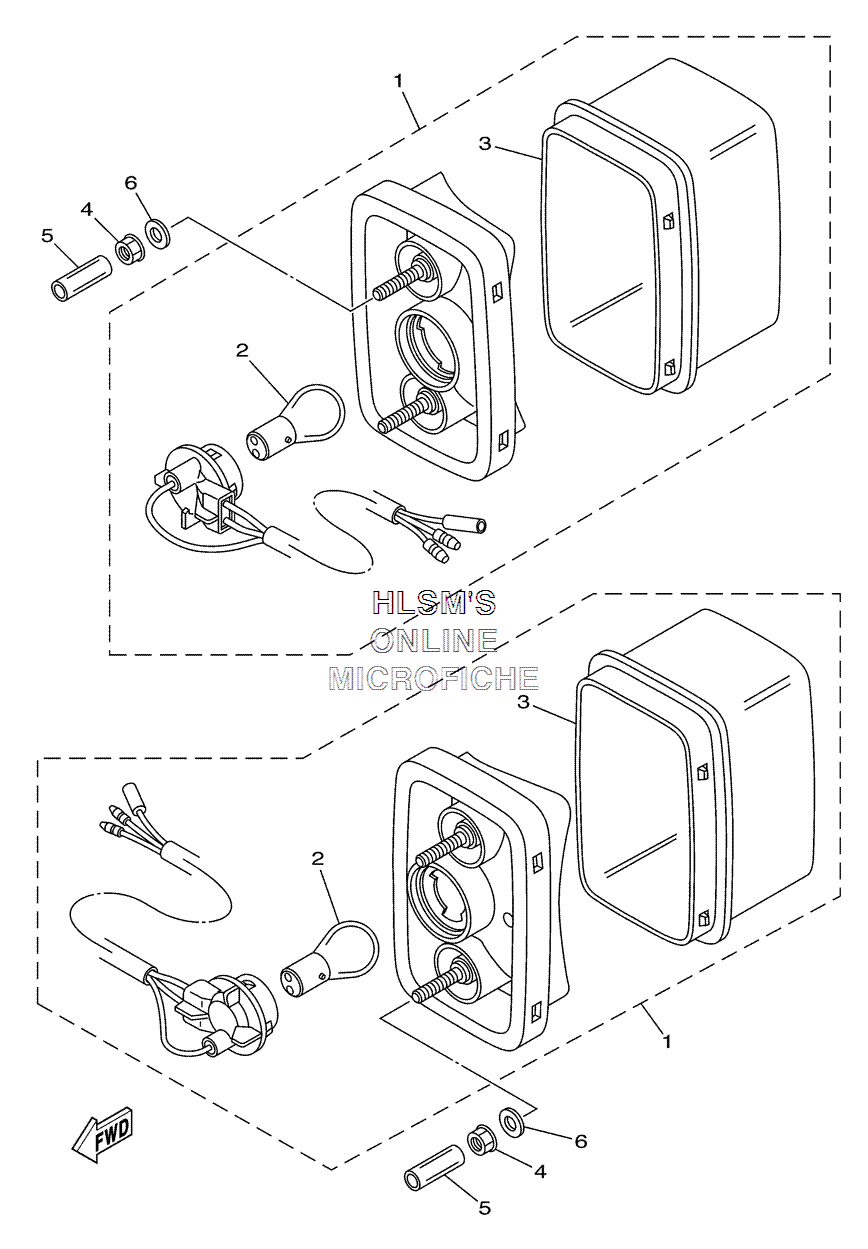

TAILLIGHT ASSY. для Yamaha RHINO 660 4WD SE - 2006 года выпуска
-
№АртикулНазвание
-
15KM-84710-00-00 TAILLIGHT UNIT ASSY.TAILLIGHT UNIT ASSY.
-
21A2-84714-41-00 ...BULB (12V-21/5W)...BULB (12V-21/5W)
-
35KM-8472C-10-00 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
495707-06300-00 NUT, FLANGENUT, FLANGE
-
590445-09220-00 HOSE (L30)HOSE (L30)
-
690201-06074-00 WASHER, PLATEWASHER, PLATE
