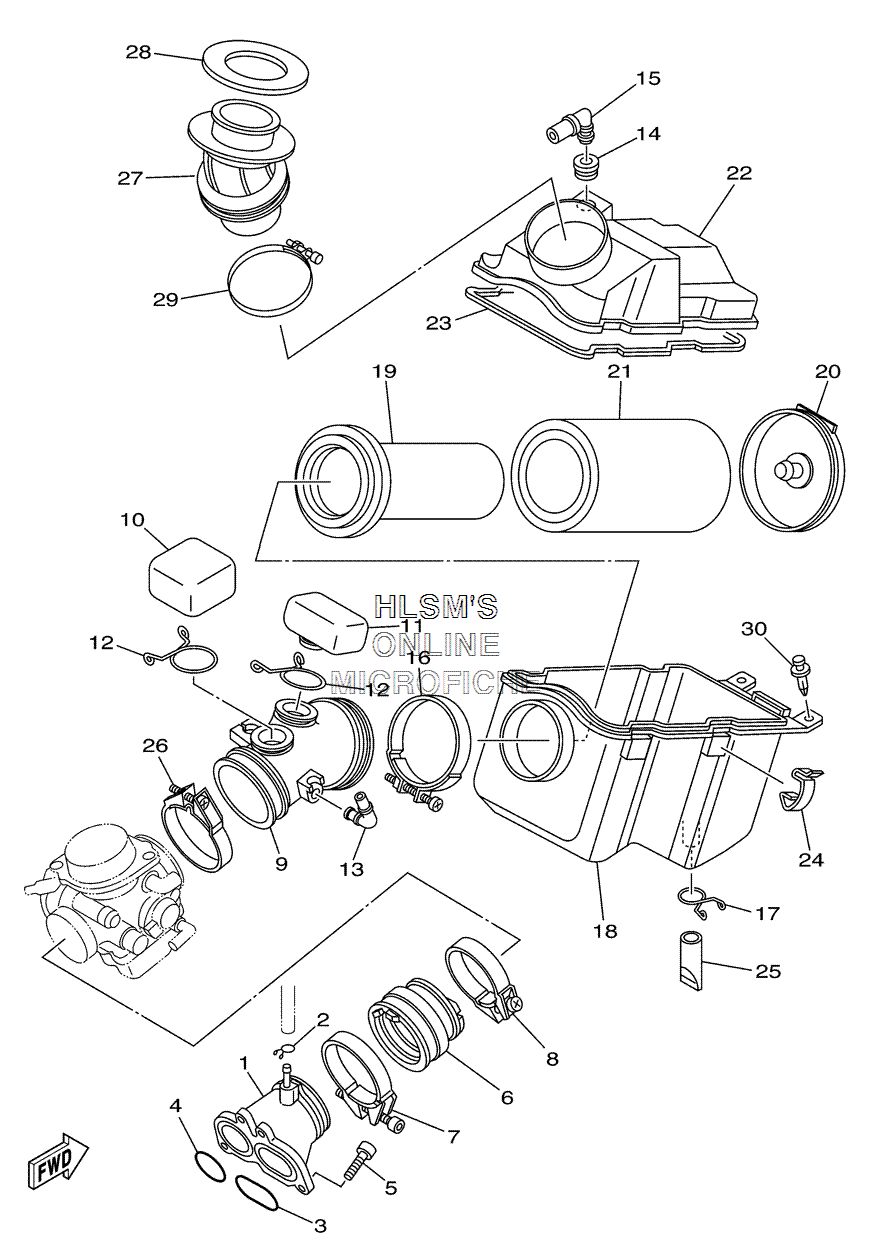

AIR CLEANER ASSY. W/ INTAKE для Yamaha RHINO 660 4WD SE - 2006 года выпуска`
-
№АртикулНазвание
-
15UG-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
290467-08017-00 CLIP, SCISSORCLIP, SCISSOR
-
393210-44545-00 O-RINGO-RING
-
493210-321A8-00 O-RINGO-RING
-
591317-06020-00 BOLTBOLT
-
65KM-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
790450-65001-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
890450-59004-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
95UG-E4453-10-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
105UG-E3581-00-00 CHAMBER, AIRCHAMBER, AIR
-
115UG-E3591-00-00 CHAMBER, AIR 2CHAMBER, AIR 2
-
125UG-E4137-00-00 CLIPCLIP
-
1331A-14419-00-00 PIPEPIPE
-
1431A-14435-00-00 GROMMETGROMMET
-
155KM-14419-00-00 PIPEPIPE
-
1690450-75001-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
175UH-E4438-00-00 CLIP, DRAIN CLEANERCLIP, DRAIN CLEANER
-
185UG-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
195UG-E4458-00-00 GUIDEGUIDE
-
205UH-E4468-00-00 PLATE, ELEMENT FITTINGPLATE, ELEMENT FITTING
-
215UG-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
225UG-E4412-01-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
235UG-E4462-00-00 SEALSEAL
-
245UH-E4424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
255UG-E4769-00-00 PIPE, DRAINPIPE, DRAIN
-
2690450-67002-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
275UG-E4437-00-00 DUCTDUCT
-
285UG-E4476-00-00 SEALSEAL
-
2990450-75001-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
3090269-08813-00 RIVET, PLASTICRIVET, PLASTIC
