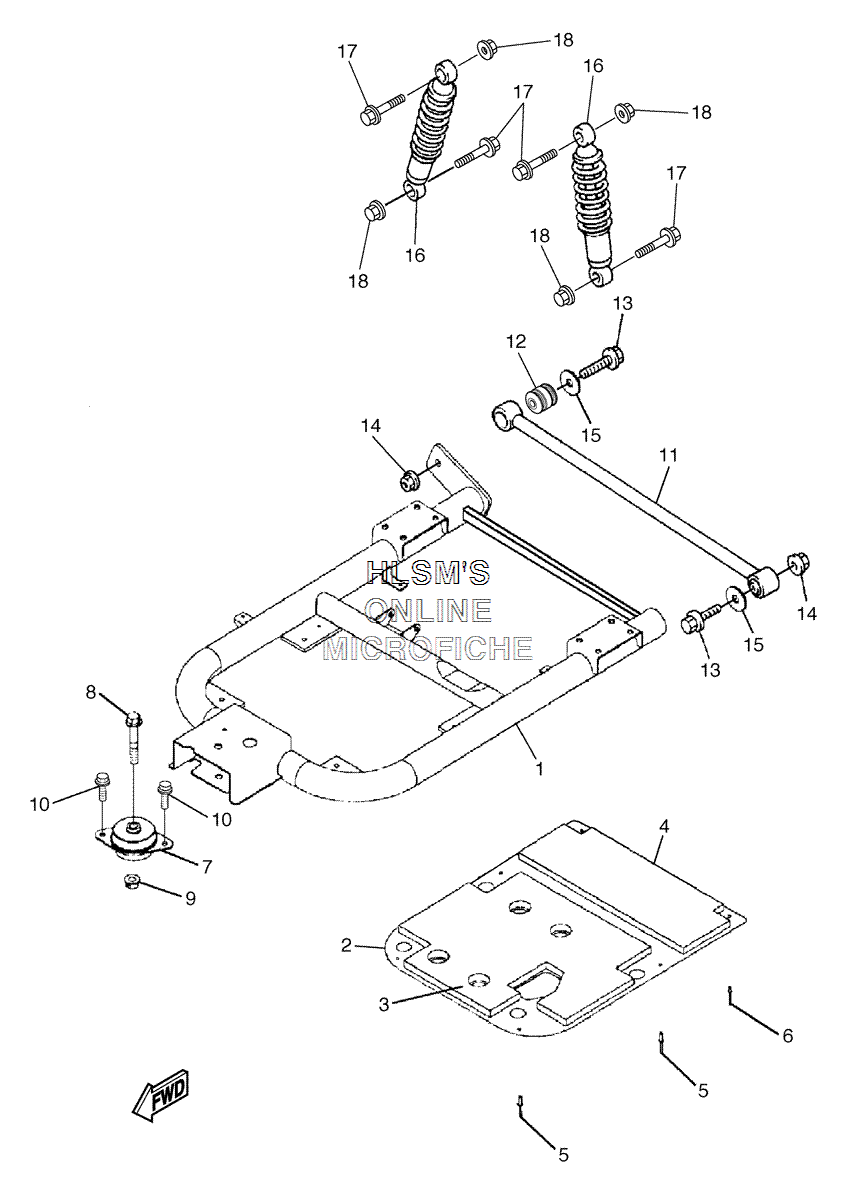

SUSPENSION - REAR ARM W/ SHOCK для Yamaha PRO HAULER 700 2WD - 2006 года выпуска`
-
№АртикулНазвание
-
1JU7-F2110-00-00 REAR ARM COMP.REAR ARM COMP.
-
2JN6-F2128-01-00 COVER, THRUST 1COVER, THRUST 1
-
3JN6-F211E-01-00 PANEL, INNER 1PANEL, INNER 1
-
4JN6-F211G-01-00 PANEL, INNER 2PANEL, INNER 2
-
590267-48850-00 RIVET, BLINDRIVET, BLIND
-
690267-40851-00 RIVET, BLINDRIVET, BLIND
-
7JN6-F2123-10-00 BUSH 1BUSH 1
-
890105-13864-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990179-13878-00 NUTNUT
-
109751P-10620-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
11JN6-F217G-00-00 ROD, CONNECTING 2ROD, CONNECTING 2
-
12JN6-F2124-10-00 BUSH 2BUSH 2
-
139581P-12065-00 BOLT, FLANGEBOLT, FLANGE
-
149560P-12200-00 NUT, FLANGENUT, FLANGE
-
1590201-128S4-00 WASHER, PLATEWASHER, PLATE
-
16JU7-F2210-00-00 SHOCK ABSORBER ASSY., REARSHOCK ABSORBER ASSY., REAR
-
1795807-10055-00 BOLT, FLANGEBOLT, FLANGE
-
1895607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
