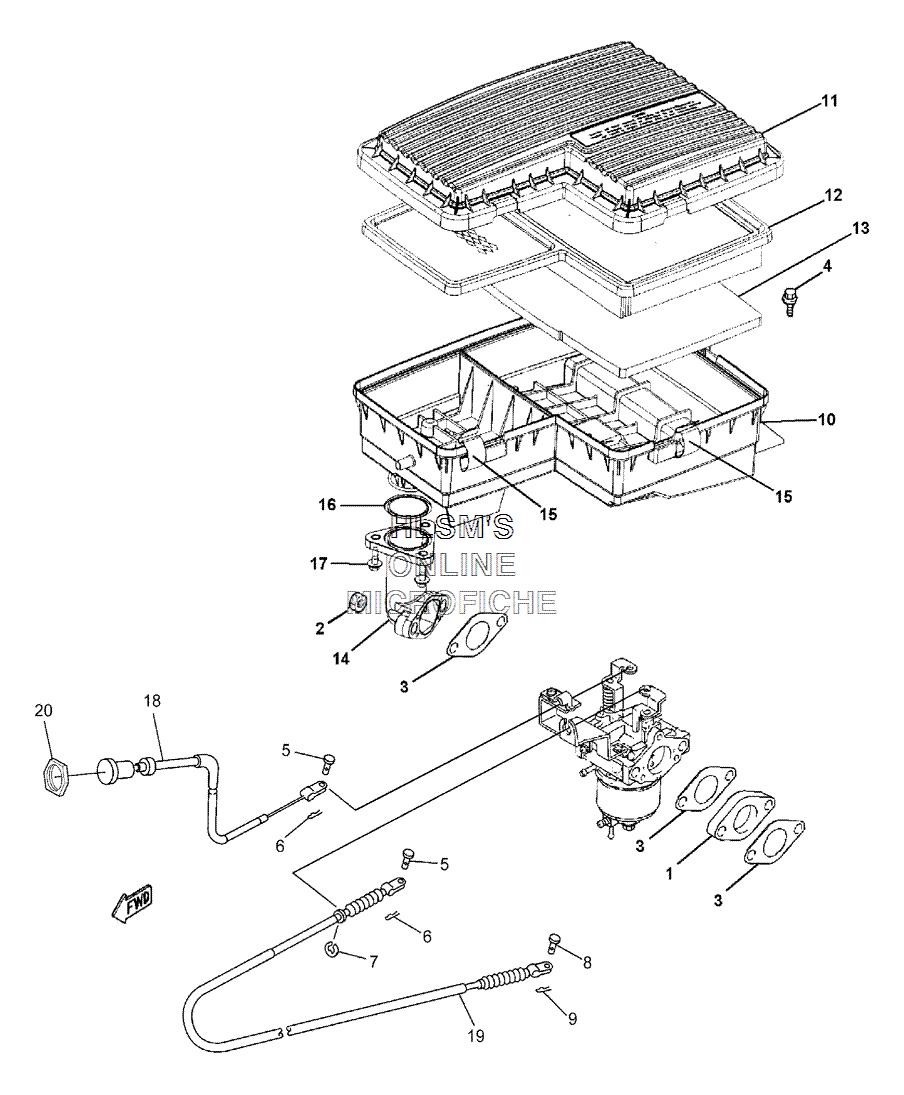

AIR CLEANER ASSY. W/ INTAKE для Yamaha PRO HAULER 700 2WD - 2006 года выпуска`
-
№АртикулНазвание
-
1JN6-13595-00-00 JOINT, CARBURETORJOINT, CARBURETOR
-
295707-08500-00 NUT, FLANGENUT, FLANGE
-
3JN6-13567-00-00 GASKETGASKET
-
490119-06838-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
591701-05010-00 PIN, CLEVISPIN, CLEVIS
-
690468-10049-00 CLIPCLIP
-
799001-07600-00 CIRCLIPCIRCLIP
-
891701-05010-00 PIN, CLEVISPIN, CLEVIS
-
990468-10049-00 CLIPCLIP
-
10JU0-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
11JU0-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
12JU0-E4450-00-00 ELEMENT ASSY., AIR CLEANERELEMENT ASSY., AIR CLEANER
-
13JN6-E445E-00-PC FILTER 1FILTER 1
-
14JU0-E3586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
155UH-E4424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
1693210-398D6-00 O-RINGO-RING
-
1790105-06862-00 BOLT, FLANGEBOLT, FLANGE
-
18JU0-F6331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
19JU0-F6312-00-00 CABLE, THROTTLE 2CABLE, THROTTLE 2
-
20JU0-F6333-00-00 NUT, CABLENUT, CABLE
