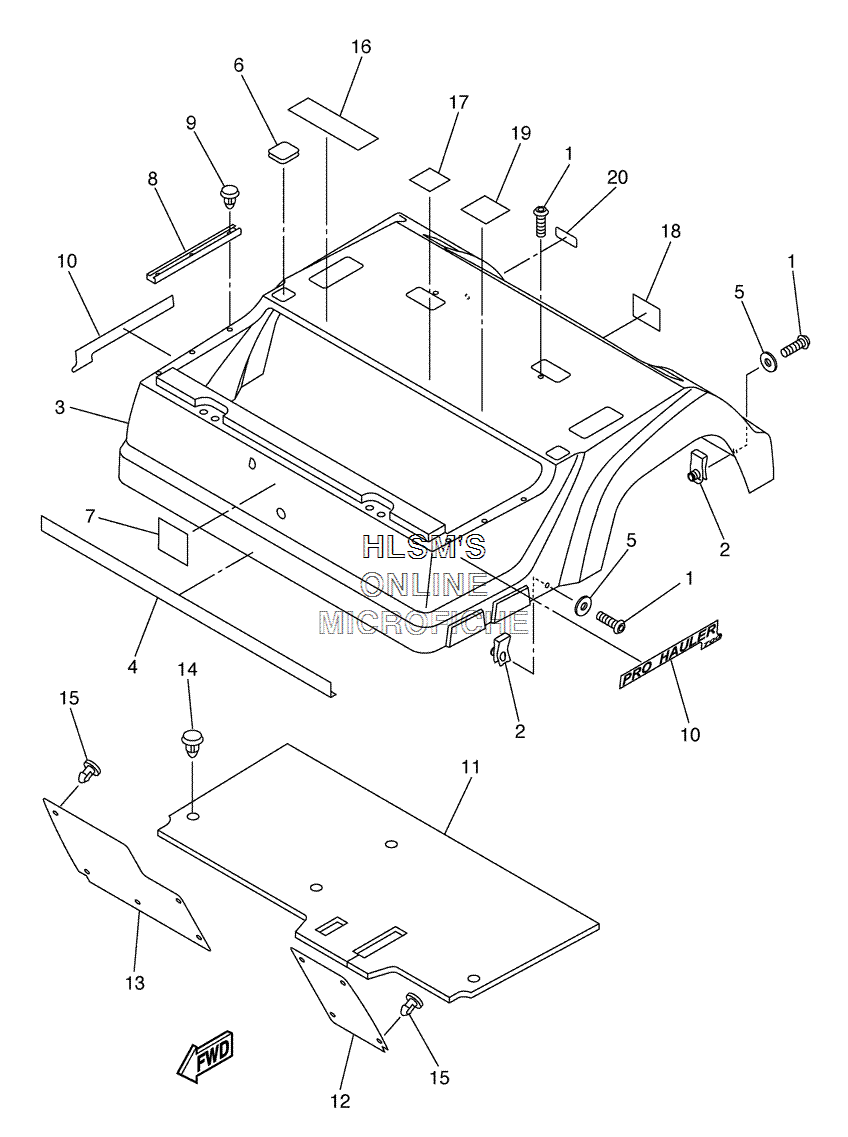

BODY 2 для Yamaha PRO HAULER 700 2WD - 2006 года выпуска`
-
№АртикулНазвание
-
190110-06836-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
290183-06811-00 NUT, SPRINGNUT, SPRING
-
3JW4-K8142-00-00 PANEL, REAR BODYPANEL, REAR BODY
-
4JN6-K824E-00-00 TRIM, REAR BODY 1TRIM, REAR BODY 1
-
590201-068R6-00 WASHER, PLATEWASHER, PLATE
-
6JU7-K8363-00-00 PROTECTORPROTECTOR
-
7JN3-K7741-00-00 INDICATOR 1INDICATOR 1
-
8JU7-K8425-00-00 SEAL, SEATSEAL, SEAT
-
990338-05834-00 PLUGPLUG
-
10JW4-F1781-00-00 EMBLEM 1EMBLEM 1
-
11JN6-K8233-01-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
12JN6-K8231-01-00 MAT, MAIN FLOOR 1MAT, MAIN FLOOR 1
-
13JN6-K8232-01-00 MAT, MAIN FLOOR 2MAT, MAIN FLOOR 2
-
1490269-08813-00 RIVET, PLASTIC MATRIVET, PLASTIC MAT
-
1590267-63047-00 RIVET, BLINDRIVET, BLIND
-
16JN3-K8297-10-00 PLATE, CAUTION 1PLATE, CAUTION 1
-
17JN3-K8299-10-00 PLATE, CAUTIONPLATE, CAUTION
-
18JU7-K7768-00-00 LABEL, WARNINGLABEL, WARNING
-
19JU7-F1696-00-00 LABEL, CAUTIONLABEL, CAUTION
-
20JJ3-K7765-00-00 LABEL, WARNING 5LABEL, WARNING 5
