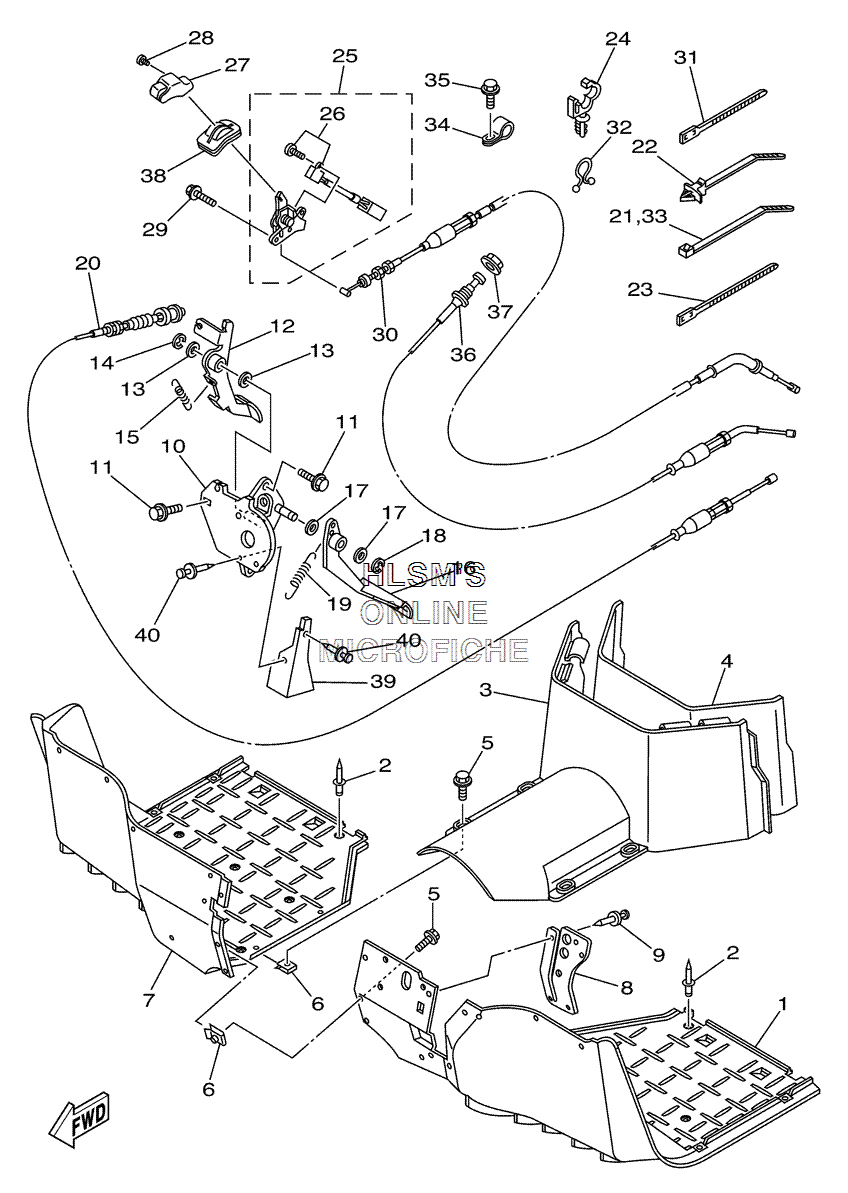

STAND W/ FOOTREST для Yamaha RHINO 660 - 2004 года выпуска`
-
№АртикулНазвание
-
15UG-F7411-00-00 FOOTREST 1FOOTREST 1
-
290267-48820-00 RIVET, BLINDRIVET, BLIND
-
35UG-F7413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
45UG-F8228-00-00 SEAL 2SEAL 2
-
590119-05001-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690183-05073-00 NUT, SPRINGNUT, SPRING
-
75UG-F7421-00-00 FOOTREST 2FOOTREST 2
-
85UG-F7286-00-00 COVER, DUSTCOVER, DUST
-
990269-06800-00 RIVETRIVET
-
105UG-F2548-00-00 BRACKET, PEDAL SUPPORTBRACKET, PEDAL SUPPORT
-
1195817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
125UG-F7801-00-00 ACCEL PEDAL ASSY.ACCEL PEDAL ASSY.
-
1390201-15797-00 WASHER, PLATEWASHER, PLATE
-
1493430-12008-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
1590506-20534-00 SPRING, TENSIONSPRING, TENSION
-
165UG-F7200-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
1790201-15797-00 WASHER, PLATEWASHER, PLATE
-
1893430-12008-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
1990506-20534-00 SPRING, TENSIONSPRING, TENSION
-
205UG-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
2190464-76800-00 CLAMPCLAMP
-
2290464-25800-00 CLAMPCLAMP
-
2390464-40825-00 CLAMPCLAMP
-
2490464-12830-00 CLAMPCLAMP
-
255UG-F5970-00-00 PARKING BRAKE COMP.PARKING BRAKE COMP.
-
265UG-H251S-00-00 ...SWITCH COMP....SWITCH COMP.
-
275UG-F5664-00-00 KNOB, PARKING LEVERKNOB, PARKING LEVER
-
285UG-F589H-00-00 SCREWSCREW
-
299581P-06016-00 BOLT, FLANGEBOLT, FLANGE
-
305UG-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
3190464-31827-00 CLAMPCLAMP
-
3290464-16039-00 CLAMPCLAMP
-
3390464-76800-00 CLAMPCLAMP
-
3490461-08802-00 CLAMPCLAMP
-
359582P-06016-00 BOLT, FLANGEBOLT, FLANGE
-
365UG-26331-00-00 CABLE, STARTER 1CABLE, STARTER 1
-
37JN6-F6333-10-00 NUTNUT
-
385UG-F6372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
395UG-G5158-00-00 PLATE, SPLASHPLATE, SPLASH
-
4090269-06800-00 RIVETRIVET
