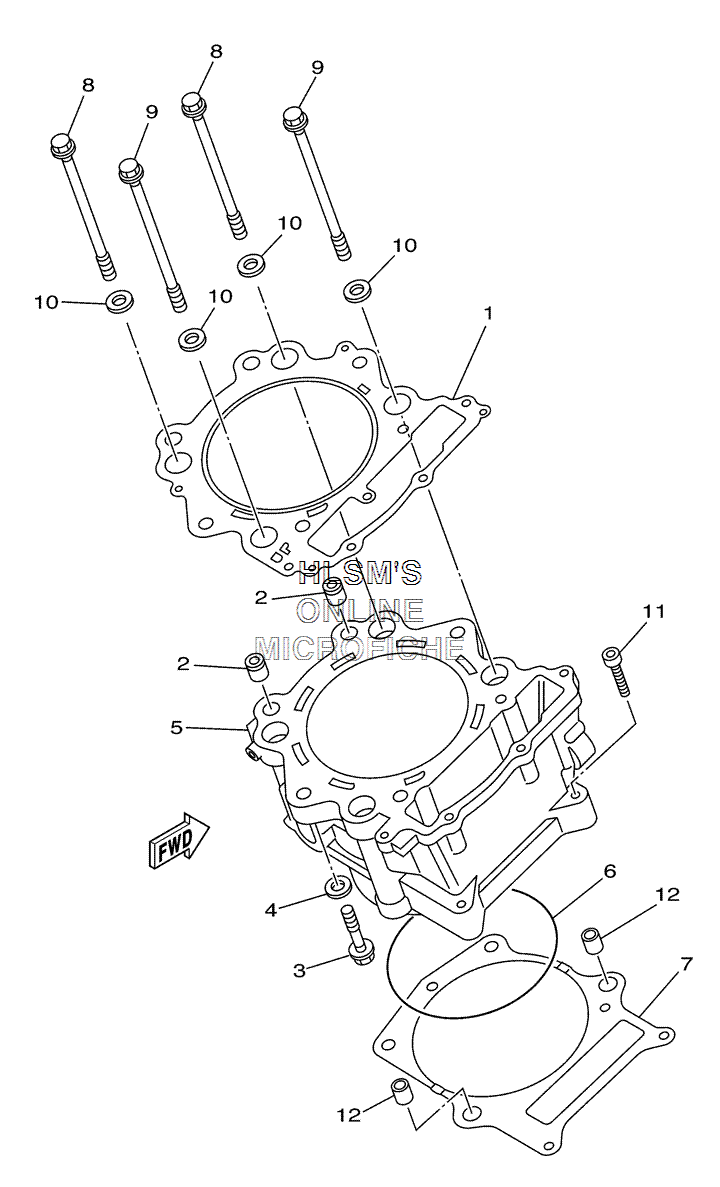

CYLINDER для Yamaha RHINO 660 - 2004 года выпуска`
-
№АртикулНазвание
-
13YF-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
293612-16254-00 PIN, DOWELPIN, DOWEL
-
390105-09647-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
490201-096J9-00 WASHER, PLATEWASHER, PLATE
-
55KM-11310-00-00 CYLINDERCYLINDER
-
693211-01467-00 O-RINGO-RING
-
75KM-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
890105-10649-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990105-10650-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1090201-101A4-00 WASHER, PLATEWASHER, PLATE
-
1191317-06040-00 BOLTBOLT
-
1299530-14016-00 PIN, DOWELPIN, DOWEL
