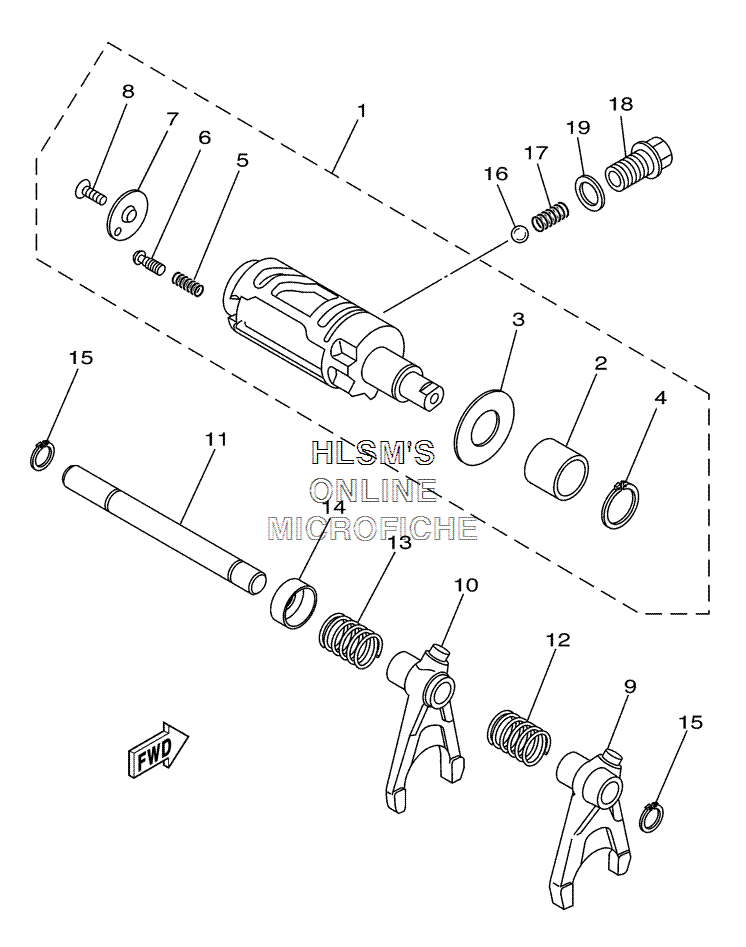

SHIFT CAM FORK для Yamaha RHINO 660 - 2004 года выпуска`
-
№АртикулНазвание
-
15UG-18540-00-00 SHIFT CAM ASSY.SHIFT CAM ASSY.
-
290387-2007S-00 ...COLLAR...COLLAR
-
390201-20015-00 ...WASHER, PLATE...WASHER, PLATE
-
493410-20038-00 ...CIRCLIP, S-TYPE...CIRCLIP, S-TYPE
-
590501-06022-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
65KM-18542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
74UN-18566-00-00 ...PLATE, SIDE 2...PLATE, SIDE 2
-
890149-05321-00 ...SCREW...SCREW
-
95KM-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
105KM-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
115KM-18531-01-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
1290501-12016-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1390501-16002-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
145KM-18323-00-00 CAP, SPRINGCAP, SPRING
-
1599009-12400-00 CIRCLIPCIRCLIP
-
1693503-08007-00 BALL 3/8BALL 3/8
-
1790501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1890105-14367-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1990430-14194-00 GASKETGASKET
