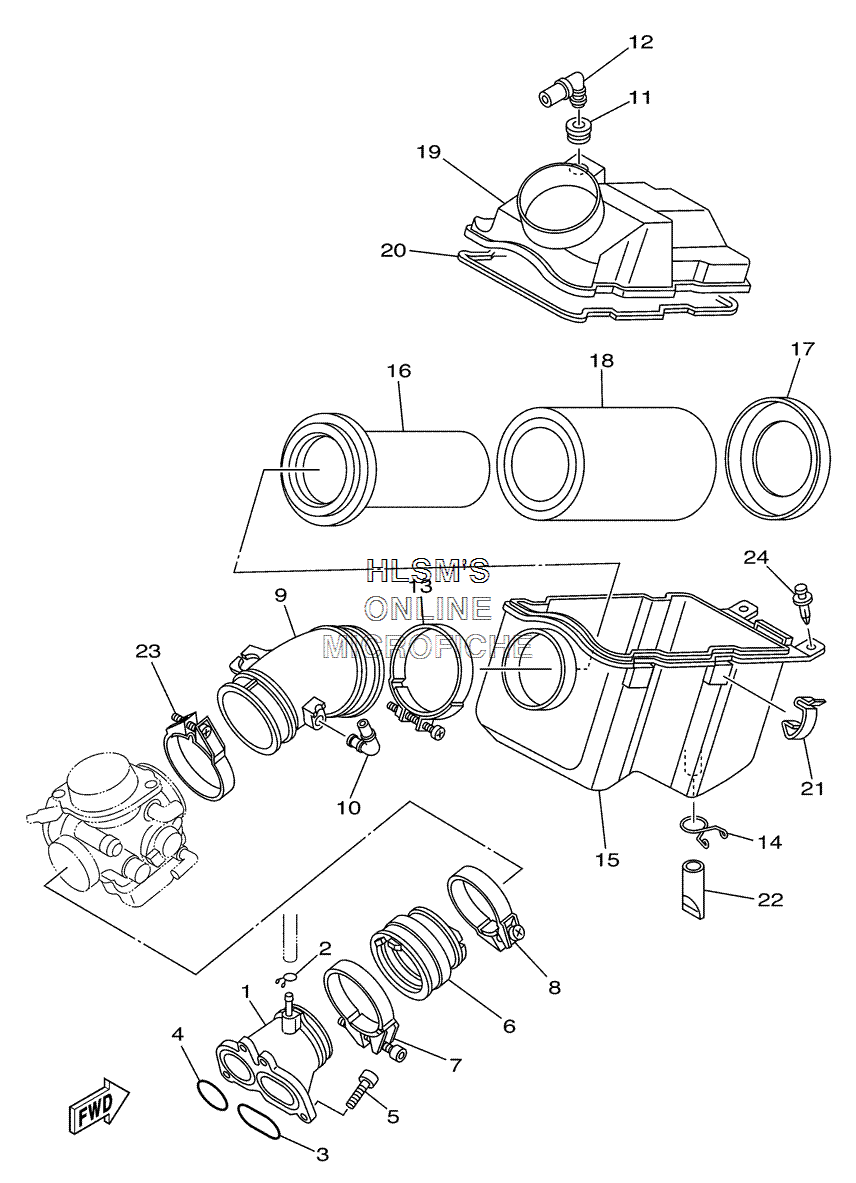

AIR CLEANER ASSY. W/ INTAKE для Yamaha RHINO 660 - 2004 года выпуска`
-
№АртикулНазвание
-
15UG-13586-00-00 JOINT, CARBURETOR 1JOINT, CARBURETOR 1
-
290467-08017-00 CLIP, SCISSORCLIP, SCISSOR
-
393210-44545-00 O-RINGO-RING
-
493210-321A8-00 O-RINGO-RING
-
591317-06020-00 BOLTBOLT
-
65KM-13596-00-00 JOINT, CARBURETOR 2JOINT, CARBURETOR 2
-
790450-65001-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
890460-59211-00 CLAMP, HOSECLAMP, HOSE
-
95UG-E4453-00-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1031A-14419-00-00 PIPEPIPE
-
1131A-14435-00-00 GROMMETGROMMET
-
125KM-14419-00-00 PIPEPIPE
-
1390460-75020-00 CLAMP, HOSECLAMP, HOSE
-
145UH-E4438-00-00 CLIP, DRAIN CLEANERCLIP, DRAIN CLEANER
-
155UG-E4411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
165UG-E4458-00-00 GUIDEGUIDE
-
175UG-E4468-00-00 PLATE, ELEMENT FITTINGPLATE, ELEMENT FITTING
-
185UG-E4451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
195UG-E4412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
205UG-E4462-00-00 SEALSEAL
-
215UH-E4424-00-00 CLIP, CAP FITTINGCLIP, CAP FITTING
-
225UG-E4769-00-00 PIPE, DRAINPIPE, DRAIN
-
2390450-67001-00 HOSE CLAMP ASSY.HOSE CLAMP ASSY.
-
2490269-08813-00 RIVET, PLASTICRIVET, PLASTIC
