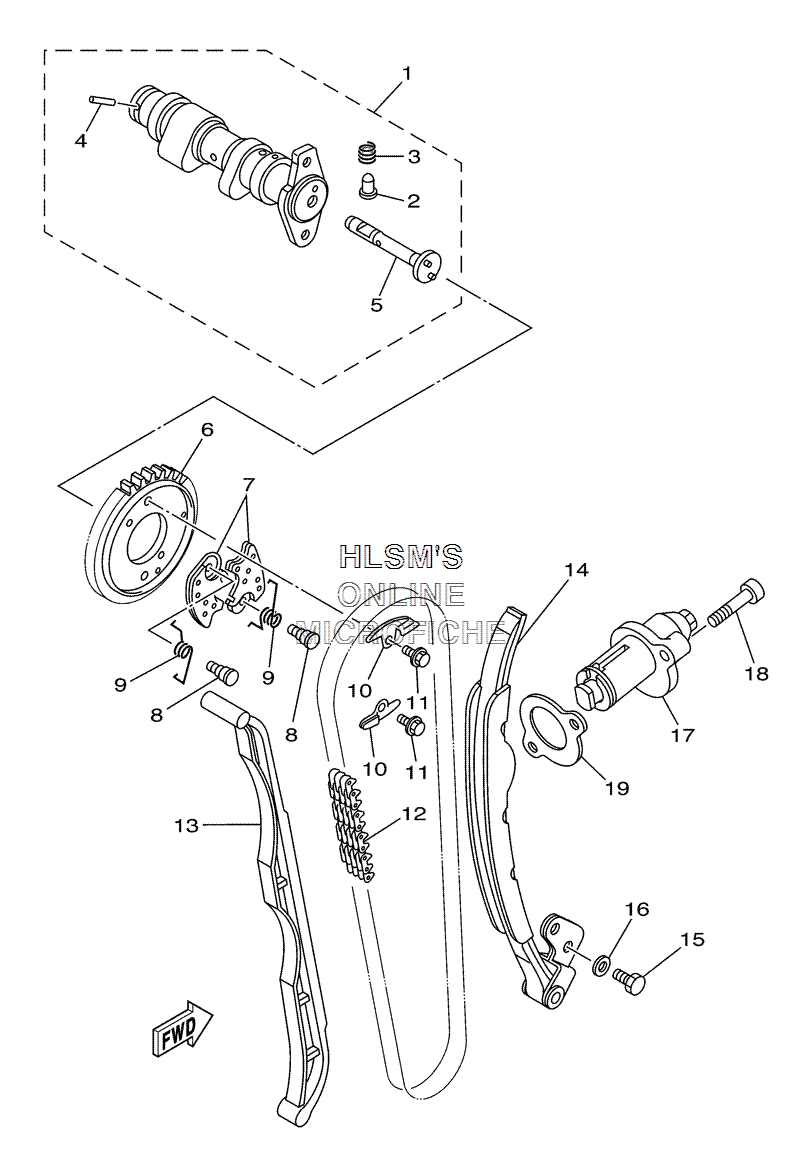

CAMSHAFT W/ CHAIN для Yamaha RHINO 660 HARDWOODS - 2004 года выпуска`
-
№АртикулНазвание
-
15KM-12170-00-00 CAMSHAFT ASSY. 1CAMSHAFT ASSY. 1
-
23YF-12284-00-00 ...PIN, DECOMPRESSION LEVER...PIN, DECOMPRESSION LEVER
-
390501-05001-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
493603-21180-00 ...PIN, DOWEL...PIN, DOWEL
-
53YF-12290-00-00 ...LEVER, DECOMPRESSION SPRING...LEVER, DECOMPRESSION SPRING
-
65KM-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
73YF-12288-00-00 CAM, DECOMPRESSIONCAM, DECOMPRESSION
-
83YF-12247-00-00 SHAFT, TENSIONERSHAFT, TENSIONER
-
95KM-12216-00-00 SPRINGSPRING
-
103YF-12233-01-00 PLATE, GUIDE STOPPER 1PLATE, GUIDE STOPPER 1
-
1190105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
1294591-46126-00 CHAIN (92RH2010J-126M)CHAIN (92RH2010J-126M)
-
135KM-12231-10-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
145KM-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1597027-06016-00 BOLTBOLT
-
1692907-06600-00 WASHER, PLATEWASHER, PLATE
-
175KM-12210-00-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
1890110-06039-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
194DW-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
