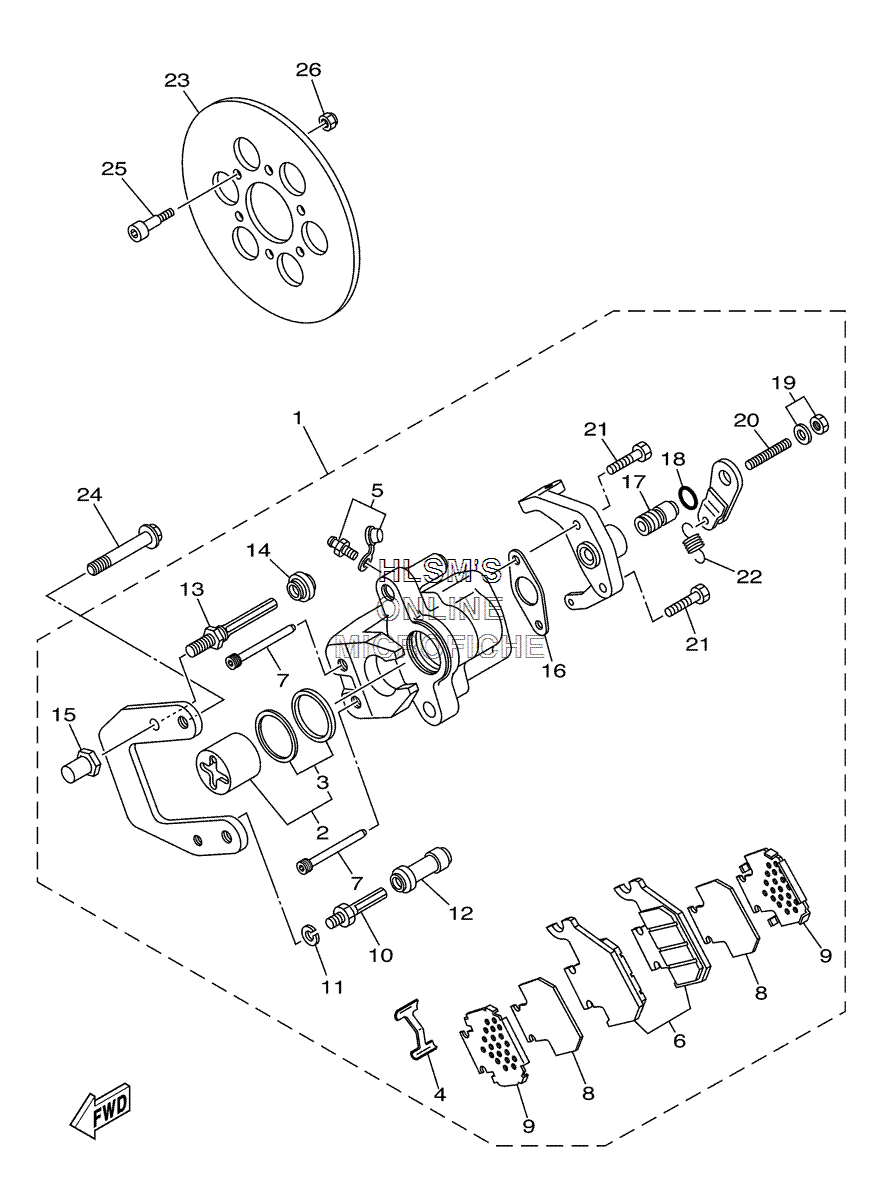

BRAKE - REAR CALIPER для Yamaha RHINO 660 HARDWOODS - 2004 года выпуска`
-
№АртикулНазвание
-
15UG-2580V-00-00 CALIPER ASSY., REAR 1CALIPER ASSY., REAR 1
-
25UG-W0057-00-00 ...PISTON ASSY., CALIPER...PISTON ASSY., CALIPER
-
33GD-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
44GY-25919-50-00 ...SUPPORT, PAD...SUPPORT, PAD
-
51UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
65UG-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
75GH-25924-00-00 ...PIN, PAD...PIN, PAD
-
85UG-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
95GH-25828-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
101UY-25926-51-00 ...BOLT...BOLT
-
111UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
121UY-25937-51-00 ...BOOT 2...BOOT 2
-
133JD-25926-00-00 ...BOLT...BOLT
-
143JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
153JD-25961-00-00 ...NUT...NUT
-
165UG-25898-00-00 ...GASKET...GASKET
-
175UG-25978-00-00 ...SHAFT...SHAFT
-
185UG-25975-00-00 ...RUBBER, BUSHING...RUBBER, BUSHING
-
195UG-25973-00-00 ...NUT...NUT
-
205UG-25972-00-00 ...ADJUSTING BOLT...ADJUSTING BOLT
-
215UG-25833-00-00 ...BOLT, FITTING...BOLT, FITTING
-
225UG-25977-00-00 ...SPRING, RETURN...SPRING, RETURN
-
235UG-F5831-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
2490105-10402-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2590109-06038-00 BOLTBOLT
-
2695617-06100-00 NUT, UNUT, U
