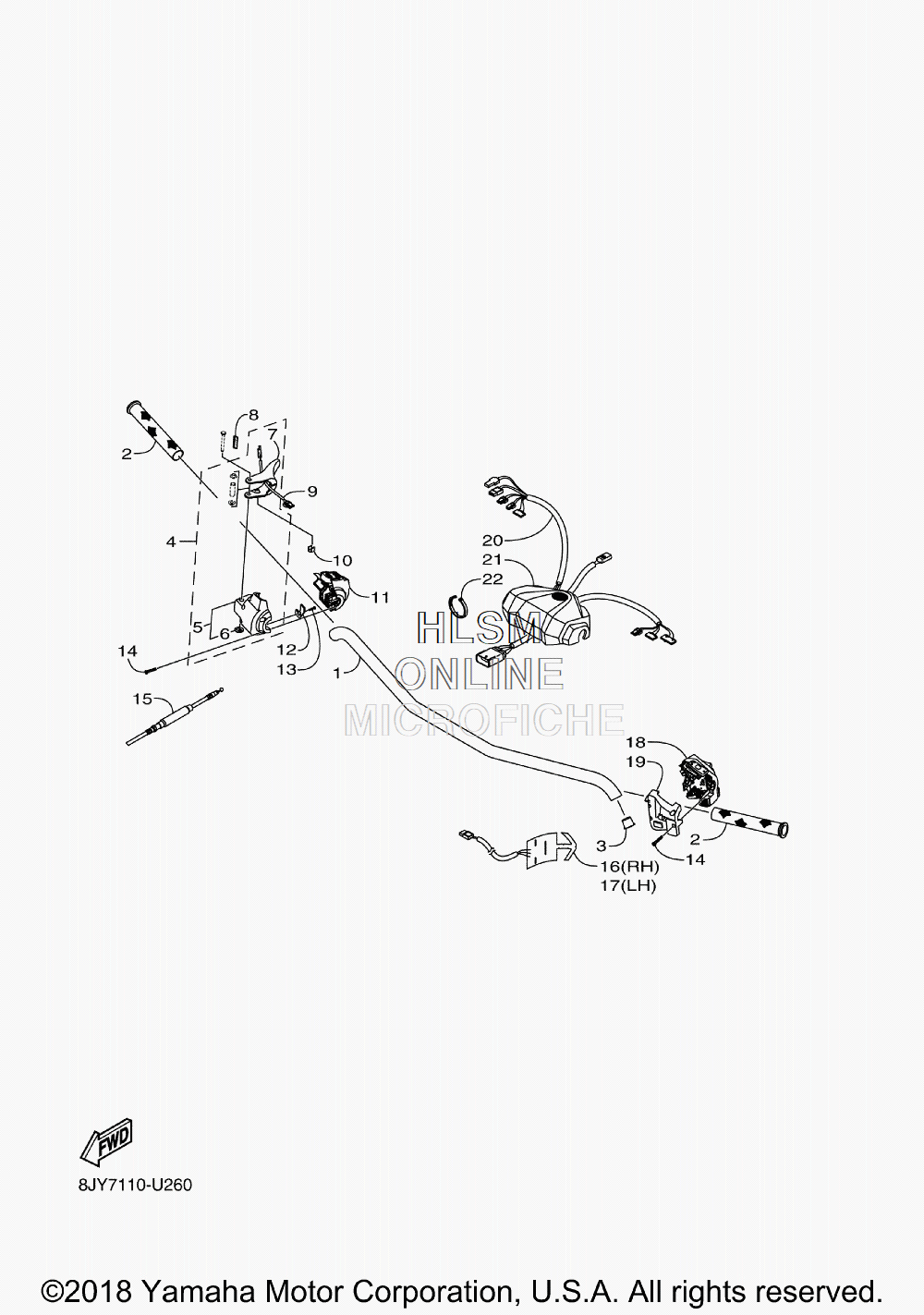

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha SRVIPER L TX - 2019 года выпуска`
-
№АртикулНазвание
-
18LJ-F6111-00-00 HANDLEBARHANDLEBAR
-
28JR-F6241-00-00 GRIPGRIP
-
38JR-F3856-10-00 NUTNUT
-
48JP-H2720-00-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
58JP-H2620-00-00 ...LEVER HOLDER ASSY (RIGHT)...LEVER HOLDER ASSY (RIGHT)
-
68JP-RA346-00-00 ......NUT, SPRING......NUT, SPRING
-
78JP-G2138-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
88JP-H233W-00-00 INSU.INSU.
-
98JP-H2970-00-00 THUMB WARMER ASSYTHUMB WARMER ASSY
-
108JP-RAC10-00-00 CLIP, 1CLIP, 1
-
118JP-H2710-00-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
128JP-RAC11-00-00 CLIP, 2CLIP, 2
-
138JP-RA285-00-00 SCREWSCREW
-
148JP-RA286-00-00 SCREW, TAPPINGSCREW, TAPPING
-
158JP-F6311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
168JP-F626A-30-00 GRIP, WARMERGRIP, WARMER
-
178JP-F626A-20-00 GRIP, WARMERGRIP, WARMER
-
188JP-H3972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
198JP-H3973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
208JP-H2318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
218JP-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
228JM-RAB01-00-00 CLAMP, 2 (8 INCH) (OPT)CLAMP, 2 (8 INCH) (OPT)
-
228JP-RAB03-00-00 CLAMP, 1 (4-INCH) (OPT)CLAMP, 1 (4-INCH) (OPT)
