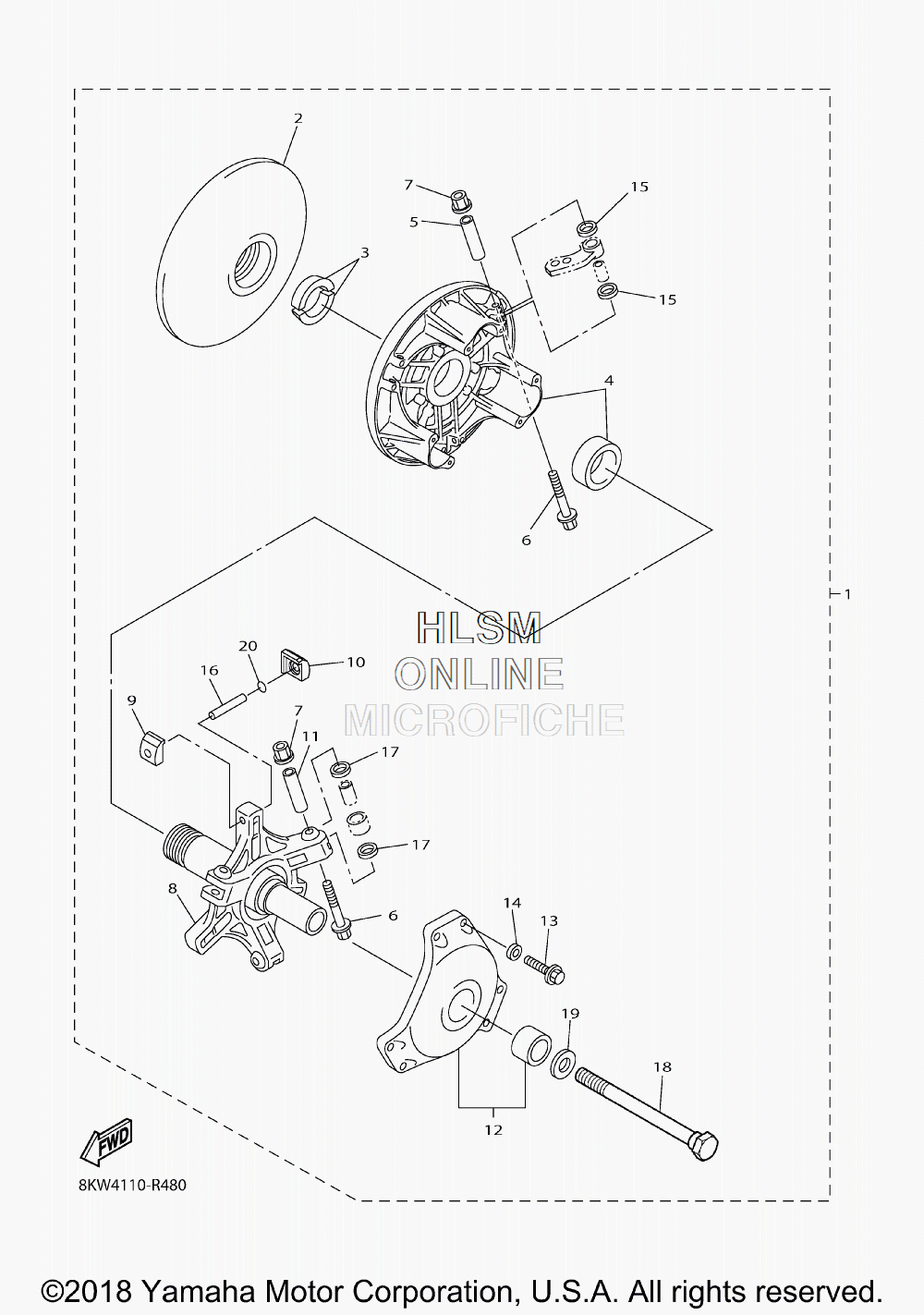

CLUTCH - REPAIR KIT (OPTION) для Yamaha SRVIPER L TX - 2019 года выпуска`
-
№АртикулНазвание
-
18ES-W176G-20-00 CLUTCH REPAIR KIT (OPT)CLUTCH REPAIR KIT (OPT)
-
28FA-17611-01-00 ...SHEAVE, PRIMARY FIXED...SHEAVE, PRIMARY FIXED
-
38V0-17639-00-00 ...STOPPER...STOPPER
-
48FP-17620-00-00 ...PRIMARY SLIDING SHEAVE COMP....PRIMARY SLIDING SHEAVE COMP.
-
590387-0514T-00 ...COLLAR...COLLAR
-
690105-05644-00 ...BOLT, FLANGE...BOLT, FLANGE
-
795607-05200-00 ...NUT, S/L FLANGE...NUT, S/L FLANGE
-
88ES-17640-02-00 ...SPIDER COMPLETE...SPIDER COMPLETE
-
98BW-17653-00-00 ...SLIDER...SLIDER
-
108ES-17653-00-00 ...SLIDER...SLIDER
-
1190387-0514U-00 ...COLLAR...COLLAR
-
128DF-17630-00-00 ...PRIMARY SHEAVE CAP COMP....PRIMARY SHEAVE CAP COMP.
-
1397017-06030-00 ...BOLT...BOLT
-
1492907-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
1590202-08204-00 ...WASHER, PLATE...WASHER, PLATE
-
1691609-50032-00 ...PIN, SPRING...PIN, SPRING
-
1790202-09227-00 ...WASHER, PLATE...WASHER, PLATE
-
188V0-17647-10-00 ...BOLT (L=156.5MM)...BOLT (L=156.5MM)
-
1992907-16100-00 ...WASHER...WASHER
-
208ES-17655-00-00 ...DAMPER, SLIDER...DAMPER, SLIDER
