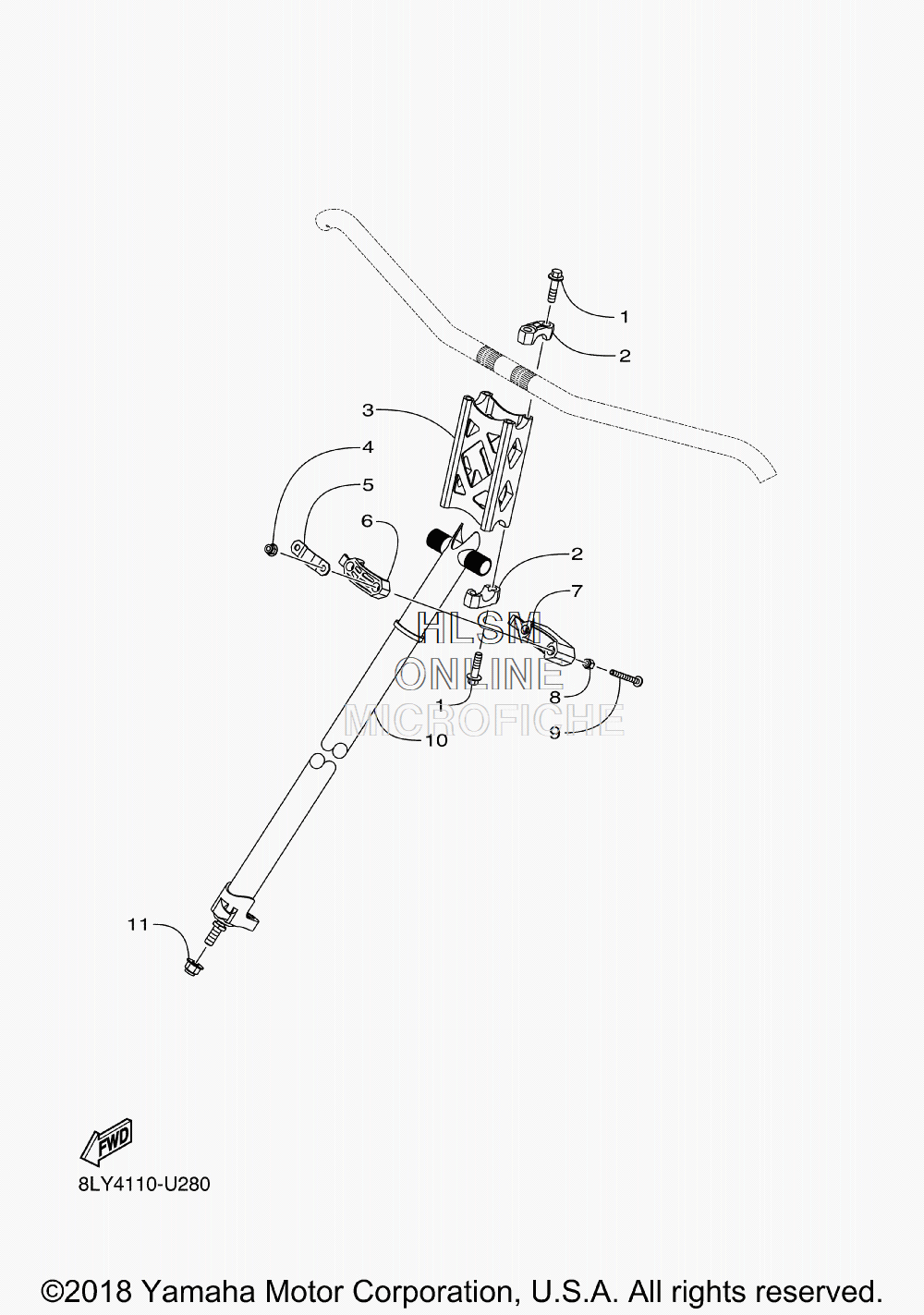

STEERING 2 для Yamaha SIDEWINDER SRX LE - 2019 года выпуска`
-
№АртикулНазвание
-
18JP-RA188-00-00 BOLT, FLANGEBOLT, FLANGE
-
28JP-F3814-10-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
38JP-F381B-10-00 JOINTJOINT
-
48JM-RA322-00-00 NUT, FLANGE M6-1.0NUT, FLANGE M6-1.0
-
58JP-F3872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
68KG-F3812-00-00 BEARING, STEERINGBEARING, STEERING
-
78KG-F3812-10-00 BEARING, STEERINGBEARING, STEERING
-
88JP-RA379-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
98JP-RA299-00-00 SCREW, 10SCREW, 10
-
108JP-F3813-01-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
118JP-RA378-01-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
