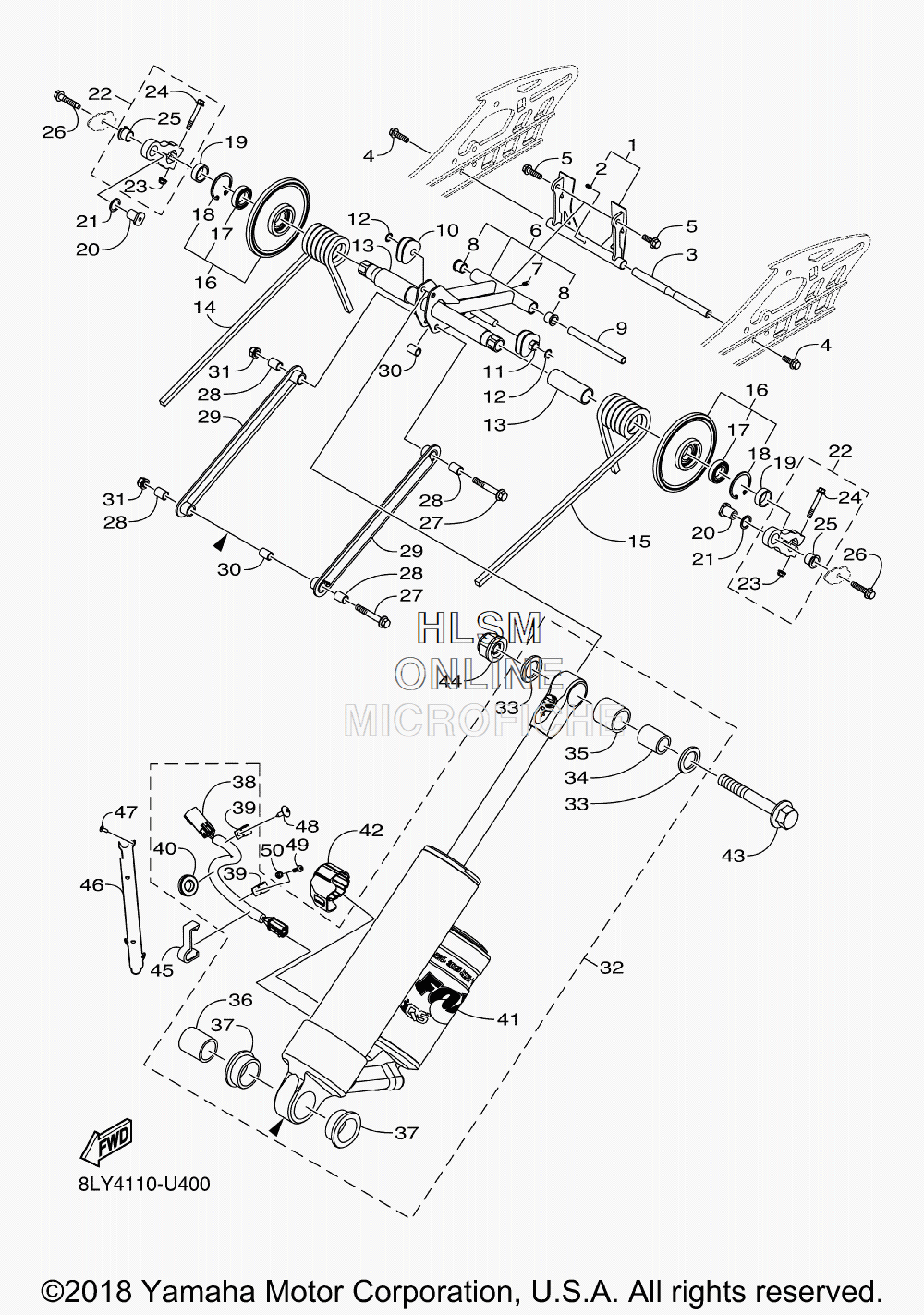

PIVOT ARM W/ SHOCK 2 для Yamaha SIDEWINDER SRX LE - 2019 года выпуска
-
№АртикулНазвание
-
18JP-G7417-00-00 BRACKET 3BRACKET 3
-
28JP-RAL01-00-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
38JP-G7488-10-00 SHAFT 6SHAFT 6
-
48JP-RA199-00-00 BOLT, FLANGEBOLT, FLANGE
-
58JP-RA1A1-00-00 BOLT, FLANGEBOLT, FLANGE
-
68JP-G7332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
78JP-RAL01-00-00 ...NIPPLE, GREASE 1...NIPPLE, GREASE 1
-
88JP-RA808-00-00 ...BUSH...BUSH
-
98JP-G7487-00-00 SHAFT 5SHAFT 5
-
108JM-G7448-00-00 HOOK 3HOOK 3
-
118JM-G7447-00-00 HOOK 2HOOK 2
-
128JM-RA315-00-00 NUTNUT
-
138JP-G7445-00-00 PROTECTORPROTECTOR
-
148JX-G7474-20-00 SPRING, REAR 2SPRING, REAR 2
-
158JX-G7473-20-00 SPRING, REAR 1SPRING, REAR 1
-
168JX-G7312-00-00 WHEEL, SUSPENSION 2WHEEL, SUSPENSION 2
-
178JP-RAG03-00-00 ...BEARING...BEARING
-
188JP-RAH04-00-00 ...CIRCLIP, 2...CIRCLIP, 2
-
198JP-RA727-00-00 COLLARCOLLAR
-
208JP-G7368-00-00 NUTNUT
-
218JP-RA436-00-00 WASHERWASHER
-
228LJ-G7361-00-00 ARM, REAR PIVOT 1ARM, REAR PIVOT 1
-
238JM-RA301-00-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
248JP-RA191-00-00 ...BOLT, FLANGE...BOLT, FLANGE
-
258JP-RA813-00-00 ...BUSH...BUSH
-
268JP-RA196-00-00 BOLT, FLANGEBOLT, FLANGE
-
278JP-RA1B4-00-00 BOLT, FLANGEBOLT, FLANGE
-
288JP-RA735-00-00 COLLAR, 19COLLAR, 19
-
298JX-G7494-00-00 ROD, RELAYROD, RELAY
-
308JP-RA724-00-00 COLLAR, 12COLLAR, 12
-
318JP-RA378-01-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
328MY-G7480-40-00 SHOCK ABSORBERSHOCK ABSORBER
-
338KN-RA459-20-00 ...WASHER, SEAT 1...WASHER, SEAT 1
-
348JW-RA732-10-00 ...COLLAR, 15...COLLAR, 15
-
358KN-RA819-30-00 ...BUSH, SHOCK...BUSH, SHOCK
-
368JP-RA732-00-00 ...COLLAR, 15...COLLAR, 15
-
378JP-RA817-00-00 ...BUSH, 8...BUSH, 8
-
388MY-H2509-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
398JP-RAB25-00-00 ...CLAMP, 23...CLAMP, 23
-
408MY-G8176-00-00 ...GROMMET...GROMMET
-
418KP-F151J-10-00 ...LABEL 6...LABEL 6
-
428MY-G7716-00-00 COVERCOVER
-
438JP-RA1A2-10-00 BOLT, FLANGEBOLT, FLANGE
-
448JP-RA378-01-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
458MY-RAC00-00-00 CLIP, 1CLIP, 1
-
468MY-H2589-00-00 PROTECTER, WIRE HARNESSPROTECTER, WIRE HARNESS
-
478JP-RA520-00-00 RIVET, 11RIVET, 11
-
488KC-RA290-00-00 SCREWSCREW
-
498JP-RA251-00-00 SCREWSCREW
-
508JP-RA370-00-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
