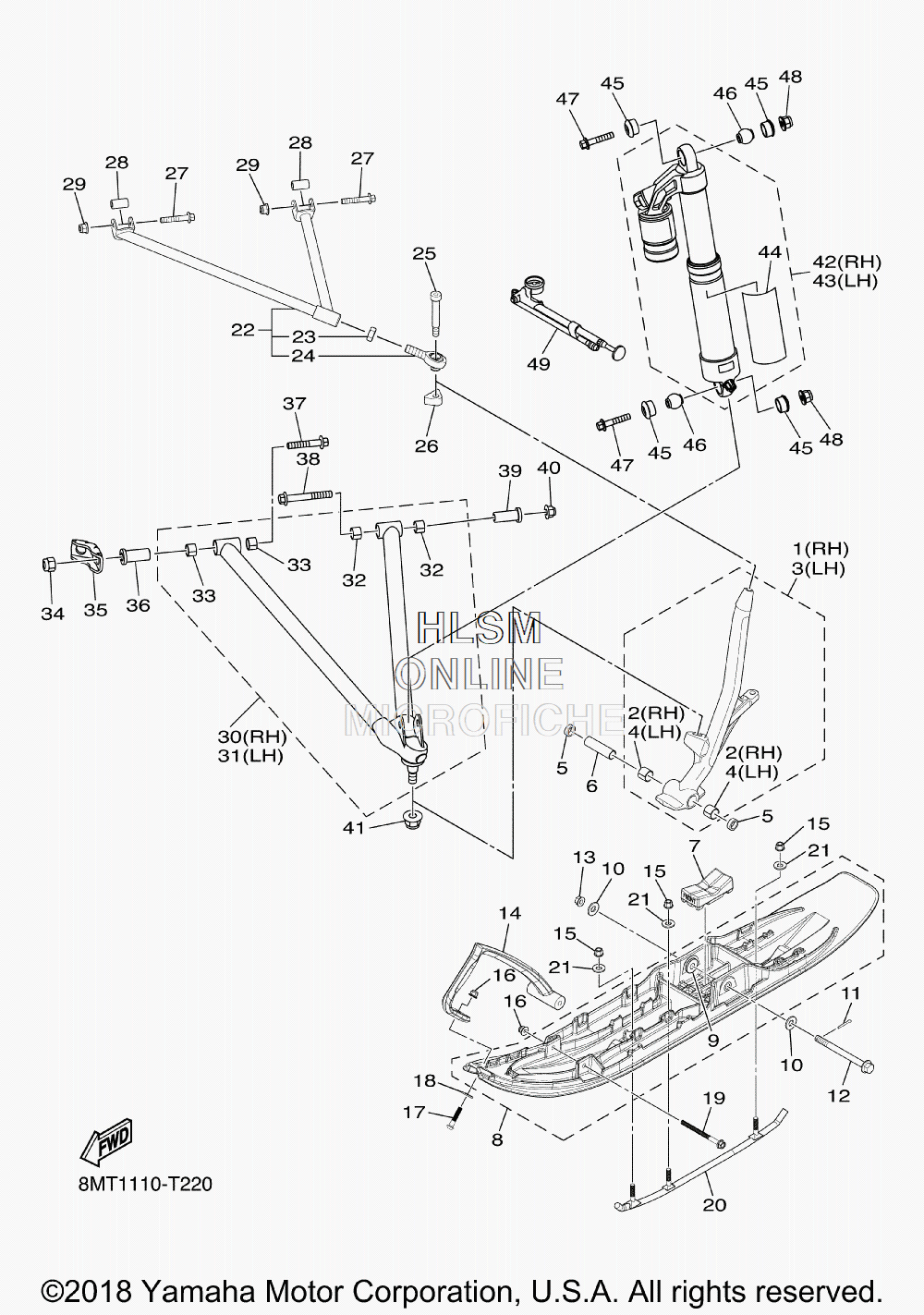

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SIDEWINDER M TX LE 153 - 2018 года выпуска`
-
№АртикулНазвание
-
18KU-F3521-80-00 KNUCKLE, STEERING 2KNUCKLE, STEERING 2
-
28JP-RA806-00-00 ...BUSH, 12DU12...BUSH, 12DU12
-
38KU-F3511-80-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
48JP-RA806-00-00 ...BUSH, 12DU12...BUSH, 12DU12
-
58JP-RA718-00-00 COLLAR, 6COLLAR, 6
-
68JP-RA731-00-00 COLLAR, 75COLLAR, 75
-
78KC-F3743-00-00 STOPPER 1STOPPER 1
-
88KC-F3710-00-00 SKI COMP 1SKI COMP 1
-
98EX-F3754-00-00 ...COLLAR 1...COLLAR 1
-
1090201-10043-00 WASHER, PLATEWASHER, PLATE
-
1191401-20020-00 PIN, COTTERPIN, COTTER
-
1290105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1395602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
148KC-F3712-10-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
158KC-RA358-00-00 NUT, FLANGE LOCKING 3/8-16NUT, FLANGE LOCKING 3/8-16
-
168KC-F3778-00-00 NUTNUT
-
178KC-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
188KC-F3737-00-00 WASHER 1WASHER 1
-
198KC-F3756-00-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
208KC-F3732-00-00 RUNNER 2RUNNER 2
-
218KC-RA443-00-00 WASHER, 10.98X28.00X1.6WASHER, 10.98X28.00X1.6
-
228KC-F354A-00-00 ARM, FRONT UPPER (WHITE)ARM, FRONT UPPER (WHITE)
-
238KU-F3778-00-00 ...NUT...NUT
-
248KU-F3841-00-00 ...JOINT, UNIVERSAL 1...JOINT, UNIVERSAL 1
-
258KU-F3767-00-00 BOLTBOLT
-
268KU-F3856-00-00 NUTNUT
-
278KG-RA190-00-00 BOLT, FLANGE M8X1.25X45BOLT, FLANGE M8X1.25X45
-
288KG-RA720-00-00 COLLAR, 8COLLAR, 8
-
298KG-RA301-00-00 NUT, SELF-LOCKING M8-1.25NUT, SELF-LOCKING M8-1.25
-
308KC-F358A-00-00 ARM, FRONT LOWER (RIGHT HAND) (WHITE)ARM, FRONT LOWER (RIGHT HAND) (WHITE)
-
318KC-F357A-00-00 ARM, FRONT LOWER (LEFT HAND) (WHITE)ARM, FRONT LOWER (LEFT HAND) (WHITE)
-
328JP-RA807-00-00 ...BUSH, 10DU10...BUSH, 10DU10
-
338JP-RA811-00-00 ...BUSH, 1815DU...BUSH, 1815DU
-
348JP-RA361-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
358JP-F3543-00-00 ARM, 1ARM, 1
-
368JP-RA721-00-00 COLLAR, 9COLLAR, 9
-
378JP-RA1A7-00-00 BOLT, FLANGE M12X1.25X76BOLT, FLANGE M12X1.25X76
-
388JP-RA194-20-00 BOLT, FLANGE M10-1.25X250BOLT, FLANGE M10-1.25X250
-
398JP-RA719-00-00 COLLAR, 7COLLAR, 7
-
408JP-RA360-00-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
418JP-RA362-00-00 NUT, FLANGE LOCKING M12X1.25NUT, FLANGE LOCKING M12X1.25
-
428MT-F377A-00-00 ABSORBER ASSY 2ABSORBER ASSY 2
-
438MT-F376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
448MT-F151F-00-00 ...LABEL 3...LABEL 3
-
458KG-RA817-00-00 BUSH, 8BUSH, 8
-
468KG-RA724-00-00 COLLAR, 12COLLAR, 12
-
478KG-RA1B9-00-00 BOLT, FLANGE M8X50BOLT, FLANGE M8X50
-
488JP-RA360-10-00 NUT, FLANGE LOCKINGNUT, FLANGE LOCKING
-
498KN-F3703-00-00 ADJUSTERADJUSTER
